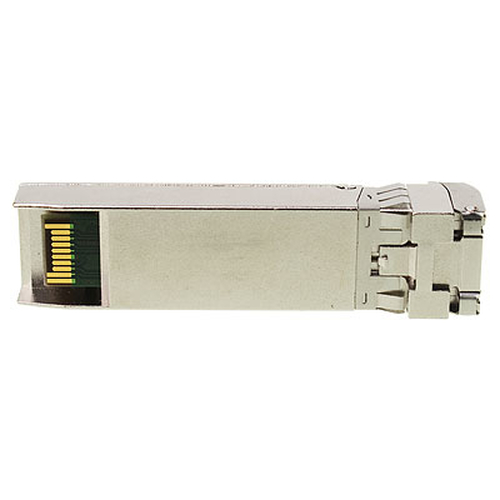

HP X170 1G SFP LC LH70 1470nm

HP X170 1G SFP LC LH70 1470nm

Model X170 1G SFP LC LH70 1470nmPart no. JD113-61101

23 specifications
  • Speed1000 Mbit/s
  • SFP transceiver typeFiber optic
  • Hot-Plug supportYes
  • Operating temperature (T-T)0 - 70 °C
  • Width13.4 mm
See all specifications

Overview

Speed
1000 Mbit/s
SFP transceiver type
Fiber optic
Hot-Plug support
Yes
Operating temperature (T-T)
0 - 70 °C
Width
13.4 mm
Brand
HP
Model
X170 1G SFP LC LH70 1470nm
Part number
JD113-61101
Also known as
HP X170 1G SFP LC LH70 1470nm network transceiver module Fiber optic 1000 Mbit/s

Specifications

23 specifications in 6 groups

Performance

SFP transceiver typeFiber optic
Maximum data transfer rate1000 Mbit/s
Interface typeSFP
Single-mode fiber (SMF) supportedYes
Fiber optic connectorLC
Fiber cable diameters supported (core/cladding)9/125 µm
SFP transceiver standardLH
Maximum transfer distance70000 m
Wavelength1470 nm
Cabling technology1000BASE-LH70
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-XYes

Features

Hot-Plug supportYes
Compatible productsHP 8800

Certificates

CertificationMSA

Operational conditions

Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)10 - 80%
Storage relative humidity (H-H)10 - 85%

Weight & dimensions

Width13.4 mm
Depth56.5 mm
Height8.5 mm

Packaging content

Quantity per pack1 pc(s)
