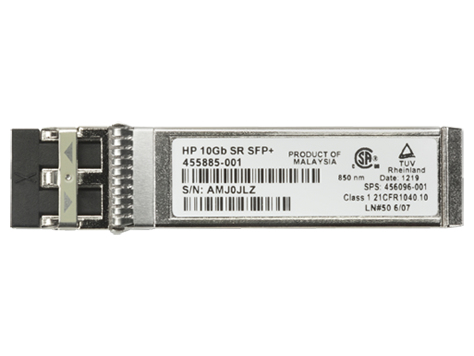

HP 10GBE SFP+ SR 1st
Model 10GBE SFP+ SR 1stPart no. C3N49AV
21 specifications
- Speed10000 Mbit/s
- SFP transceiver typeFiber optic
- Hot-Plug supportYes
- Operating temperature (T-T)0 - 70 °C
- Width13.4 mm
Overview
- Speed
- 10000 Mbit/s
- SFP transceiver type
- Fiber optic
- Hot-Plug support
- Yes
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 13.4 mm
- Brand
- HP
- Category
- Network Transceiver Module
- Model
- 10GBE SFP+ SR 1st
- Part numbers
- C3N49AV, D5H17AV, G8U10AV, G8U78AV, G8U52AV
- Also known as
- HP 10GBE SFP+ SR 1st network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm
Specifications
21 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| SFP transceiver standard | SR |
| Wavelength | 850 nm |
| Cabling technology | 10GBASE-SR |
| Duplex system | Full |
| Auto MDI/MDI-X | Yes |
Features
| Specification | Value |
|---|---|
| Hot-Plug support | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | MSA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13.4 mm |
| Depth | 56.5 mm |
| Height | 8.5 mm |
