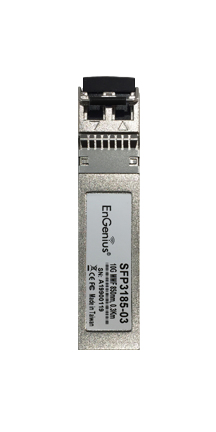

SFP3185-03 SFP+ Module
10G Multi-Mode Fiber 850nm 0.3km
Model SFP3185-03EAN 655216009783
16 specifications
- Speed10000 Mbit/s
- Weight25 g
- ColourSilver
- SFP transceiver typeFiber optic
- Operating temperature (T-T)0 - 40 °C
- Width13.9 mm
Overview
- Speed
- 10000 Mbit/s
- Weight
- 25 g
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 13.9 mm
- Brand
- EnGenius
- Category
- Network Transceiver Module
- Model
- SFP3185-03
- Part number
- SFP3185-03
- EAN / UPC
- 655216009783, 4713361935244
- Also known as
- EnGenius SFP3185-03 SFP+ Module 10G Multi-Mode Fiber 850nm 0.3km
Specifications
16 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13.9 mm |
| Depth | 58.4 mm |
| Height | 12.6 mm |
| Weight | 25 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85369010 |
