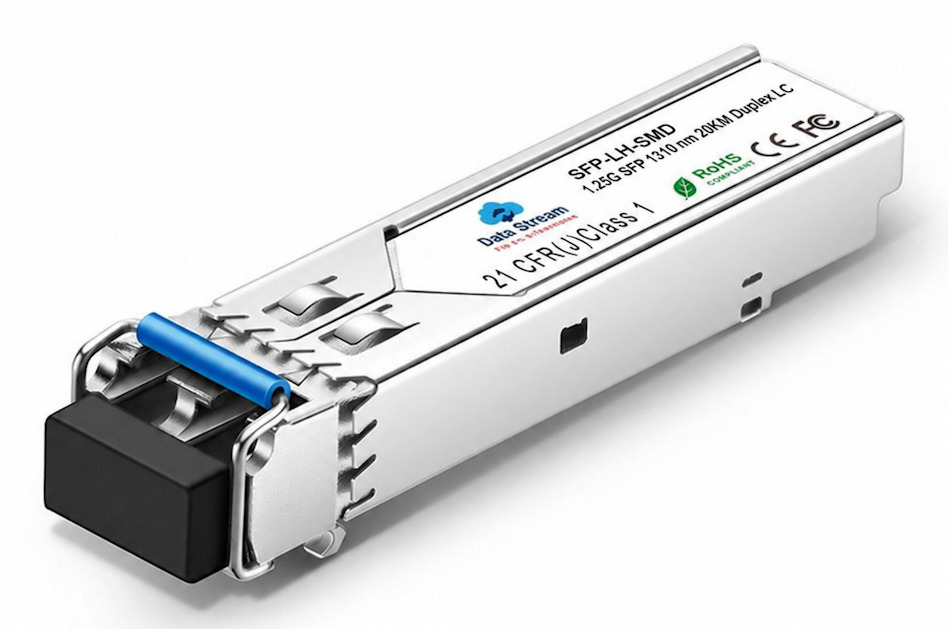

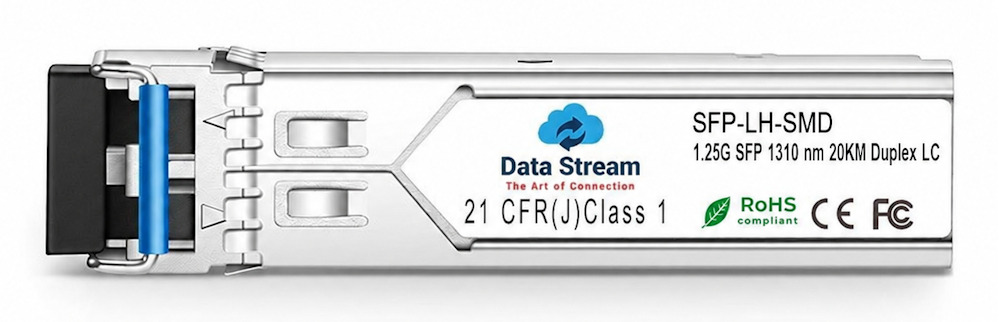

1.25G SFP LH 1310nm 20km Optical Transceiver Module - Cisco Compatible
Model SFP-LH-SMD-DS-CO
23 specifications
- Speed1250 Mbit/s
- SFP transceiver typeFiber optic
- Brand compatibilityCisco
- Input voltage3.3 V
- Operating temperature (T-T)0 - 70 °C
- Width13.7 mm
Overview
- Speed
- 1250 Mbit/s
- SFP transceiver type
- Fiber optic
- Brand compatibility
- Cisco
- Input voltage
- 3.3 V
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 13.7 mm
- Brand
- Data Stream
- Category
- Network Transceiver Module
- Model
- SFP-LH-SMD-DS-CO
- Part number
- SFP-LH-SMD-DS-CO
- Also known as
- Data Stream 1.25G SFP LH 1310nm 20km Optical Transceiver Module - Cisco Compatible
Specifications
23 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | LC |
| Single-mode fiber (SMF) supported | Yes |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Tx power (min) | -9 dBmW |
| Tx power (max) | -3 dBmW |
| Rx power (min) | -23 dBmW |
| Rx power (max) | -3 dBmW |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Brand compatibility | Cisco |
| Compatible products | SONET OC-24-LR-1 |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
| Maximum voltage | 3.47 V |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, CE |
Sustainability
| Specification | Value |
|---|---|
| Doesn't contain | Lead |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13.7 mm |
| Depth | 57 mm |
| Height | 10.5 mm |
