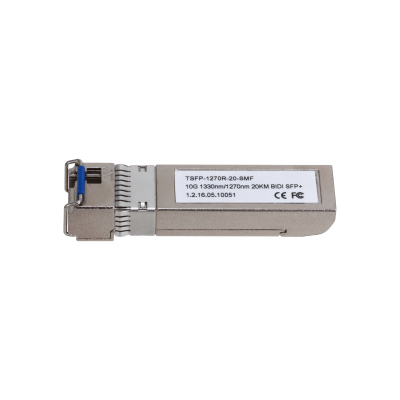

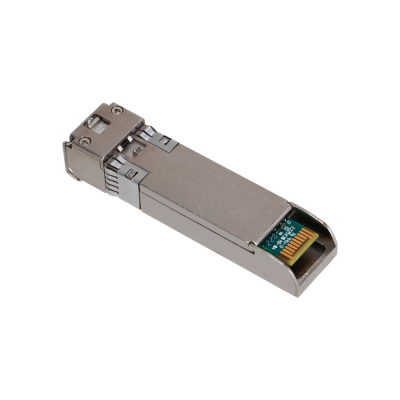

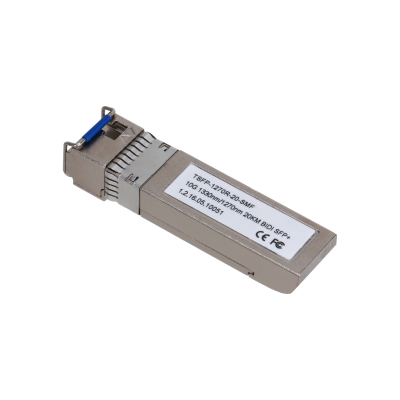

TSFP-1270R-20-SMF network transceiver module Fiber optic 1000 Mbit/s SFP 1330 nm
Model TSFP-1270R-20-SMF
23 specifications
- Speed1000 Mbit/s
- ColourSteel
- SFP transceiver typeFiber optic
- Minimum operating temperature-40 °C
- Width57.5 mm
Overview
- Speed
- 1000 Mbit/s
- Colour
- Steel
- SFP transceiver type
- Fiber optic
- Minimum operating temperature
- -40 °C
- Width
- 57.5 mm
- Brand
- Dahua Technology
- Category
- Network Transceiver Module
- Model
- TSFP-1270R-20-SMF
- Part number
- TSFP-1270R-20-SMF
- Also known as
- Dahua Technology TSFP-1270R-20-SMF network transceiver module Fiber optic 1000 Mbit/s SFP 1330 nm
Specifications
23 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 20000 m |
| Wavelength | 1330 nm |
| Tx wavelength (max) | 1330 nm |
| Rx wavelength (max) | 1270 nm |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Product colour | Steel |
| Plug and Play | Yes |
| Easy to install | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | -40 °C |
| Maximum operating temperature | 85 °C |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 57.5 mm |
| Depth | 13.9 mm |
| Height | 8.5 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
