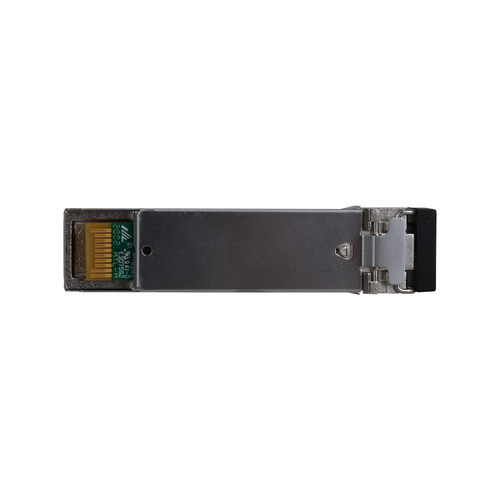

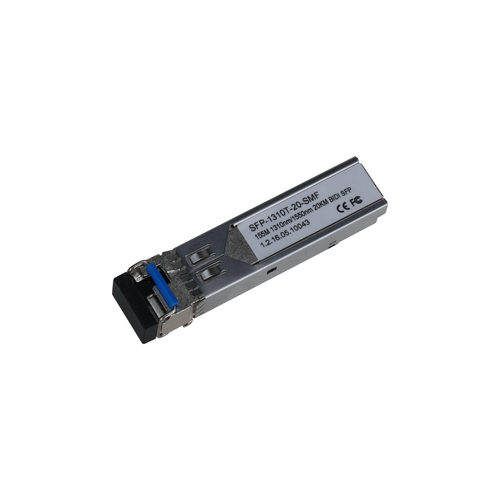

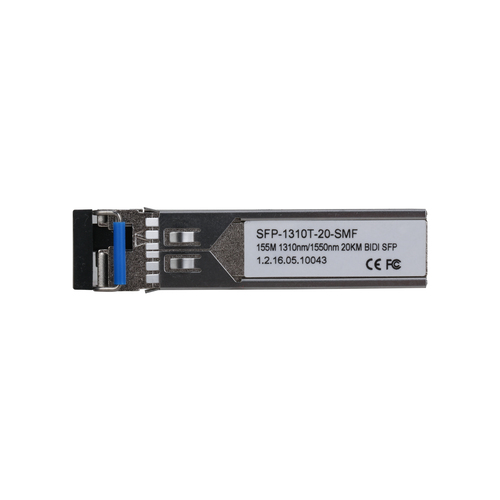

SFP-1310T-20-SMF network transceiver module Fiber optic 100 Mbit/s 1550 nm
Model SFP-1310T-20-SMF
20 specifications
- Speed100 Mbit/s
- ColourSteel
- SFP transceiver typeFiber optic
- Minimum operating temperature-40 °C
Overview
- Speed
- 100 Mbit/s
- Colour
- Steel
- SFP transceiver type
- Fiber optic
- Minimum operating temperature
- -40 °C
- Brand
- Dahua Technology
- Category
- Network Transceiver Module
- Model
- SFP-1310T-20-SMF
- Part number
- SFP-1310T-20-SMF
- Also known as
- Dahua Technology SFP-1310T-20-SMF network transceiver module Fiber optic 100 Mbit/s 1550 nm
Specifications
20 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 100 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 20000 m |
| Wavelength | 1550 nm |
| Tx wavelength (max) | 1550 nm |
| Rx wavelength (max) | 1310 nm |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Product colour | Steel |
| Plug and Play | Yes |
| Easy to install | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | -40 °C |
| Maximum operating temperature | 85 °C |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
