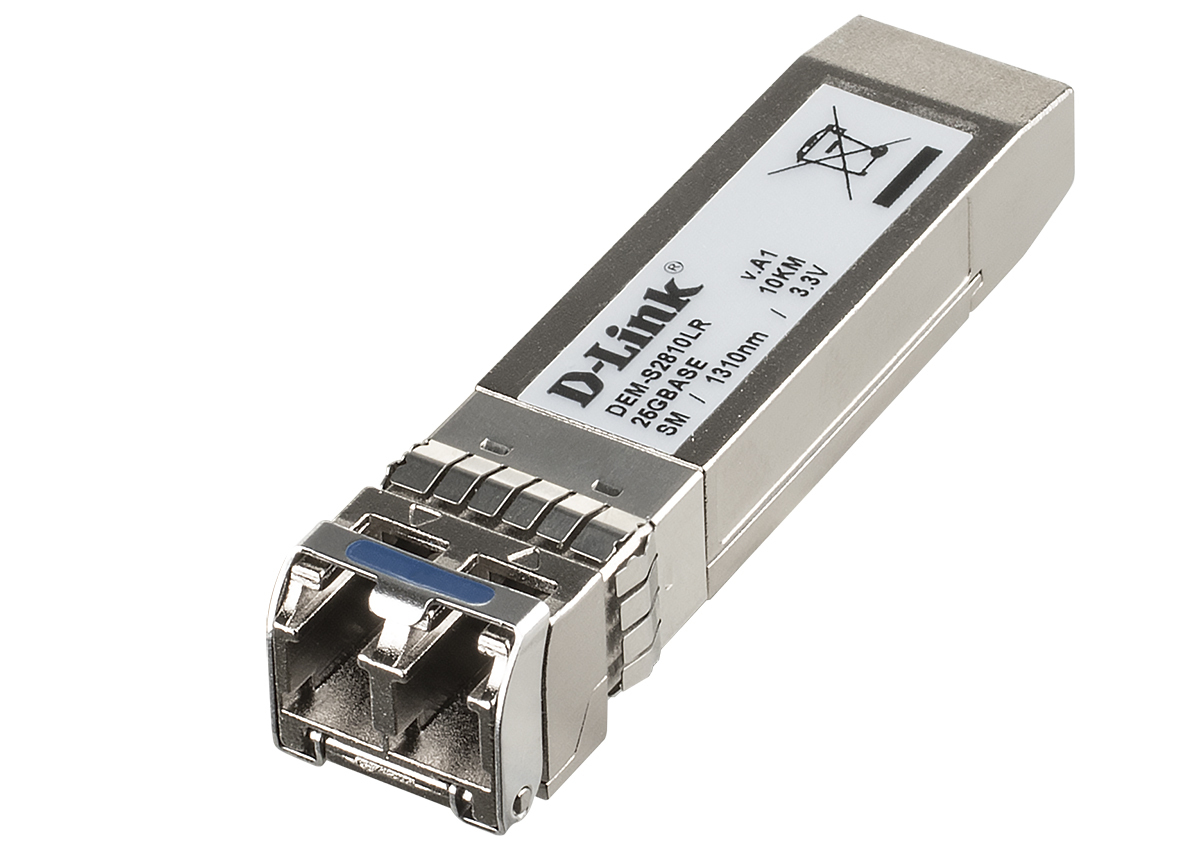

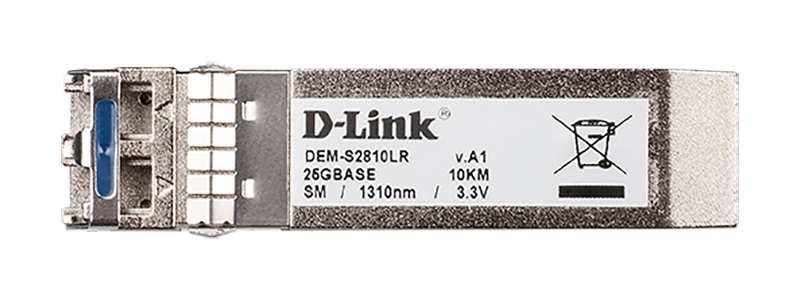

DEM-S2810LR network transceiver module Fiber optic 25000 Mbit/s SFP28 1310 nm
Model DEM-S2810LREAN 790069456350
26 specifications
- Speed25000 Mbit/s
- Weight25 g
- SFP transceiver typeFiber optic
- Hot-Plug supportYes
- Input voltage3.3 V
- Operating temperature (T-T)0 - 70 °C
Overview
- Speed
- 25000 Mbit/s
- Weight
- 25 g
- SFP transceiver type
- Fiber optic
- Hot-Plug support
- Yes
- Input voltage
- 3.3 V
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- D-Link
- Category
- Network Transceiver Module
- Model
- DEM-S2810LR
- Part number
- DEM-S2810LR
- EAN / UPC
- 790069456350
- Also known as
- D-Link DEM-S2810LR network transceiver module Fiber optic 25000 Mbit/s SFP28 1310 nm
Specifications
26 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 25000 Mbit/s |
| Interface type | SFP28 |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | LR |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Tx power (min) | -5 dBmW |
| Tx power (max) | 2 dBmW |
| Rx power (min) | -13.3 dBmW |
| Rx power (max) | 0.5 dBmW |
| Fiber ethernet cabling technology | 25GBASE |
Features
| Specification | Value |
|---|---|
| Hot-Plug support | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
| Maximum current | 0.3 A |
Certificates
| Specification | Value |
|---|---|
| Certification | MSA, RoHS, CE, FCC, VCCI, LVD, EN 60825-1, EN 60825-2 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 57.3 mm |
| Depth | 13.7 mm |
| Height | 8.5 mm |
| Weight | 25 g |
