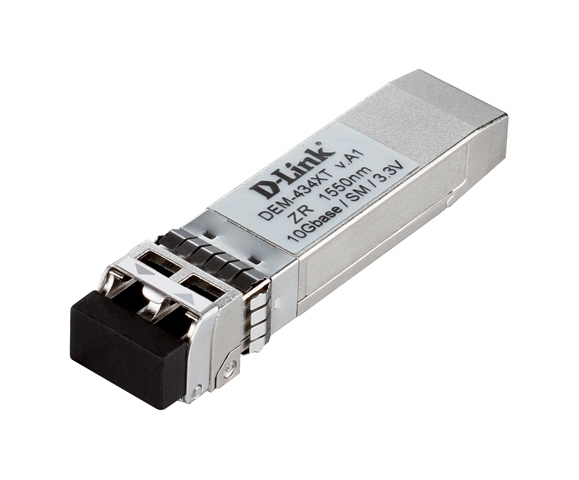

D-Link DEM-434XT network transceiver module 10000 Mbit/s SFP+ 1550 nm
Model DEM-434XT
30 specifications
- Speed10000 Mbit/s
- Weight20 g
- ColourMetallic
- Input voltage3.3 V
- Operating temperature (T-T)0 - 70 °C
- Width56.5 mm
Overview
- Speed
- 10000 Mbit/s
- Weight
- 20 g
- Colour
- Metallic
- Input voltage
- 3.3 V
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 56.5 mm
- Brand
- D-Link
- Category
- Network Transceiver Module
- Model
- DEM-434XT
- Part number
- DEM-434XT
- Also known as
- D-Link DEM-434XT network transceiver module 10000 Mbit/s SFP+ 1550 nm
Specifications
30 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | ZR |
| Wavelength | 1550 nm |
| Tx power (min) | 0 dBmW |
| Tx power (max) | 4 dBmW |
| Rx power (min) | -7 dBmW |
| Rx power (max) | -24 dBmW |
| Networking standards | IEEE 802.3ae, IEEE 802.3aq |
| Digital Diagnostics Monitoring (DDM) | No |
Features
| Specification | Value |
|---|---|
| Product colour | Metallic |
| Housing material | Metal |
| Hot-Plug support | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
| Maximum current | 0.45 A |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Safety | UL, TUV |
| Certification | CE, FCC, VCCI |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56.5 mm |
| Depth | 14.8 mm |
| Height | 11.8 mm |
| Weight | 20 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| RX sensitivity | -24 dB |
