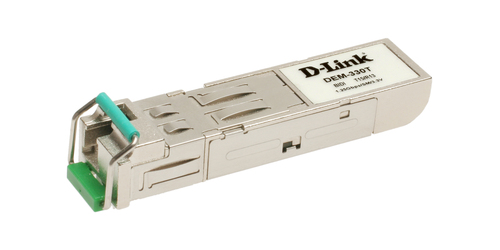

DEM-330T network transceiver module Fiber optic 1250 Mbit/s LC
Model DEM-330TEAN 790069290909
18 specifications
- Speed1250 Mbit/s
- Weight19.8 g
- ColourSilver
- SFP transceiver typeFiber optic
- Input voltage3.3 V
Overview
- Speed
- 1250 Mbit/s
- Weight
- 19.8 g
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Input voltage
- 3.3 V
- Brand
- D-Link
- Category
- Network Transceiver Module
- Model
- DEM-330T
- Part number
- DEM-330T
- EAN / UPC
- 790069290909, 790069473548, 7900692909090
- Also known as
- D-Link DEM-330T network transceiver module Fiber optic 1250 Mbit/s LC
Specifications
18 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | LC |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 10000 m |
| Tx wavelength (max) | 1550 nm |
| Rx wavelength (max) | 1310 nm |
| Link budget | 18 dB |
| Cabling technology | 1000BASE-BX-D |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 445890 h |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
Certificates
| Specification | Value |
|---|---|
| Safety | TUV, UL, FDA |
| Certification | FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 19.8 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
