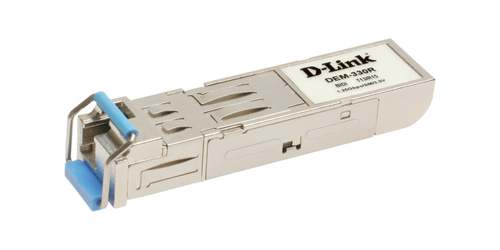

DEM-330R network transceiver module Fiber optic 1250 Mbit/s LC
Model DEM-330REAN 790069473531
21 specifications
- Speed1250 Mbit/s
- Weight19.8 g
- ColourSilver
- SFP transceiver typeFiber optic
- Input voltage3.3 V
- Width13.4 mm
Overview
- Speed
- 1250 Mbit/s
- Weight
- 19.8 g
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Input voltage
- 3.3 V
- Width
- 13.4 mm
- Brand
- D-Link
- Category
- Network Transceiver Module
- Model
- DEM-330R
- Part number
- DEM-330R
- EAN / UPC
- 790069473531, 790069290862, 790069290879, 5711045538018 +1 more
- Also known as
- D-Link DEM-330R network transceiver module Fiber optic 1250 Mbit/s LC
Specifications
21 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | LC |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 10000 m |
| Tx wavelength (max) | 1310 nm |
| Rx wavelength (max) | 1550 nm |
| Link budget | 18 dB |
| Cabling technology | 1000BASE-BX-U |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 445890 h |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
Certificates
| Specification | Value |
|---|---|
| Safety | TUV, UL, FDA |
| Certification | FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13.4 mm |
| Depth | 55.5 mm |
| Height | 11.3 mm |
| Weight | 19.8 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
