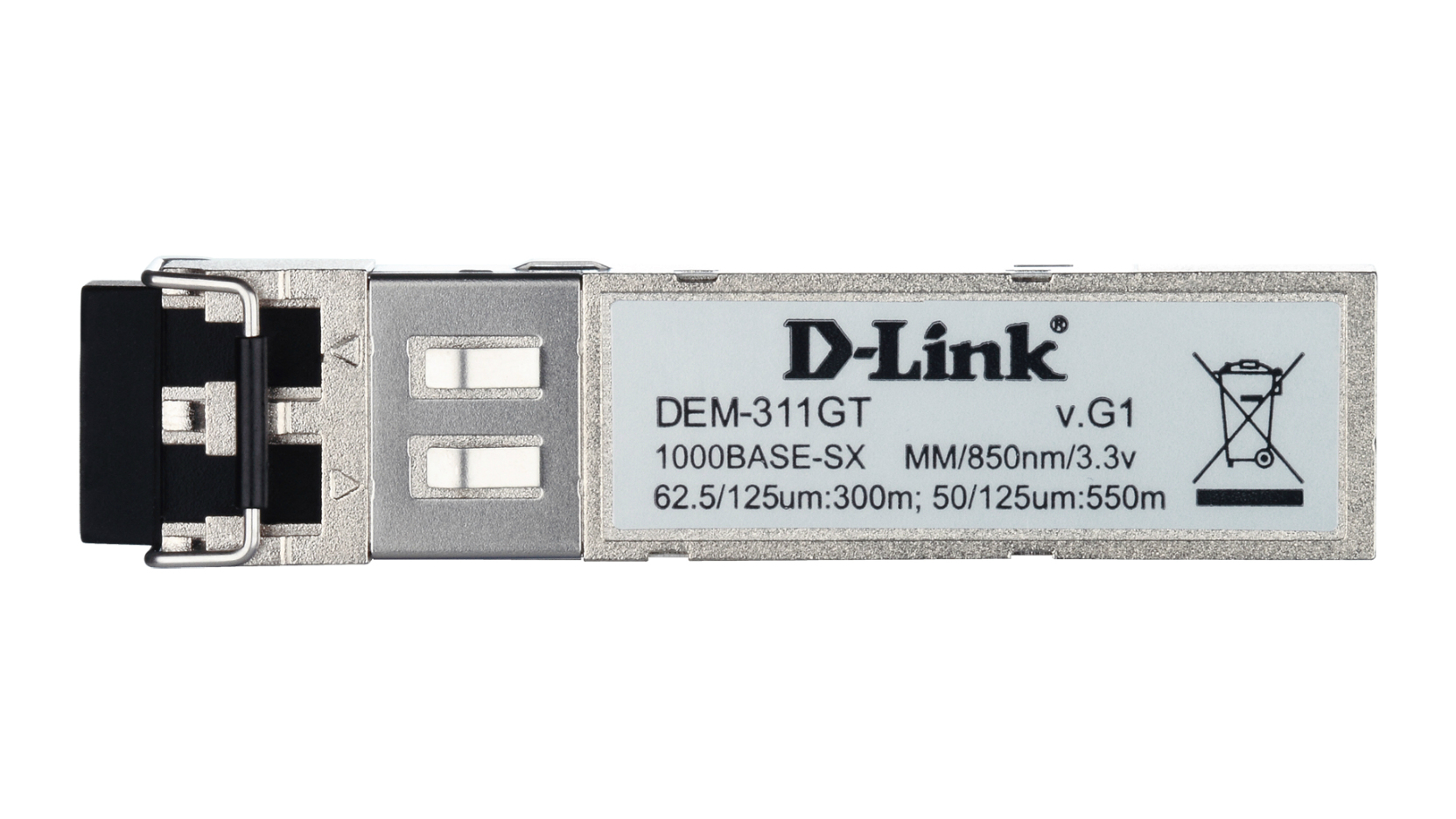

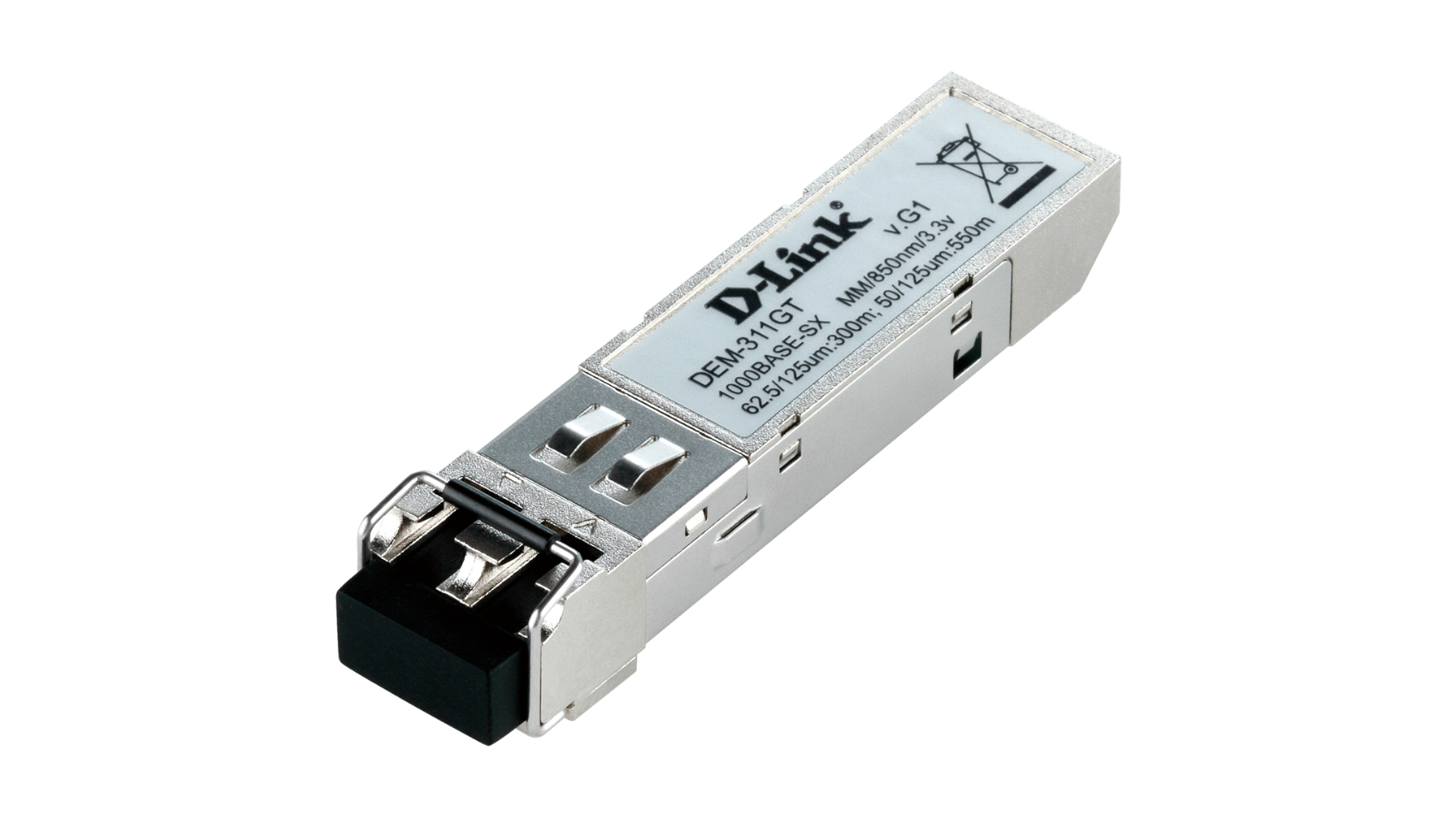

1-port Mini-GBIC SFP to 1000BaseSX, 550m for all
Model DEM-311GTPart no. DEM-311GT/10EAN 790069471612
42 specifications
- Speed1000 Mbit/s
- ColourMetallic
- SFP transceiver typeFiber optic
- Maximum voltage6 V
- Operating temperature (T-T)0 - 40 °C
- Width13.8 mm
Overview
- Speed
- 1000 Mbit/s
- Colour
- Metallic
- SFP transceiver type
- Fiber optic
- Maximum voltage
- 6 V
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 13.8 mm
- Brand
- D-Link
- Category
- Network Transceiver Module
- Model
- DEM-311GT
- Part numbers
- DEM-311GT/10, DEM-311GT
- EAN / UPC
- 790069471612, 009006924815, 021111184571, 132017587844 +11 more
- Also known as
- D-Link 1-port Mini-GBIC SFP to 1000BaseSX, 550m for all
Specifications
42 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | SX |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Networking standards | IEEE 802.3x |
| Duplex system | Full |
Features
| Specification | Value |
|---|---|
| Product colour | Metallic |
| Housing material | Metal |

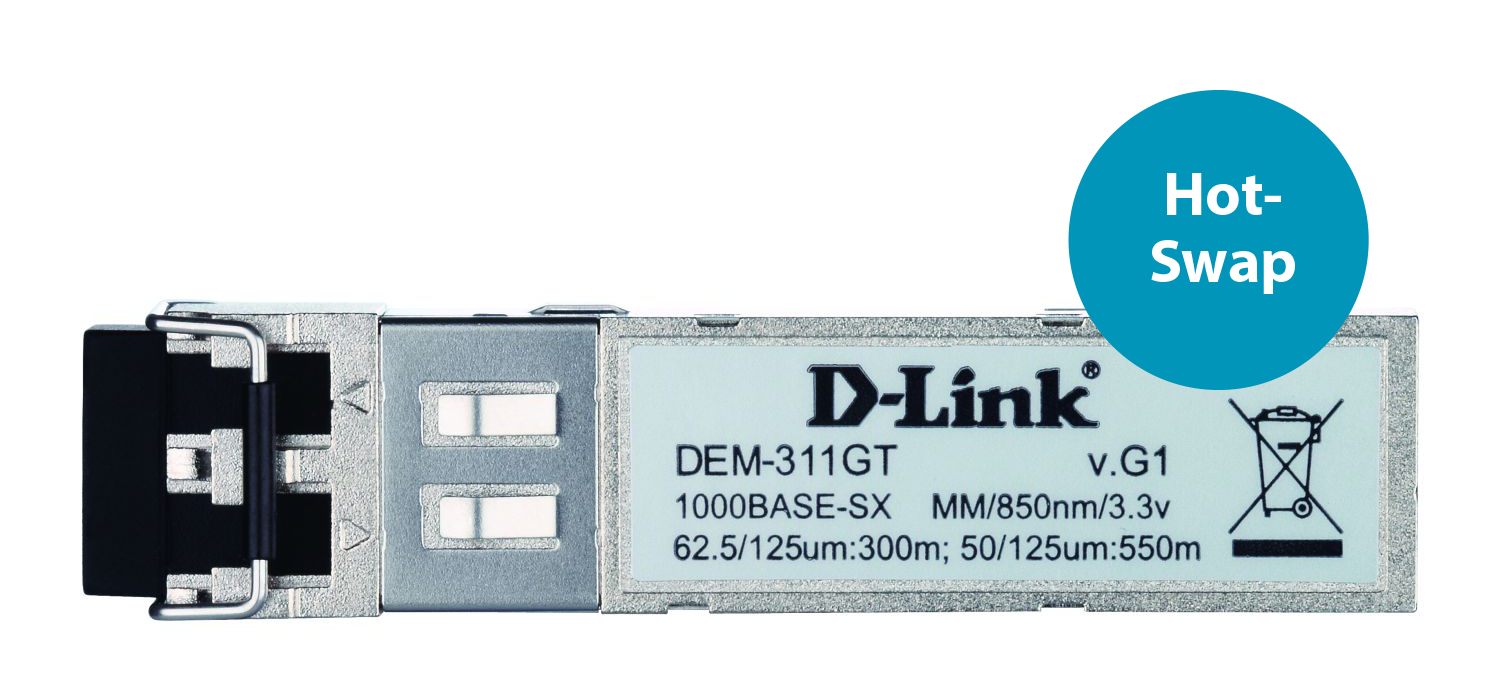

| Hot-Plug support | Yes |
Power
| Specification | Value |
|---|---|
| Maximum voltage | 6 V |
Certificates
| Specification | Value |
|---|---|
| Certification | MSA, RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13.8 mm |
| Depth | 57.2 mm |
| Height | 8.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 74 mm |
| Package depth | 131 mm |
| Package height | 49 mm |
| Package weight | 64 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 54 pc(s) |
| Master (outer) cases per pallet (sea) | 54 pc(s) |
| Pallet gross length | 102 cm |
| Pallet gross weight (air) | 246.8 kg |
| Pallet gross weight (sea) | 246.8 kg |
| Pallet gross width | 122 cm |
| Pallet height (air) | 199 cm |
| Pallet height (sea) | 199 cm |
| Products per pallet (air) | 2700 pc(s) |
| Products per pallet (sea) | 2700 pc(s) |
| Products per shipping (inner) case | 50 pc(s) |
| Shipping (inner) case gross weight | 4.2 kg |
| Shipping (inner) case height | 31 cm |
| Shipping (inner) case length | 36 cm |
| Shipping (inner) case net weight | 3.2 kg |
| Shipping (inner) case width | 26 cm |
| Harmonized System (HS) code | 85369010 |
