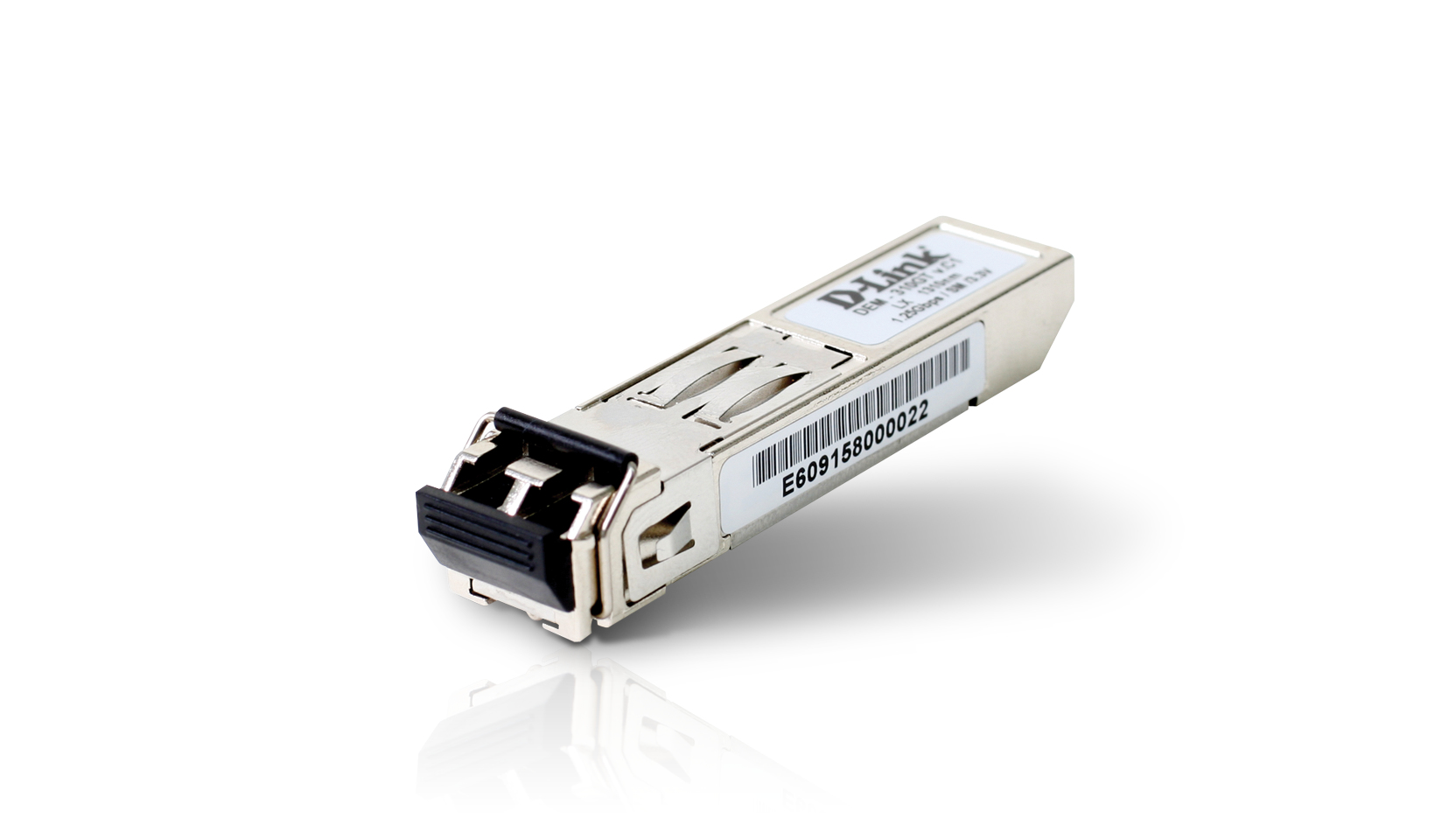

1-port Mini-GBIC SFP to 1000BaseLX, 10km for all
Model DEM-310GTPart no. DEM-310GT/10EAN 5715063344842
43 specifications
- Speed1250 Mbit/s
- ColourMetallic
- SFP transceiver typeFiber optic
- Maximum voltage3.3 V
- Operating temperature (T-T)0 - 70 °C
Overview
- Speed
- 1250 Mbit/s
- Colour
- Metallic
- SFP transceiver type
- Fiber optic
- Maximum voltage
- 3.3 V
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- D-Link
- Category
- Network Transceiver Module
- Model
- DEM-310GT
- Part numbers
- DEM-310GT/10, DEM-310GT
- EAN / UPC
- 5715063344842, 132017587837, 151903046821, 191120038650 +13 more
- Also known as
- D-Link 1-port Mini-GBIC SFP to 1000BaseLX, 10km for all
Specifications
43 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| SFP transceiver standard | LX |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 1000Base-LX |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
Features
| Specification | Value |
|---|---|
| Product colour | Metallic |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
Power
| Specification | Value |
|---|---|
| Maximum voltage | 3.3 V |
Certificates
| Specification | Value |
|---|---|
| Certification | MSA, RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Packaging data
| Specification | Value |
|---|---|
| Package width | 74 mm |
| Package depth | 131 mm |
| Package height | 49 mm |
| Package weight | 64 g |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 29.8 x 11.8 x 56.3 mm |
| I/O ports | mini-GBIC |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 54 pc(s) |
| Master (outer) cases per pallet (sea) | 54 pc(s) |
| Pallet gross length | 102 cm |
| Pallet gross weight (air) | 246.8 kg |
| Pallet gross weight (sea) | 246.8 kg |
| Pallet gross width | 122 cm |
| Pallet height (air) | 199 cm |
| Pallet height (sea) | 199 cm |
| Products per pallet (air) | 2700 pc(s) |
| Products per pallet (sea) | 2700 pc(s) |
| Products per shipping (inner) case | 50 pc(s) |
| Shipping (inner) case gross weight | 4.2 kg |
| Shipping (inner) case height | 31 cm |
| Shipping (inner) case length | 36 cm |
| Shipping (inner) case net weight | 3.2 kg |
| Shipping (inner) case width | 26 cm |
| Harmonized System (HS) code | 85177900 |
