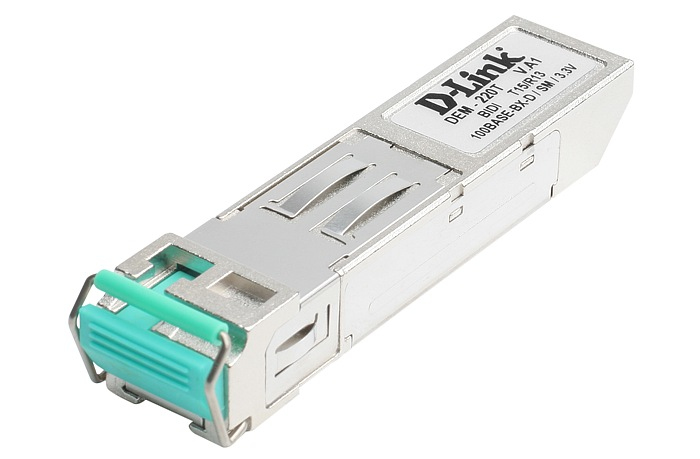

D-Link DEM-220T network transceiver module Fiber optic 100 Mbit/s SFP 1550 nm

D-Link DEM-220T network transceiver module Fiber optic 100 Mbit/s SFP 1550 nm

Model DEM-220T

29 specifications
  • Speed100 Mbit/s
  • Weight19.1 g
  • ColourGreen, Metallic
  • SFP transceiver typeFiber optic
  • Input voltage3.3 V
  • Operating temperature (T-T)0 - 85 °C
See all specifications

Overview

Speed
100 Mbit/s
Weight
19.1 g
Colour
Green, Metallic
SFP transceiver type
Fiber optic
Input voltage
3.3 V
Operating temperature (T-T)
0 - 85 °C
Brand
D-Link
Model
DEM-220T
Part number
DEM-220T
Also known as
D-Link DEM-220T network transceiver module Fiber optic 100 Mbit/s SFP 1550 nm

Specifications

29 specifications in 8 groups

Performance

SFP transceiver typeFiber optic
Maximum data transfer rate100 Mbit/s
Interface typeSFP
Single-mode fiber (SMF) supportedYes
Fiber optic connectorLC
Fiber cable diameters supported (core/cladding)9/125 µm
SFP transceiver standardBX-D
Maximum transfer distance20000 m
Wavelength1550 nm
Tx power (min)-14 dBmW
Tx power (max)-8 dBmW
Rx power (min)-32 dBmW
Rx power (max)-3 dBmW
Networking standardsIEEE 802.3ah

Features

Product colourGreen, Metallic
Housing materialMetal
Hot-swapYes

Power

Input voltage3.3 V
Maximum current0.3 A

Certificates

SafetyTUV, UL, FDA
CertificationFCC, ICES-003, CE, VCCI

Operational conditions

Operating temperature (T-T)0 - 85 °C
Storage temperature (T-T)-40 - 85 °C

Weight & dimensions

Width55.5 mm
Depth28.1 mm
Height13.4 mm
Weight19.1 g

Packaging content

Quantity per pack1 pc(s)

Other features

RX sensitivity-32 dB
