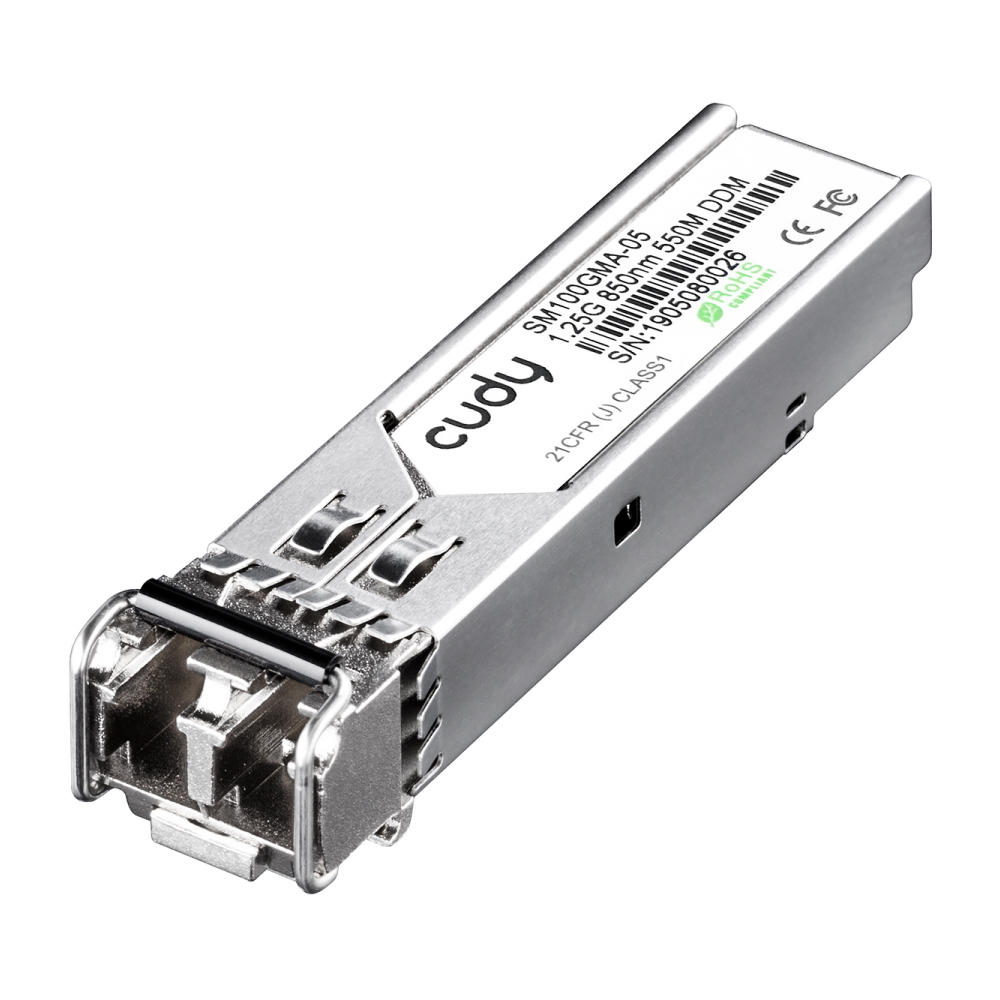

SM100GMA-05 network transceiver module Fiber optic 1250 Mbit/s SFP 850 nm
Model SM100GMA-05EAN 6971690790691
26 specifications
- Speed1250 Mbit/s
- ColourSilver
- SFP transceiver typeFiber optic
- Input voltage3.47 V
- Operating temperature (T-T)-40 - 70 °C
- Width13.4 mm
Overview
- Speed
- 1250 Mbit/s
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Input voltage
- 3.47 V
- Operating temperature (T-T)
- -40 - 70 °C
- Width
- 13.4 mm
- Brand
- Cudy
- Category
- Network Transceiver Module
- Model
- SM100GMA-05
- Part number
- SM100GMA-05
- EAN / UPC
- 6971690790691
- Also known as
- Cudy SM100GMA-05 network transceiver module Fiber optic 1250 Mbit/s SFP 850 nm
Specifications
26 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Networking standards | IEEE 802.3 |
| Copper ethernet cabling technology | 1000BASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Housing material | Metal |
| Hot-Plug support | Yes |
| Brand compatibility | MSA Compliant |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.47 V |
| Maximum voltage | 4 V |
| Maximum current | 0.375 A |
| Power consumption (typical) | 1.2 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13.4 mm |
| Depth | 68 mm |
| Height | 13.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
