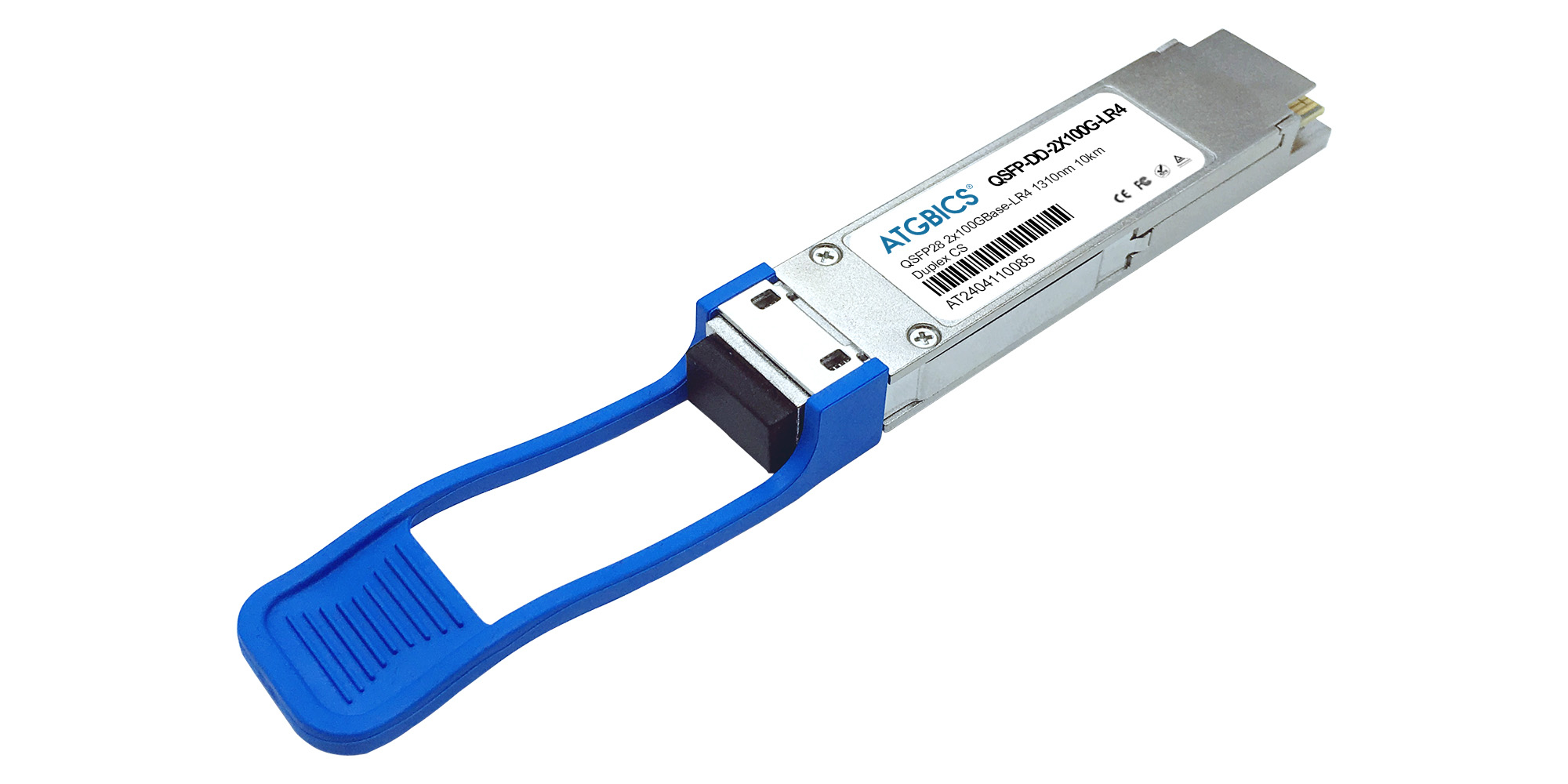

QDD-2X100G-LR4 Juniper Compatible Transceiver QSFP-DD
2x100GBase-LR4 (1310nm SMF 10km Duplex CS DOM)
Model QDD-2X100G-LR4-C
39 specifications
- Speed200000 Mbit/s
- Weight100 g
- ColourSilver
- SFP transceiver typeFiber optic
- Input voltage3.3 V
- Minimum operating temperature0 °C
Overview
- Speed
- 200000 Mbit/s
- Weight
- 100 g
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Input voltage
- 3.3 V
- Minimum operating temperature
- 0 °C
- Brand
- ATGBICS
- Category
- Network Transceiver Module
- Model
- QDD-2X100G-LR4-C
- Part number
- QDD-2X100G-LR4-C
- Also known as
- ATGBICS QDD-2X100G-LR4 Juniper Compatible Transceiver QSFP-DD 2x100GBase-LR4 (1310nm SMF 10km Duplex CS DOM)
Specifications
39 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 200000 Mbit/s |
| Interface type | QSFP-DD |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | CS |
| SFP transceiver standard | LR4 |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Ethernet LAN | Yes |
| Ethernet interface type | 200 Gigabit Ethernet |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Housing material | Metal |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Easy to install | Yes |
| Brand compatibility | Juniper |
Power
| Specification | Value |
|---|---|
| Input voltage | 3.3 V |
| Maximum voltage | 3.5 V |
| Power consumption (typical) | 4 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | TÜV mark, UKCA, UL, US FDA, REACH, Federal Communications Commission (FCC), RoHS, CE |
| Certification | CE, FCC, RoHS, REACH |
Sustainability
| Specification | Value |
|---|---|
| Doesn't contain | Lead |
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 13.5 mm |
| Depth | 72.4 mm |
| Height | 18.4 mm |
| Weight | 100 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
