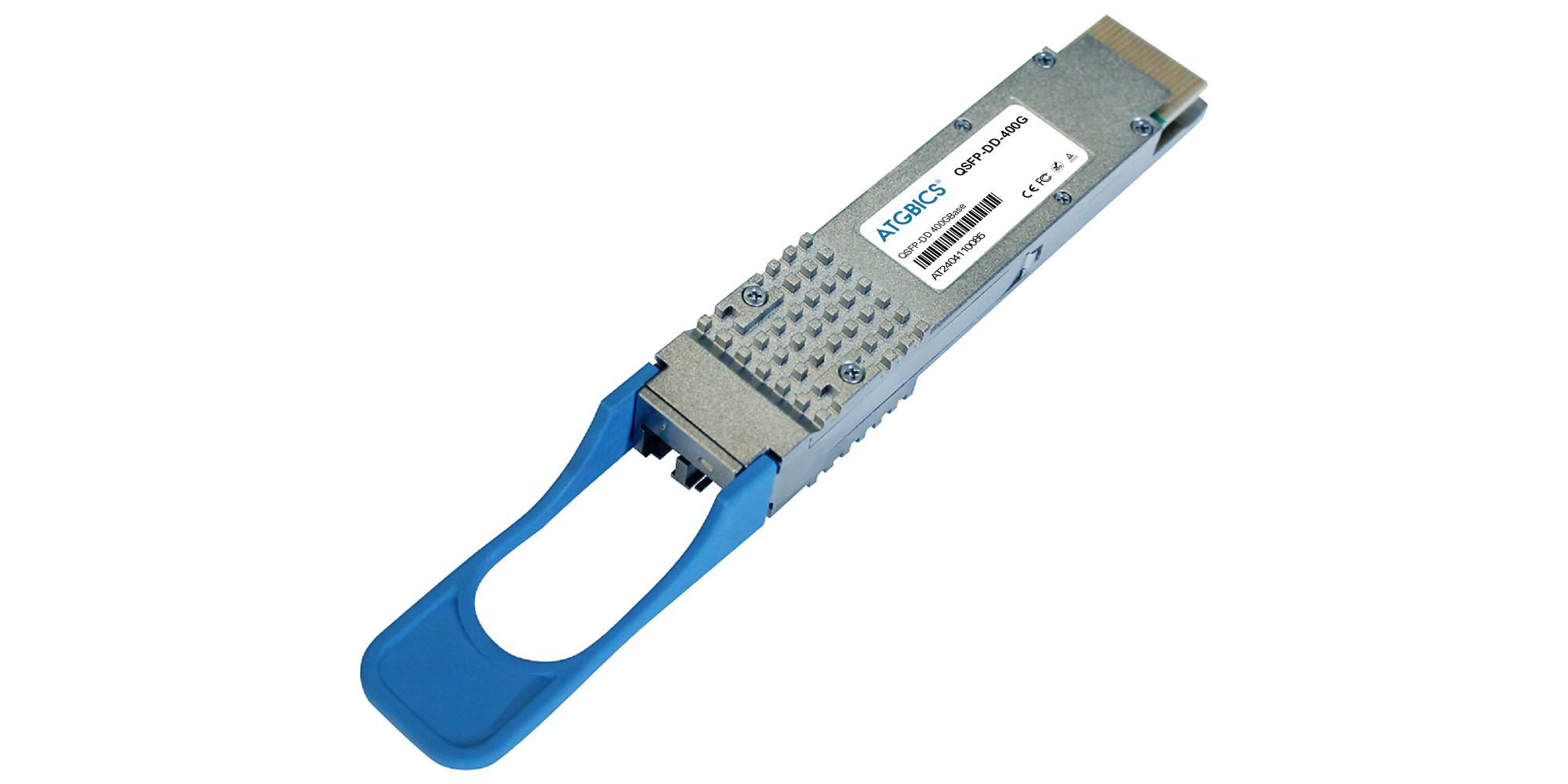

FIM39105/172 Fujitsu compatible Transceiver QSFP-DD
4x100GBase-SR1 (1310nm SMF 500m MPO-12 DOM)
Model FIM39105/172-C
29 specifications
- Speed400000 Mbit/s
- ColourSilver
- SFP transceiver typeFiber optic
- Storage temperature (T-T)-40 - 85 °C
Overview
- Speed
- 400000 Mbit/s
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Storage temperature (T-T)
- -40 - 85 °C
- Brand
- ATGBICS
- Category
- Network Transceiver Module
- Model
- FIM39105/172-C
- Part number
- FIM39105/172-C
- Also known as
- ATGBICS FIM39105/172 Fujitsu compatible Transceiver QSFP-DD 4x100GBase-SR1 (1310nm SMF 500m MPO-12 DOM)
Specifications
29 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 400000 Mbit/s |
| Interface type | QSFP-DD |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | MPO-12 |
| SFP transceiver standard | SR |
| Maximum transfer distance | 500 m |
| Wavelength | 1310 nm |
| Ethernet LAN | Yes |
| Ethernet interface type | 400 Gigabit Ethernet |
| Fiber ethernet cabling technology | 400GBASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Export Control Classification Number (ECCN) | 5A991 |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Housing material | Metal |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Easy to install | Yes |
| Brand compatibility | Fujitsu |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | TÜV mark, UKCA, UL, US FDA, REACH, Federal Communications Commission (FCC), RoHS, CE |
| Certification | CE, UKCA, EMC, FCC, REACH, RoHS, TÜV, FDA |
Sustainability
| Specification | Value |
|---|---|
| Doesn't contain | Lead |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
