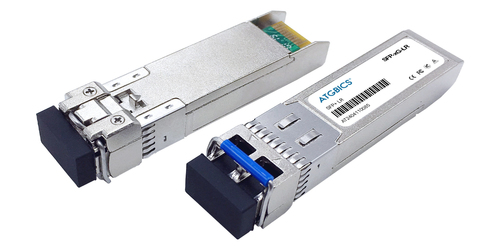

ATGBICS DS-SFP-FC16G-ELW Cisco compatible Transceiver SFP+ 16GBase-ELW Fibre Channel (1310nm SMF 25km LC DOM)
Model DS-SFP-FC16G-ELW-CEAN 5056468799852
32 specifications
- Speed16000 Mbit/s
- ColourSilver
- SFP transceiver typeFiber optic
- Minimum operating temperature0 °C
Overview
- Speed
- 16000 Mbit/s
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Minimum operating temperature
- 0 °C
- Brand
- ATGBICS
- Category
- Network Transceiver Module
- Model
- DS-SFP-FC16G-ELW-C
- Part number
- DS-SFP-FC16G-ELW-C
- EAN / UPC
- 5056468799852
- Also known as
- ATGBICS DS-SFP-FC16G-ELW Cisco compatible Transceiver SFP+ 16GBase-ELW Fibre Channel (1310nm SMF 25km LC DOM)
Specifications
32 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 16000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| SFP transceiver standard | LR, LW |
| Maximum transfer distance | 25000 m |
| Wavelength | 1310 nm |
| Ethernet LAN | Yes |
| Ethernet interface type | 16 Gigabit Ethernet |
| Fiber ethernet cabling technology | 16GBASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Wavelength-division multiplexing (WDM) | No |
| Export Control Classification Number (ECCN) | 5A991 |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Housing material | Metal |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Easy to install | Yes |
| Brand compatibility | Cisco |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | TÜV mark, UKCA, Electromagnetic Compatibility (EMC), REACH, Federal Communications Commission (FCC), RoHS, CE |
| Certification | CE, EMC, FCC, REACH, RoHS, TÜV |
Sustainability
| Specification | Value |
|---|---|
| Doesn't contain | Lead |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
