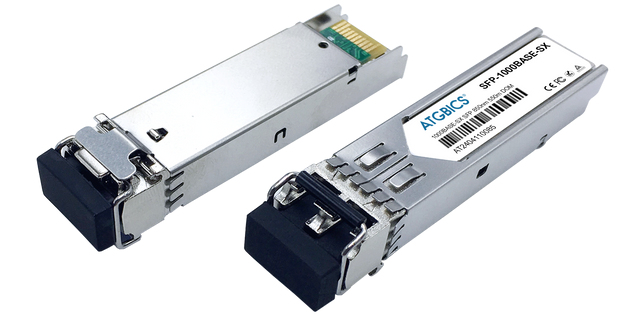

6GK6000-8FG53-0AA0-C network transceiver module Fiber optic 1000 Mbit/s SFP 850 nm
Model 6GK6000-8FG53-0AA0-C
21 specifications
- Speed1000 Mbit/s
- TypeSFP
- ColourSilver
- SFP transceiver typeFiber optic
- Operating temperature (T-T)-40 - 85 °C
Overview
- Speed
- 1000 Mbit/s
- Type
- SFP
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Operating temperature (T-T)
- -40 - 85 °C
- Brand
- ATGBICS
- Category
- Network Transceiver Module
- Model
- 6GK6000-8FG53-0AA0-C
- Part number
- 6GK6000-8FG53-0AA0-C
- Also known as
- ATGBICS 6GK6000-8FG53-0AA0-C network transceiver module Fiber optic 1000 Mbit/s SFP 850 nm
Specifications
21 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | SX |
| Maximum transfer distance | 500 m |
| Wavelength | 850 nm |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Fiber ethernet cabling technology | 1000BASE |
| Duplex system | Full |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Form factor | SFP |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Easy to install | Yes |
| Brand compatibility | Siemens |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, Trade Agreements Act (TAA), UL |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
