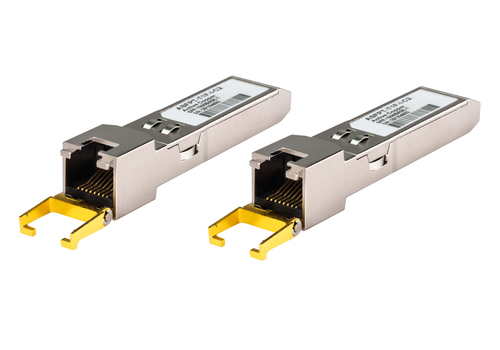

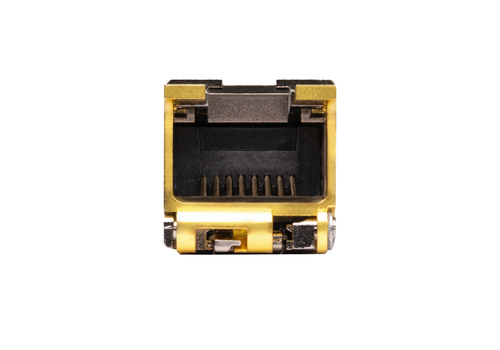

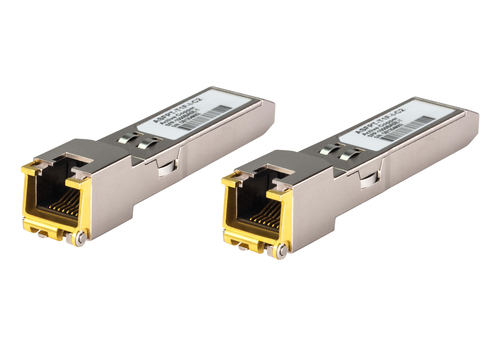

1G Ethernet Copper SFP Module
Model 2A-143GEAN 672792013539
16 specifications
- Speed1000 Mbit/s
- Weight20 g
- ColourMetallic
- SFP transceiver typeCopper
- Operating temperature (T-T)-40 - 85 °C
- Width12 mm
Overview
- Speed
- 1000 Mbit/s
- Weight
- 20 g
- Colour
- Metallic
- SFP transceiver type
- Copper
- Operating temperature (T-T)
- -40 - 85 °C
- Width
- 12 mm
- Brand
- ATEN
- Category
- Network Transceiver Module
- Model
- 2A-143G
- Part number
- 2A-143G
- EAN / UPC
- 672792013539, 4710469341724
- Also known as
- ATEN 1G Ethernet Copper SFP Module
Specifications
16 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Copper |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Maximum transfer distance | 100 m |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3ab |
| Copper ethernet cabling technology | 1GBASE |
Features
| Specification | Value |
|---|---|
| Product colour | Metallic |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -45 - 90 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 12 mm |
| Depth | 68.5 mm |
| Height | 13.8 mm |
| Weight | 20 g |
Logistics data
| Specification | Value |
|---|---|
| Customs product code (TARIC) | 90309000 |
| Country of origin | Taiwan |
