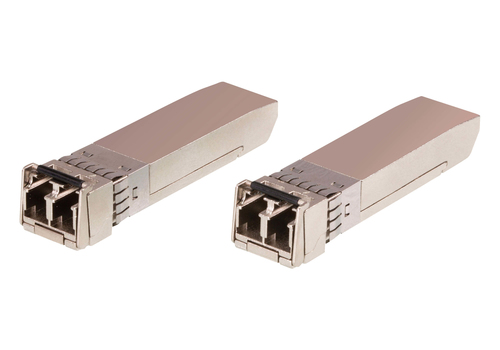

10G Multi-Mode/300M Fiber SFP+ Module
Model 2A-141GEAN 672792011450
29 specifications
- Speed10000 Mbit/s
- Weight44 g
- ColourStainless steel
- SFP transceiver typeFiber optic
- Operating temperature (T-T)0 - 70 °C
- Width14.6 mm
Overview
- Speed
- 10000 Mbit/s
- Weight
- 44 g
- Colour
- Stainless steel
- SFP transceiver type
- Fiber optic
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 14.6 mm
- Brand
- ATEN
- Category
- Network Transceiver Module
- Model
- 2A-141G
- Part number
- 2A-141G
- EAN / UPC
- 672792011450, 4719264649707
- Also known as
- ATEN 10G Multi-Mode/300M Fiber SFP+ Module
Specifications
29 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Networking standards | IEEE 802.3ae |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Stainless steel |
| Hot-Plug support | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 14.6 mm |
| Depth | 55.9 mm |
| Height | 13 mm |
| Weight | 44 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 2 pc(s) |
Packaging data
| Specification | Value |
|---|---|
| Package width | 42 mm |
| Package depth | 124 mm |
| Package height | 129 mm |
| Package weight | 85 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 440 g |
| Master (outer) case width | 237 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case length | 288 mm |
| Master (outer) case height | 157 mm |
| Master (outer) case gross weight | 1.27 kg |
| Products per master (outer) case | 10 pc(s) |
