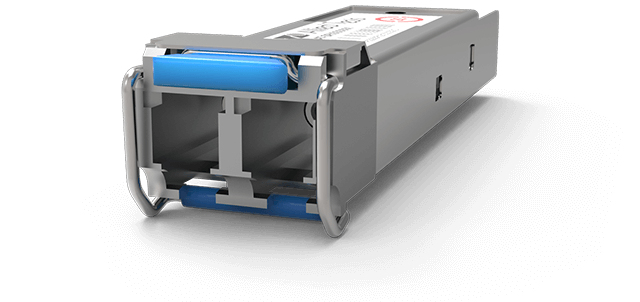

SP10LRa/I network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm
Model SP10LRa/IPart no. AT-SP10LRA/I-90
22 specifications
- Speed10000 Mbit/s
- ColourGrey
- SFP transceiver typeFiber optic
- Operating temperature (T-T)-40 - 85 °C
Overview
- Speed
- 10000 Mbit/s
- Colour
- Grey
- SFP transceiver type
- Fiber optic
- Operating temperature (T-T)
- -40 - 85 °C
- Brand
- Allied Telesis
- Category
- Network Transceiver Module
- Model
- SP10LRa/I
- Part number
- AT-SP10LRA/I-90
- Also known as
- Allied Telesis SP10LRa/I network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm
Specifications
22 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | FC |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Tx power (min) | -8 dBmW |
| Tx power (max) | 1 dBmW |
| Rx power (max) | -14 dBmW |
| Link budget | 6 dB |
| Fiber ethernet cabling technology | 10GBASE |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Grey |
| Hot-swap | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | TAA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
