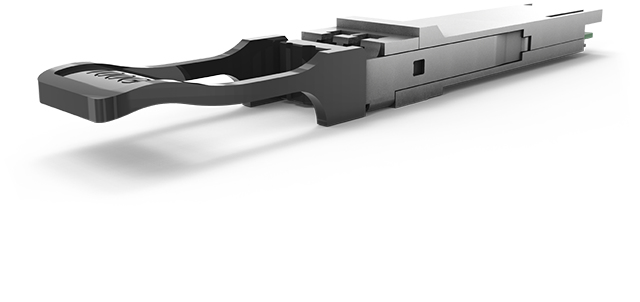

QSFP28-SR4 network transceiver module Fiber optic 100000 Mbit/s 850 nm
Model QSFP28-SR4Part no. AT-QSFP28SR4EAN 767035212517
20 specifications
- Speed100000 Mbit/s
- ColourSilver
- SFP transceiver typeFiber optic
- Power consumption (typical)2.5 W
- Operating temperature (T-T)0 - 70 °C
Overview
- Speed
- 100000 Mbit/s
- Colour
- Silver
- SFP transceiver type
- Fiber optic
- Power consumption (typical)
- 2.5 W
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Allied Telesis
- Category
- Network Transceiver Module
- Model
- QSFP28-SR4
- Part number
- AT-QSFP28SR4
- EAN / UPC
- 767035212517
- Also known as
- Allied Telesis QSFP28-SR4 network transceiver module Fiber optic 100000 Mbit/s 850 nm
Specifications
20 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 100000 Mbit/s |
| Interface type | QSFP28 |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | MPO |
| SFP transceiver standard | SR4 |
| Maximum transfer distance | 100 m |
| Wavelength | 850 nm |
| Link budget | 6 dB |
| Ethernet interface type | 100 Gigabit Ethernet |
| Networking standards | IEEE 802.3ba, IEEE 802.3bm |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2.5 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
