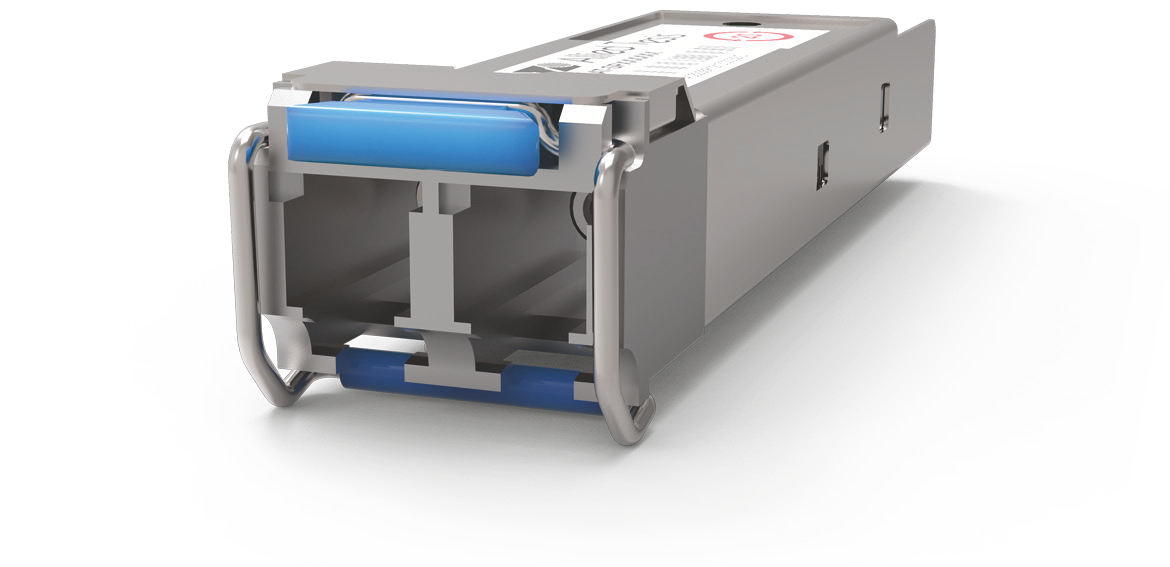

AT-SPSX/I-90 network transceiver module Fiber optic SFP 850 nm
Model AT-SPSX/I-90EAN 767035212579
19 specifications
- TypeSFP
- ColourSteel
- SFP transceiver typeFiber optic
- Minimum operating temperature-40 °C
Overview
- Type
- SFP
- Colour
- Steel
- SFP transceiver type
- Fiber optic
- Minimum operating temperature
- -40 °C
- Brand
- Allied Telesis
- Category
- Network Transceiver Module
- Model
- AT-SPSX/I-90
- Part number
- AT-SPSX/I-90
- EAN / UPC
- 767035212579
- Also known as
- Allied Telesis AT-SPSX/I-90 network transceiver module Fiber optic SFP 850 nm
Specifications
19 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Tx wavelength (max) | 850 nm |
| Rx wavelength (max) | 850 nm |
| Link budget | 7.5 dB |
| Copper ethernet cabling technology | 1000BASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Features
| Specification | Value |
|---|---|
| Product colour | Steel |
| Form factor | SFP |
| Hot-swap | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | -40 °C |
| Maximum operating temperature | 85 °C |
| Operating temperature (T-T) | -40 - 85 °C |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
