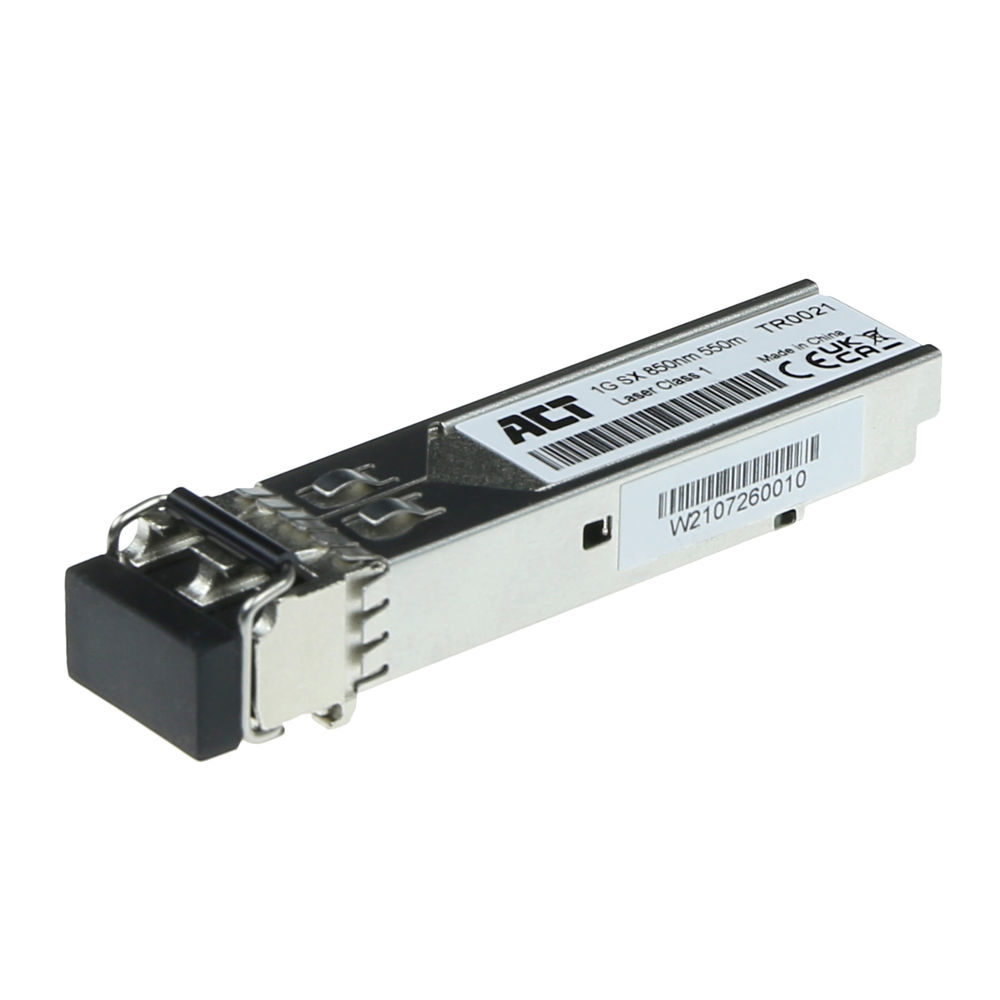

SFP SX transceiver coded for HP / HPE / Aruba / Procurve / H3C (J4858A/J4858B/J4858C/J4858D)
Model TR0021EAN 8716065492705
11 specifications
- Speed1250 Mbit/s
- SFP transceiver typeFiber optic
- Minimum operating temperature0 °C
Overview
- Speed
- 1250 Mbit/s
- SFP transceiver type
- Fiber optic
- Minimum operating temperature
- 0 °C
- Brand
- ACT
- Category
- Network Transceiver Module
- Model
- TR0021
- Part number
- TR0021
- EAN / UPC
- 8716065492705
- Also known as
- ACT SFP SX transceiver coded for HP / HPE / Aruba / Procurve / H3C (J4858A/J4858B/J4858C/J4858D)
Specifications
11 specifications in 3 groups
Performance
| Specification | Value |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Digital Diagnostics Monitoring (DDM) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85369010 |
