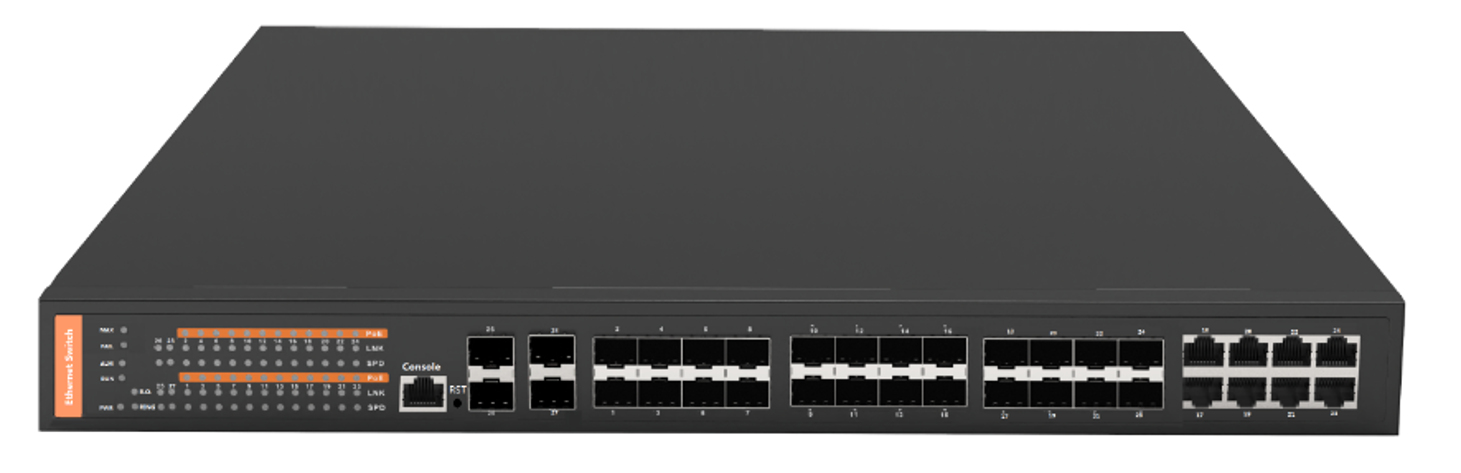

Managed 16 x Gigabit SFP, 8 x Gigabit Combo slots (SFP/RJ45), 4 x 10Gigabit SFP+, 240VAC IEC powered
Model Managed 16 x Gigabit SFP, 8 x Gigabit Combo slots (SFP/RJ45), 4 x 10Gigabit SFP+, 240VAC IEC poweredPart no. SIL 516S8C4MEAN 5060693982613
48 specifications
- Weight3.8 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportYes
- MAC address table16000 entries
- DHCP featuresDHCP client, DHCP server
Overview
- Weight
- 3.8 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- Yes
- MAC address table
- 16000 entries
- DHCP features
- DHCP client, DHCP server
- Brand
- SilverNet
- Category
- Network Switch
- Model
- Managed 16 x Gigabit SFP, 8 x Gigabit Combo slots (SFP/RJ45), 4 x 10Gigabit SFP+, 240VAC IEC powered
- Part number
- SIL 516S8C4M
- EAN / UPC
- 5060693982613
- Also known as
- SilverNet SIL 516S8C4M
Specifications
48 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| System event log | Yes |
| MIB support | Ethernet-Like, MIB-II, MIB-, Bridge MIB, Bridge MIB Extensions, RMON MIB(1,2,3&9 Groups), RFC2737 Entity, RFC2863 Interface Group, SNMP-Community-MIB |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 24 |
| Installed SFP+ modules quantity | 4 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p |
| 10G support | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP server |
| IGMP snooping | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Number of power supply units | 1 |
| AC input voltage | 240 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
Other features
| Specification | Value |
|---|---|
| Bandwidth | 128 Gbit/s |
| Warranty period | 3 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482.5 mm |
| Depth | 300 mm |
| Height | 44.5 mm |
| Weight | 3.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| UK Trade Tariff code | 85176200 |
