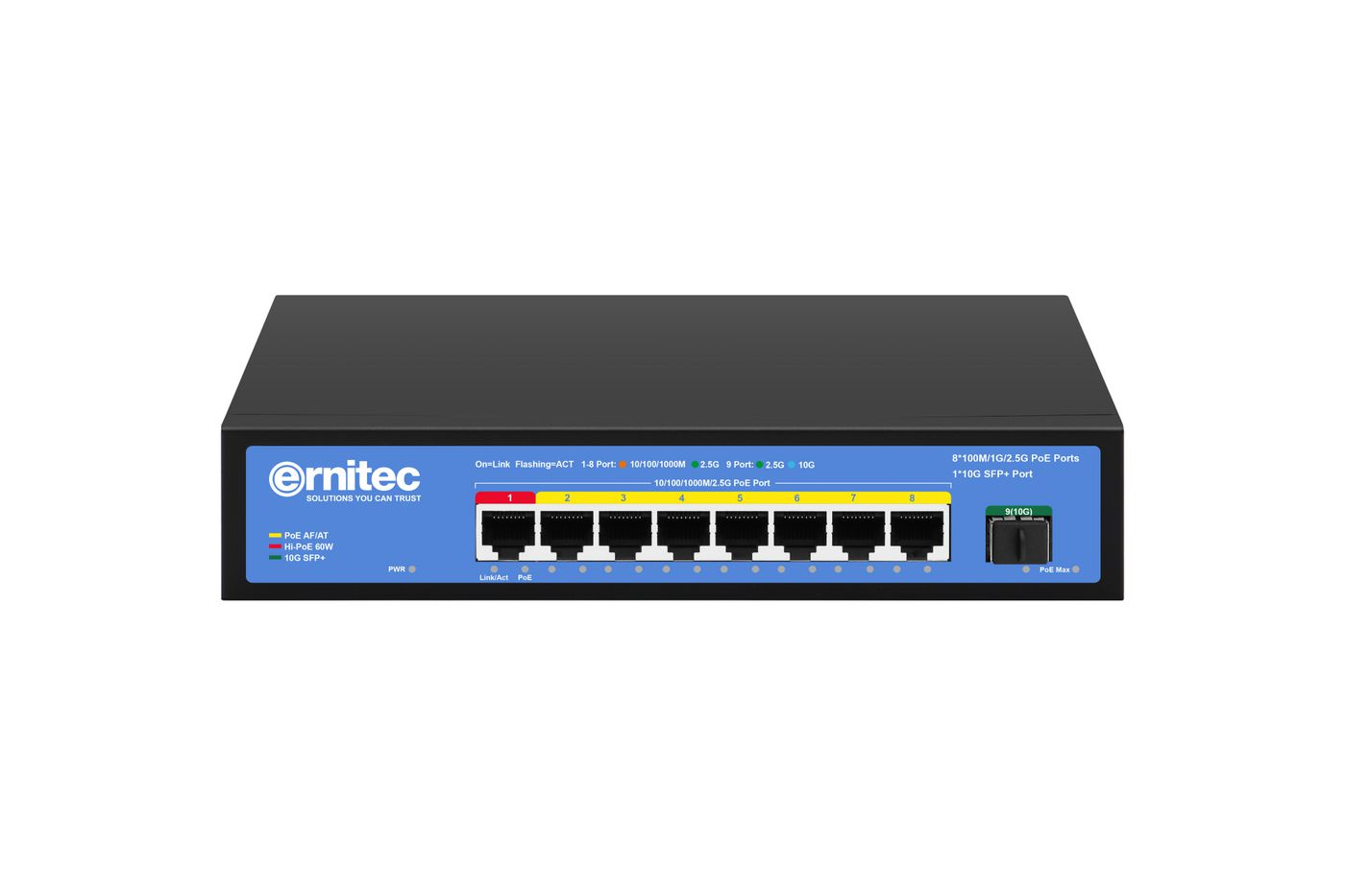

8-Port 2.5 Gigabit Unmanaged Intelligent PoE Switch, 8 PoE 2.5 Gigabit RJ45 ports, 1 x 10G SFP+ port - PoE 135W
Model 8-Port 2.5 Gigabit Unmanaged Intelligent PoE Switch, 8 PoE 2.5 Gigabit RJ45 ports, 1 x 10G SFP+ port - PoE 135WPart no. ELECTRA-U09-2.5GB-150WEAN 5715328364820
42 specifications
- Weight916 g
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- Full duplexYes
- MAC address table4000 entries
- Housing materialMetal
Overview
- Weight
- 916 g
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Full duplex
- Yes
- MAC address table
- 4000 entries
- Housing material
- Metal
- Brand
- Ernitec
- Category
- Network Switch
- Model
- 8-Port 2.5 Gigabit Unmanaged Intelligent PoE Switch, 8 PoE 2.5 Gigabit RJ45 ports, 1 x 10G SFP+ port - PoE 135W
- Part number
- ELECTRA-U09-2.5GB-150W
- EAN / UPC
- 5715328364820
- Also known as
- Ernitec 8-Port 2.5 Gigabit Unmanaged Intelligent PoE Switch, 8 PoE 2.5 Gigabit RJ45 ports, 1 x 10G SFP+ port - PoE 135W Power over Ethernet (PoE)
Specifications
42 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Combo SFP ports quantity | 1 |
| SFP module slots quantity | 1 |
| SFP+ module slots quantity | 1 |
Network
| Specification | Value |
|---|---|
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 44.64 Mpps |
| Store-and-forward | Yes |
Design
| Specification | Value |
|---|---|
| Housing material | Metal |
| LED indicators | Power |
| Number of fans | 0 fan(s) |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 11.29 W |
| Surge protection | Yes |
| Surge protection voltage | 4 kV |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet plus (PoE+) ports quantity | 7 |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 1 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 135 W |
Other features
| Specification | Value |
|---|---|

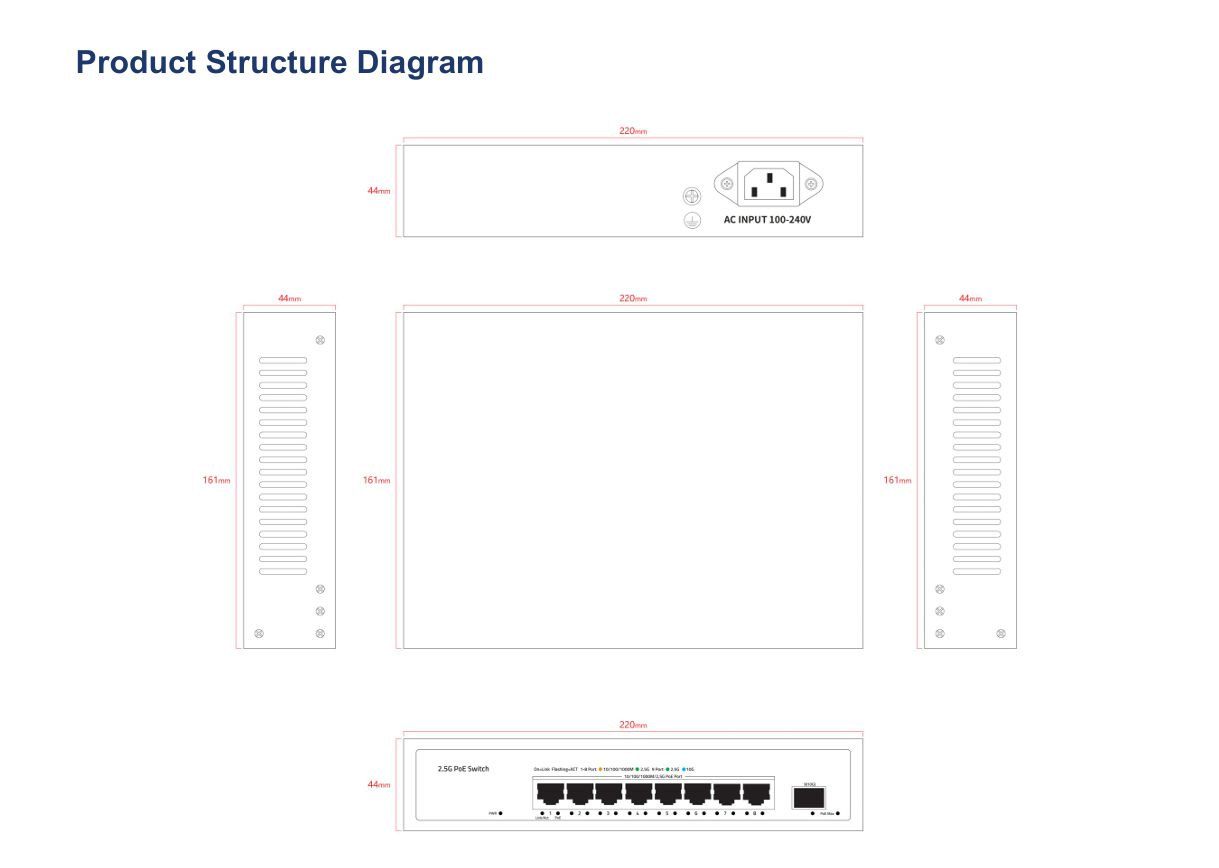

| Dimensions (WxDxH) | 220 x 161 x 44 mm |
| Mounting | Desktop |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 315 mm |
| Depth | 215 mm |
| Height | 85 mm |
| Weight | 916 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Power |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 315 mm |
| Package depth | 215 mm |
| Package height | 85 mm |
| Package weight | 1.23 kg |
