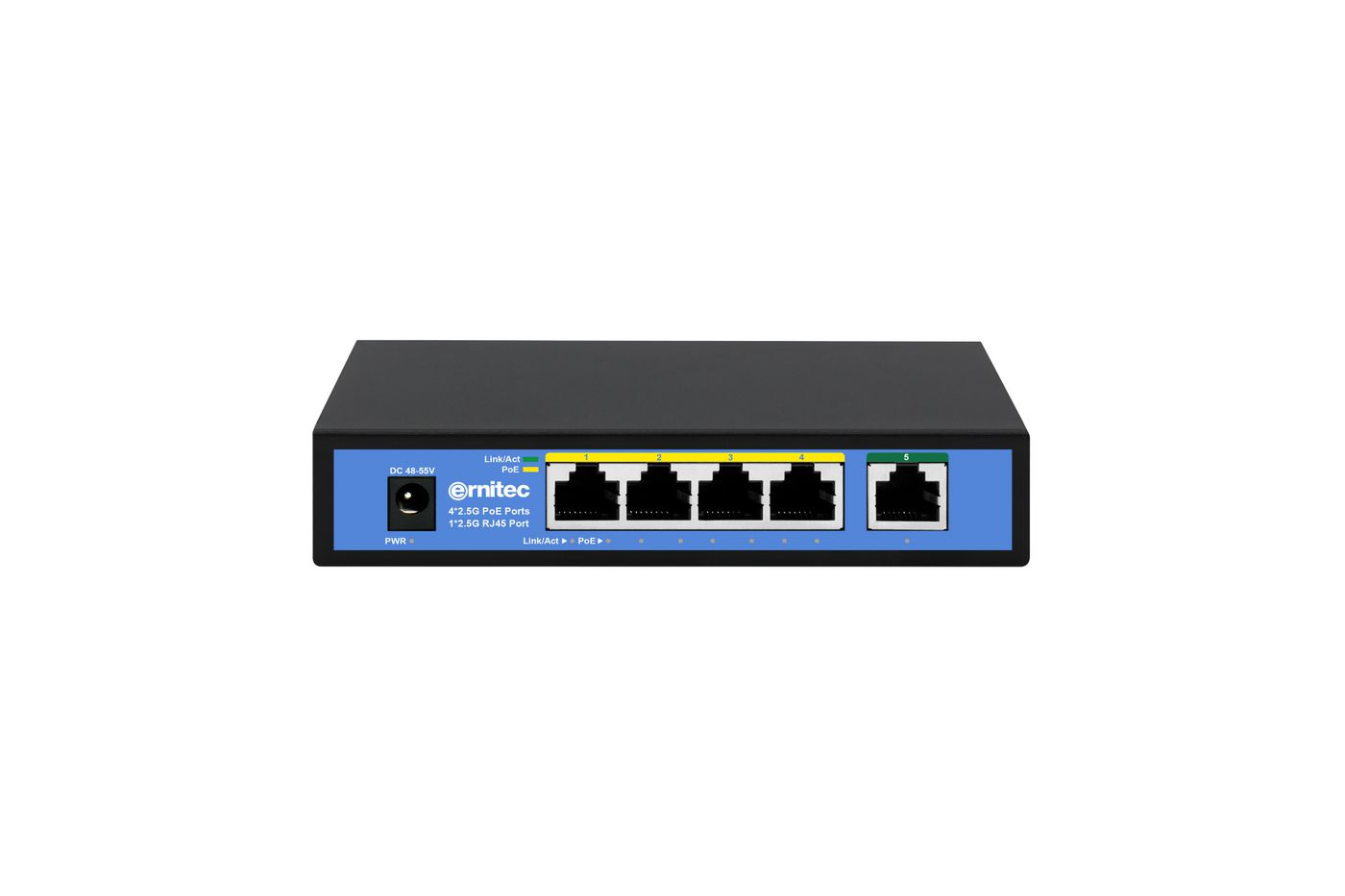

5-Port 2.5 Gigabit Unmanaged Intelligent PoE Switch, 4 PoE 2.5 Gigabit RJ45 ports, 1 x 2.5Gbps RJ45 port - PoE 58W
Model 5-Port 2.5 Gigabit Unmanaged Intelligent PoE Switch, 4 PoE 2.5 Gigabit RJ45 ports, 1 x 2.5Gbps RJ45 port - PoE 58WPart no. ELECTRA-U05-2.5GB-65WEAN 5715328364790
32 specifications
- Weight300 g
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- Networking standardsIEEE 802.3u
- MAC address table4000 entries
- Housing materialMetal
Overview
- Weight
- 300 g
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Networking standards
- IEEE 802.3u
- MAC address table
- 4000 entries
- Housing material
- Metal
- Brand
- Ernitec
- Category
- Network Switch
- Model
- 5-Port 2.5 Gigabit Unmanaged Intelligent PoE Switch, 4 PoE 2.5 Gigabit RJ45 ports, 1 x 2.5Gbps RJ45 port - PoE 58W
- Part number
- ELECTRA-U05-2.5GB-65W
- EAN / UPC
- 5715328364790
- Also known as
- Ernitec 5-Port 2.5 Gigabit Unmanaged Intelligent PoE Switch, 4 PoE 2.5 Gigabit RJ45 ports, 1 x 2.5Gbps RJ45 port - PoE 58W Power over Ethernet (PoE)
Specifications
32 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Uplink ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3u |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 25 Gbit/s |
| Forwarding rate | 18.6 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet forwarding | Yes |
Design
| Specification | Value |
|---|---|
| Housing material | Metal |
| LED indicators | PoE |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Surge protection | Yes |
| Surge protection voltage | 4 kV |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 58 W |
Other features
| Specification | Value |
|---|---|
| Material | Metal |
| Warranty period | 5 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 130 mm |
| Height | 55 mm |
| Weight | 300 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 175 mm |
| Package depth | 130 mm |
| Package height | 55 mm |
| Package weight | 760 g |
