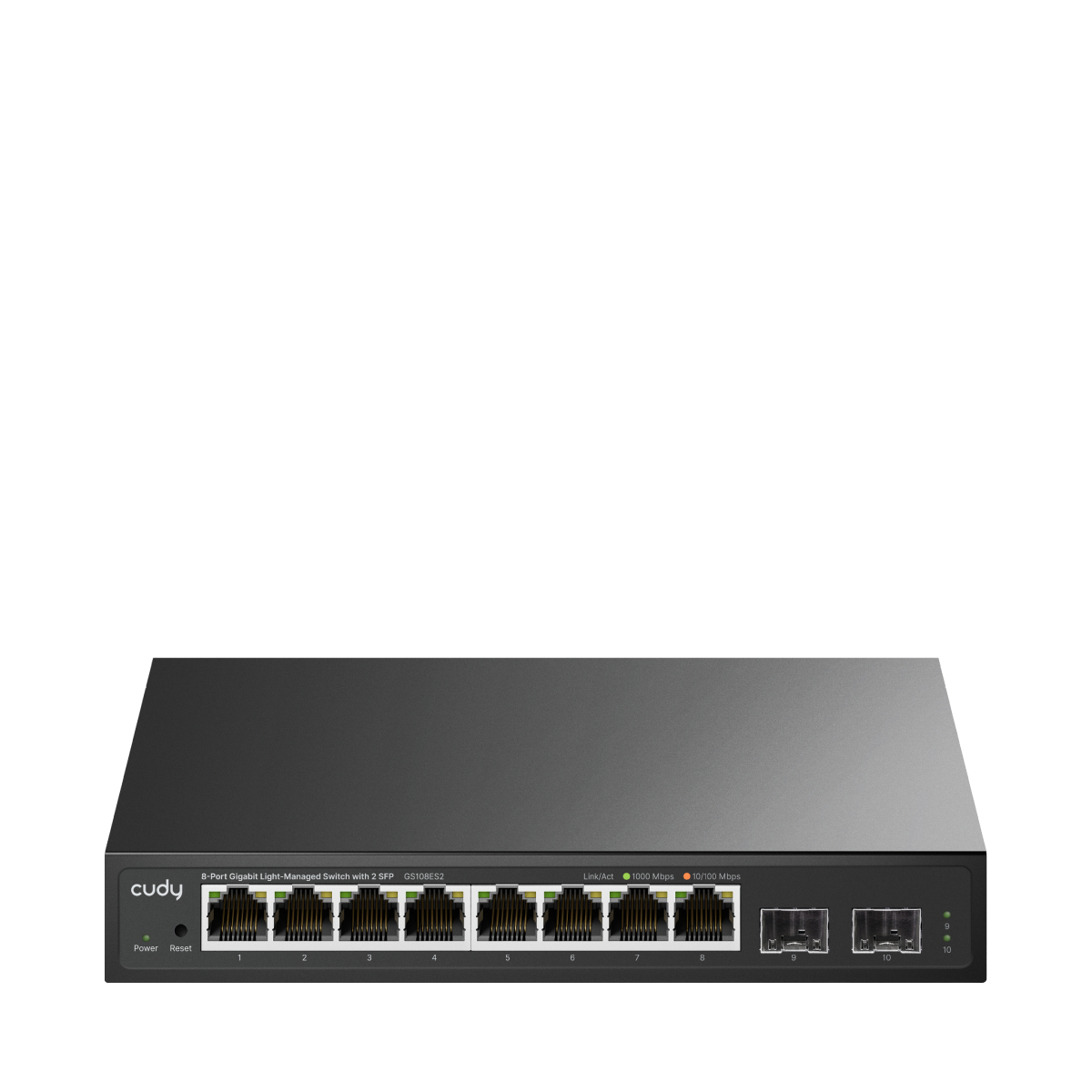

8-Port Gigabit Easy-Managed Switch with 2 SFP, GS108ES2 1.0
Model 8-Port Gigabit Easy-Managed Switch with 2 SFP, GS108ES2 1.0Part no. GS108ES2 1.0EAN 6971690794927
70 specifications
- Weight461.5 g
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table4096 entries
Overview
- Weight
- 461.5 g
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 4096 entries
- Brand
- Cudy
- Category
- Network Switch
- Model
- 8-Port Gigabit Easy-Managed Switch with 2 SFP, GS108ES2 1.0
- Part number
- GS108ES2 1.0
- EAN / UPC
- 6971690794927
- Also known as
- Cudy 8-Port Gigabit Easy-Managed Switch with 2 SFP, GS108ES2 1.0 L2 Gigabit Ethernet (10/100/1000) Black
Specifications
70 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3x, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.1p, IEEE 802.1Q |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X |
| Cable types supported | Cat3, Cat5, Cat5e, Cat6 |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Rate limiting | Yes |
| VLAN support | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Voice VLAN |
| Number of VLANs | 4096 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4096 entries |
| Switching capacity | 21 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| Number of trunks | 2 |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| Packet buffer memory | 0.18 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP snooping |
| IGMP snooping | Yes |
| Loop protection | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Product colour | Black |
| Housing material | Metal |
| Reset button | Yes |
| LED indicators | Power, Link, Activity |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Flash memory | 16 MB |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 12 V |
| Input current | 1 A |
| Power consumption (max) | 4.5 W |
| Power saving mode (EEE) | Yes |
| Surge protection | Yes |
| Surge protection voltage | 8 kV |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 100 mm |
| Height | 28 mm |
| Weight | 461.5 g |

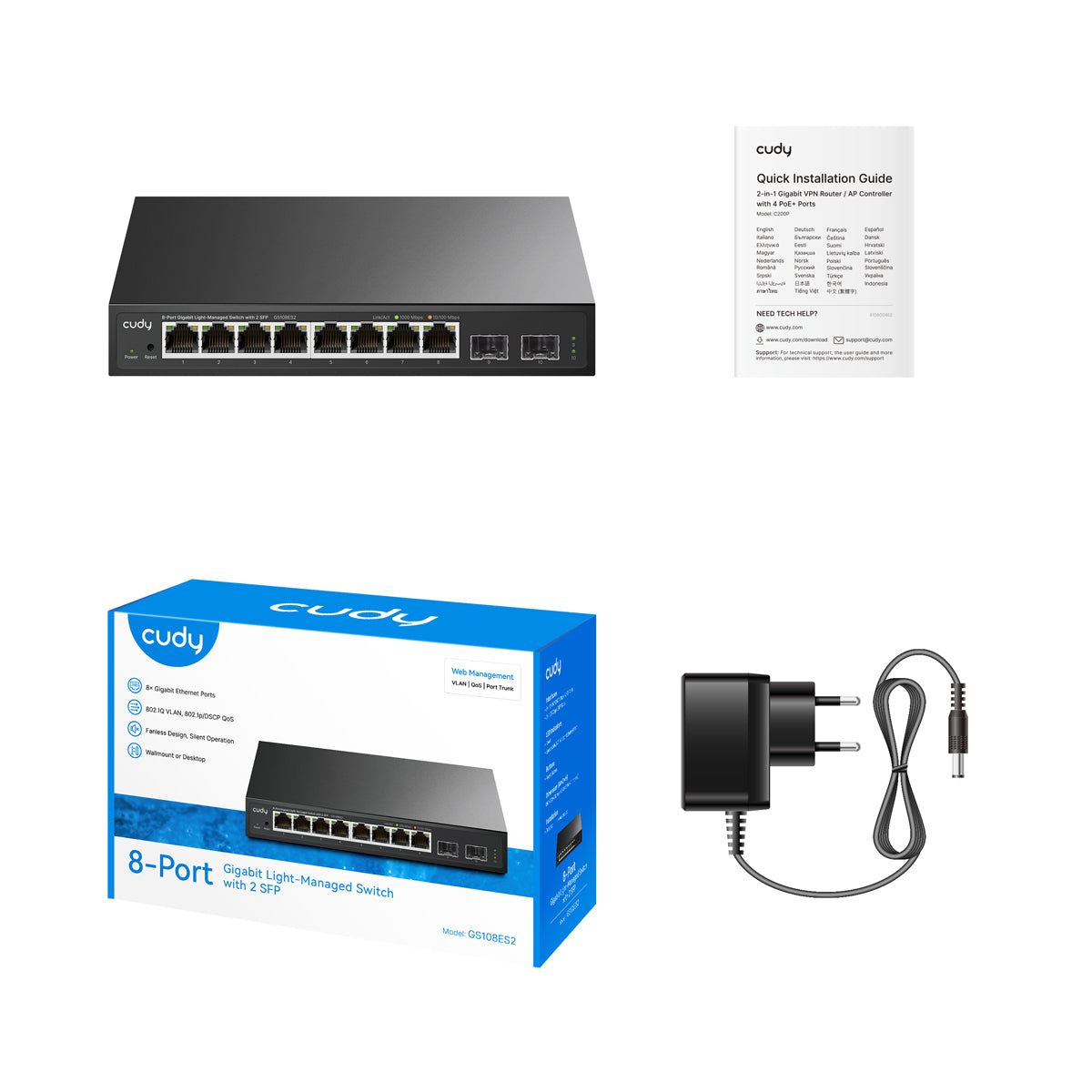

Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 209 mm |
| Package depth | 132 mm |
| Package height | 81.5 mm |
| Package weight | 714.9 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 7.2 kg |
| Master (outer) case width | 438 mm |
| Master (outer) case length | 428 mm |
| Master (outer) case height | 151 mm |
| Master (outer) case gross weight | 7.9 kg |
| Products per master (outer) case | 10 pc(s) |
