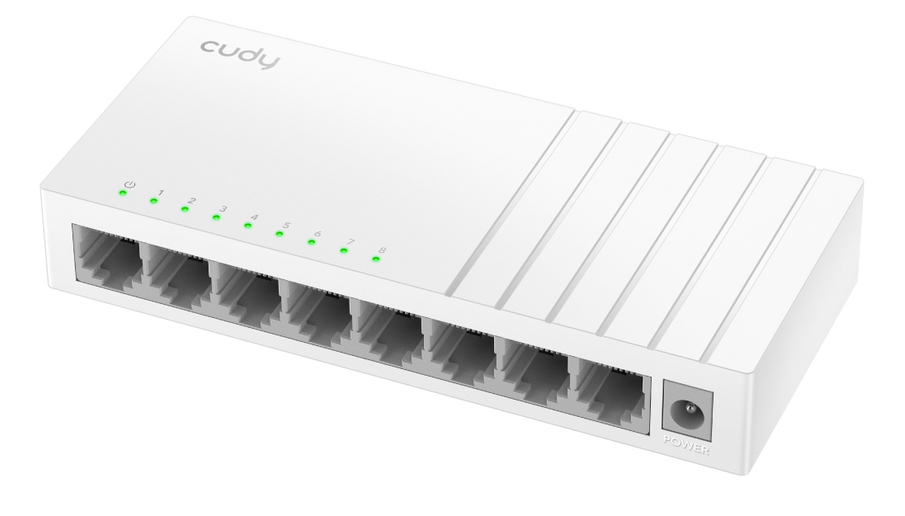

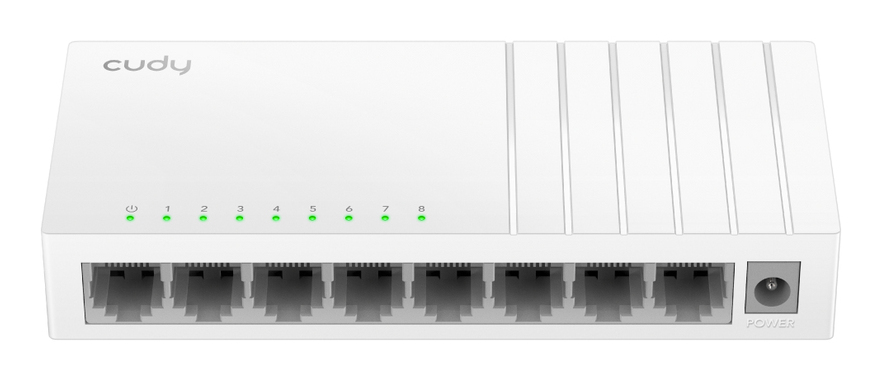

8-Port 10/100 Mbps Unmanaged Switch, FS108D 4.0
Model 8-Port 10/100 Mbps Unmanaged Switch, FS108D 4.0Part no. FS108D 4.0
40 specifications
- Weight78.4 g
- ColourWhite
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- Copper ethernet cabling technology10BASE-T, 100BASE-TX
- MAC address table2048 entries
Overview
- Weight
- 78.4 g
- Colour
- White
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX
- MAC address table
- 2048 entries
- Brand
- Cudy
- Category
- Network Switch
- Model
- 8-Port 10/100 Mbps Unmanaged Switch, FS108D 4.0
- Part number
- FS108D 4.0
- Also known as
- Cudy 8-Port 10/100 Mbps Unmanaged Switch, FS108D 4.0 Fast Ethernet (10/100) White
Specifications
40 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat3, Cat5 |
| Ethernet LAN data rates | 10,100 Mbit/s |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2048 entries |
| Switching capacity | 1.6 Gbit/s |
| Forwarding rate | 1.1904 Mpps |
| Packet buffer memory | 0.07125 MB |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Housing material | Plastic |
| LED indicators | LAN, Power |
| Wall mountable | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 5 V |
| Input current | 0.55 A |
| Power consumption (typical) | 0.4 W |
| Power consumption (max) | 0.75 W |
Other features
| Specification | Value |
|---|---|
| Warranty period | 1 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 138 mm |
| Depth | 61.5 mm |
| Height | 24 mm |
| Weight | 78.4 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB Type-A to USB Type-C |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 151 mm |
| Package depth | 75 mm |
| Package height | 81 mm |
| Package weight | 194.8 g |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
