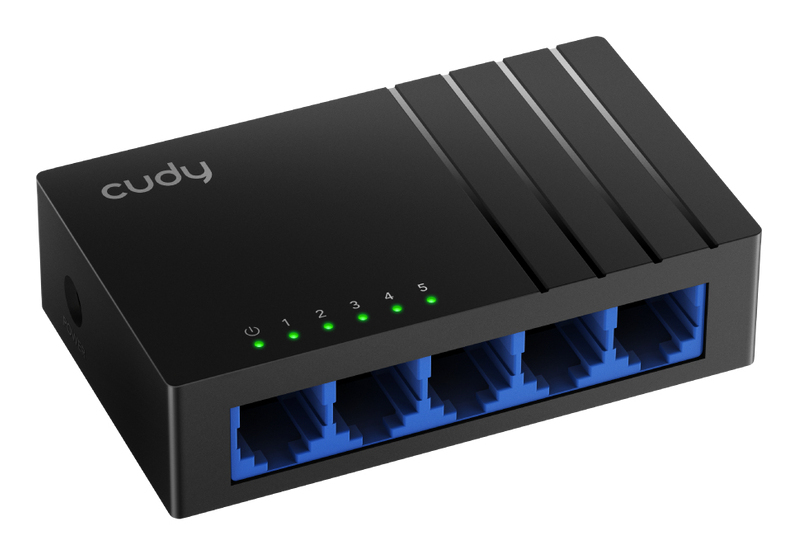

5-Port Gigabit Unmanaged Switch, GS105D 5.0
Model 5-Port Gigabit Unmanaged Switch, GS105D 5.0Part no. GS105D 5.0
48 specifications
- Weight57.1 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- Copper ethernet cabling technology100BASE-TX, 10BASE-T, 1000BASE-T
- MAC address table2048 entries
Overview
- Weight
- 57.1 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Copper ethernet cabling technology
- 100BASE-TX, 10BASE-T, 1000BASE-T
- MAC address table
- 2048 entries
- Brand
- Cudy
- Category
- Network Switch
- Model
- 5-Port Gigabit Unmanaged Switch, GS105D 5.0
- Part number
- GS105D 5.0
- Also known as
- Cudy 5-Port Gigabit Unmanaged Switch, GS105D 5.0 L2 Gigabit Ethernet (10/100/1000) Black
Specifications
48 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3i, IEEE 802.3x |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T, 1000BASE-T |
| Cable types supported | Cat5, Cat5e, Cat3 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2048 entries |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.125 MB |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Plastic |
| LED indicators | Activity, Link, Power, Speed |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 5 V |
| Input current | 0.55 A |
| Power consumption (typical) | 0.2 W |
| Power consumption (max) | 1.2 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Bandwidth | 1 Gbit/s |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 88 mm |
| Depth | 52.5 mm |
| Height | 24 mm |
| Weight | 57.1 g |

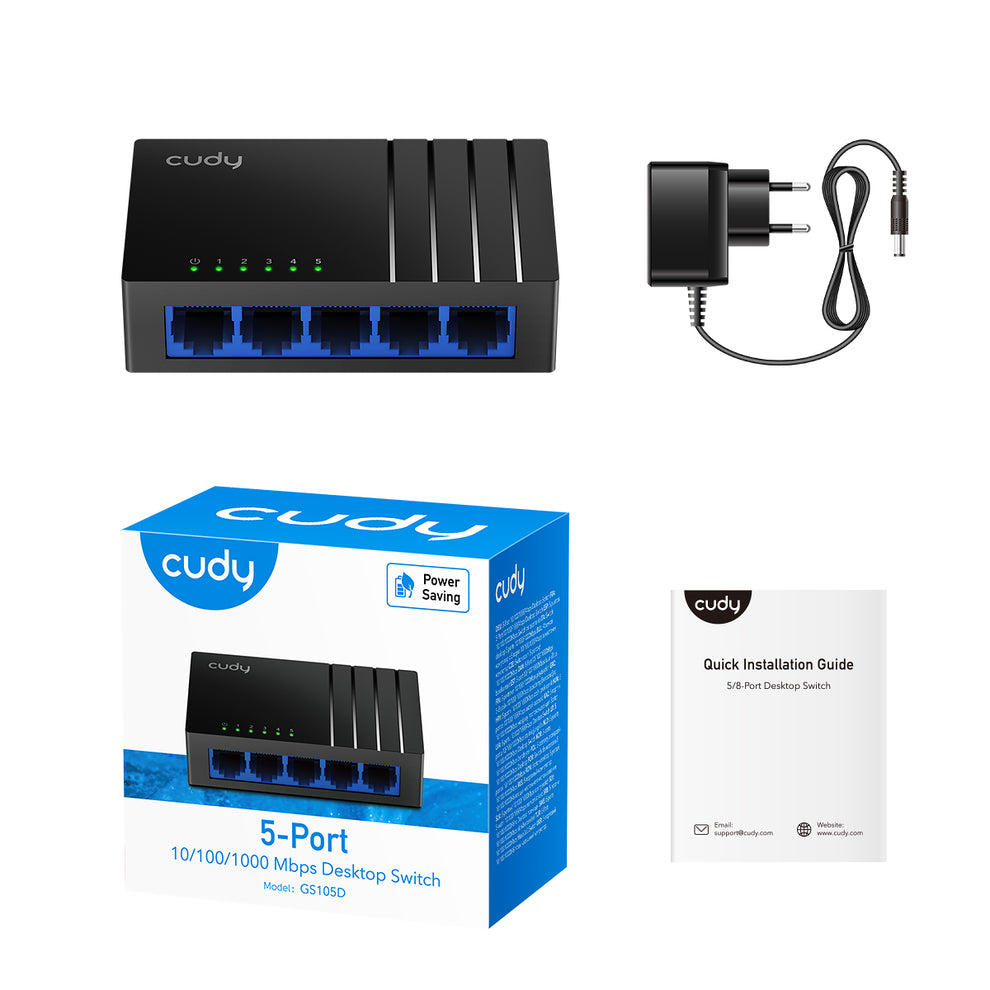

Packaging content
| Specification | Value |
|---|---|
| Cables included | DC |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 92 mm |
| Package depth | 88 mm |
| Package height | 57 mm |
| Package weight | 115.6 g |
