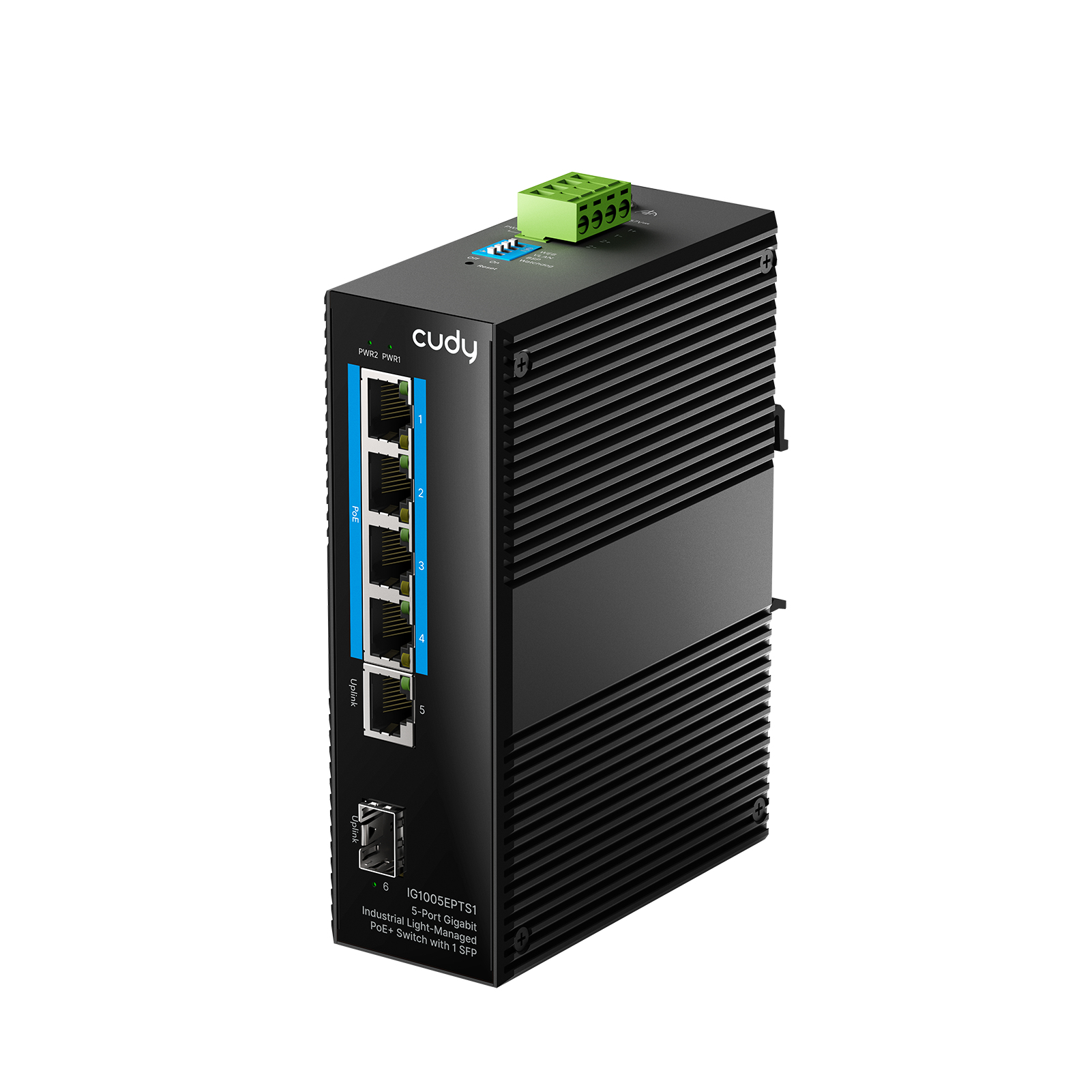

5-Port Gigabit Industrial Easy-Managed PoE+ Switch with 1 SFP, IG1005EPTS1 1.0
Model 5-Port Gigabit Industrial Easy-Managed PoE+ Switch with 1 SFP, IG1005EPTS1 1.0Part no. IG1005EPTS1 1.0EAN 6971690795177
66 specifications
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity4
- 10G supportNo
- MAC address table2048 entries
- IGMP snoopingYes
Overview
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 4
- 10G support
- No
- MAC address table
- 2048 entries
- IGMP snooping
- Yes
- Brand
- Cudy
- Category
- Network Switch
- Model
- 5-Port Gigabit Industrial Easy-Managed PoE+ Switch with 1 SFP, IG1005EPTS1 1.0
- Part number
- IG1005EPTS1 1.0
- EAN / UPC
- 6971690795177
- Also known as
- Cudy 5-Port Gigabit Industrial Easy-Managed PoE+ Switch with 1 SFP, IG1005EPTS1 1.0 L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
66 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 4 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 1 |
| Uplink ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3x, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.1Q |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X |
| Cable types supported | Cat3, Cat5, Cat5e |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Cable length detection | Yes |
| Flow control support | Yes |
| Rate limiting | Yes |
| VLAN support | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN |
| Number of VLANs | 4096 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2048 entries |
| Switching capacity | 12.5 Gbit/s |
| Forwarding rate | 8.929 Mpps |
| Number of trunks | 2 |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| Packet buffer memory | 0.125 MB |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| Loop protection | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| Housing material | Aluminium |
| Reset button | Yes |
| LED indicators | Power, Link, Activity, PoE, Status |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP40 |
Performance
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| DC input voltage | 44 - 57 V |
| Power consumption (max) | 150 W |
| Power saving mode (EEE) | Yes |
| Surge protection | Yes |
| Surge protection voltage | 15 kV |
| Power protection features | Short circuit |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
Other features
| Specification | Value |
|---|---|
| Terminal block port | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 103 mm |
| Depth | 47.5 mm |
| Height | 144 mm |

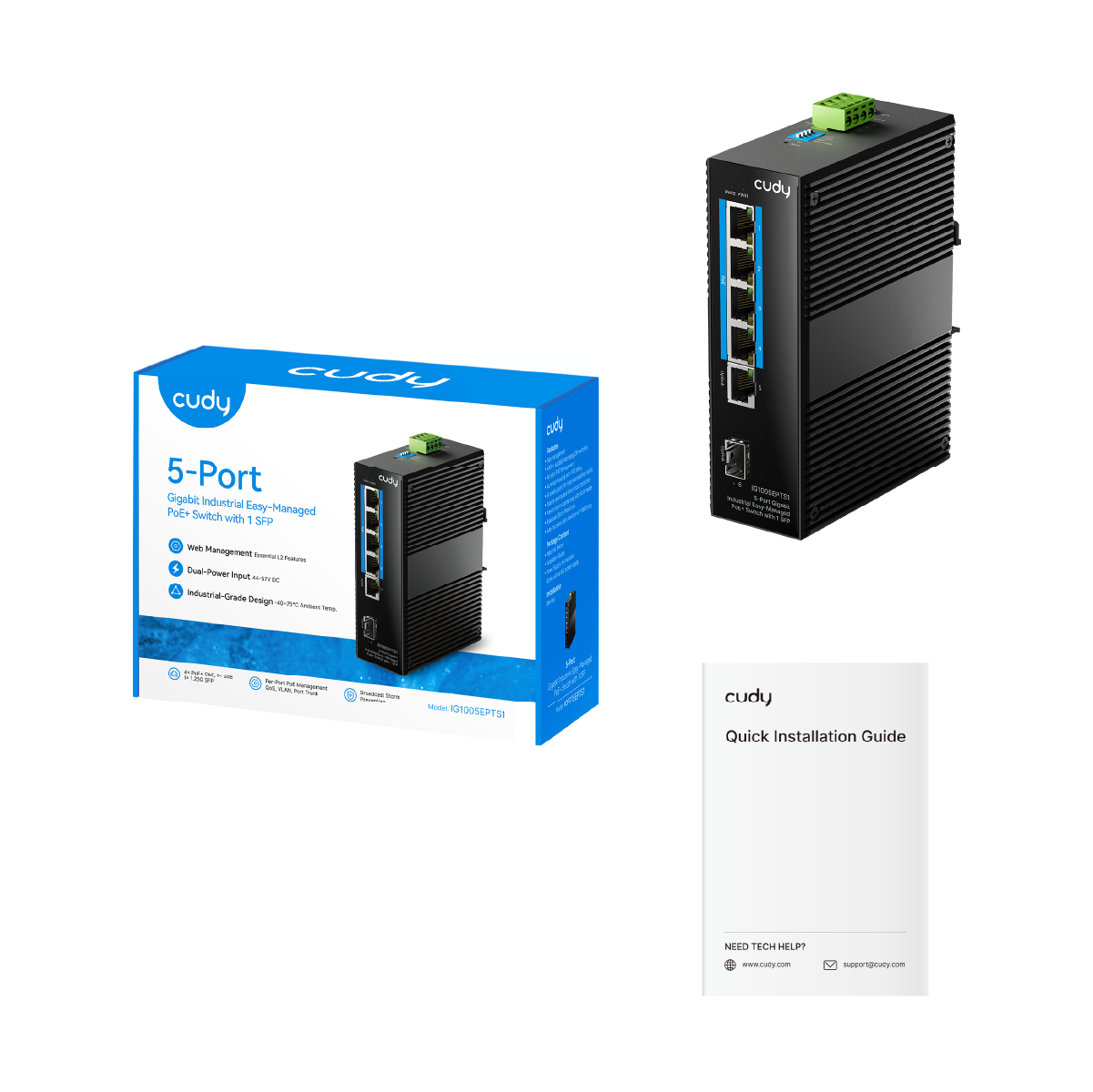

Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 207 mm |
| Package depth | 154 mm |
| Package height | 75 mm |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 439 mm |
| Master (outer) case length | 405 mm |
| Master (outer) case height | 331 mm |
| Products per master (outer) case | 20 pc(s) |
