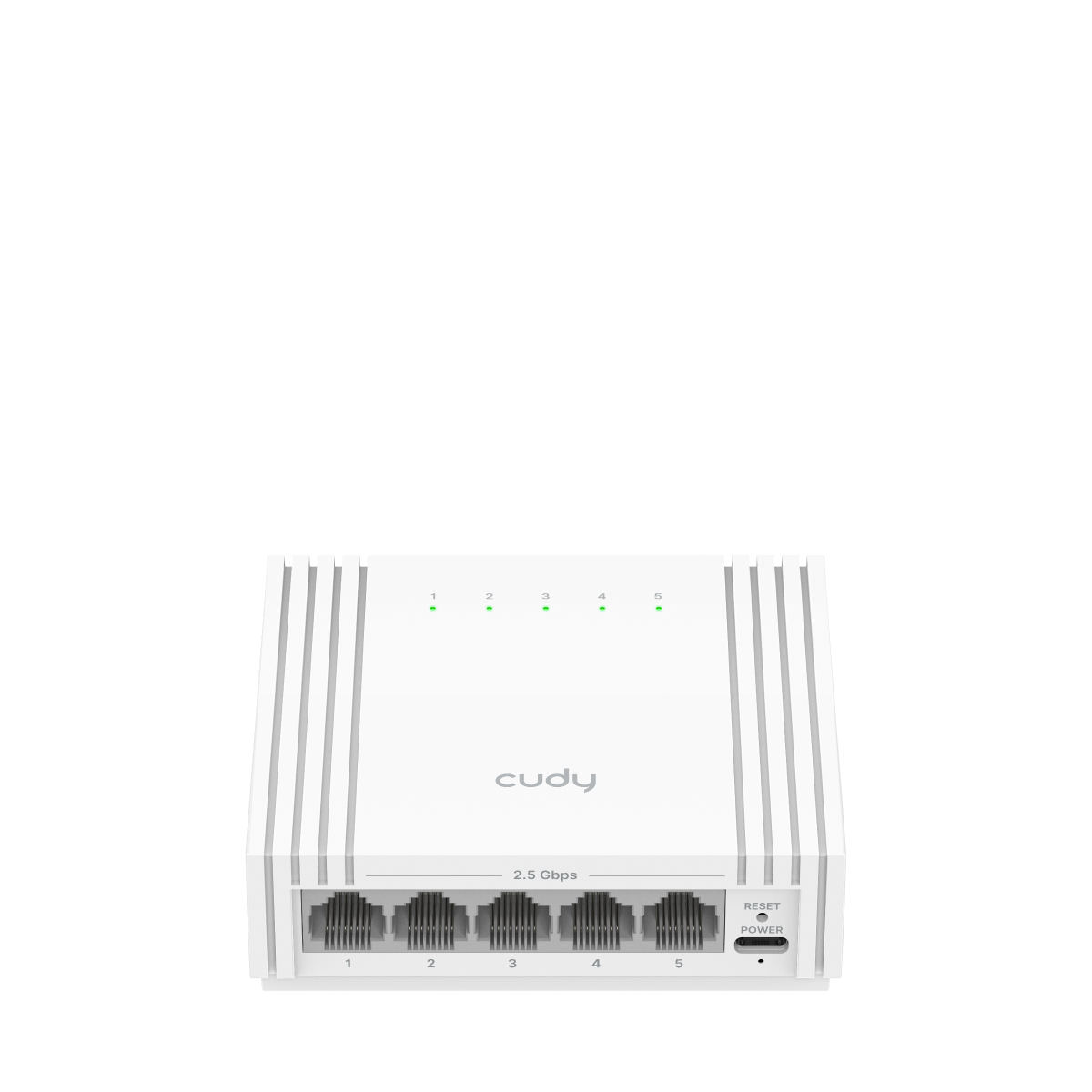

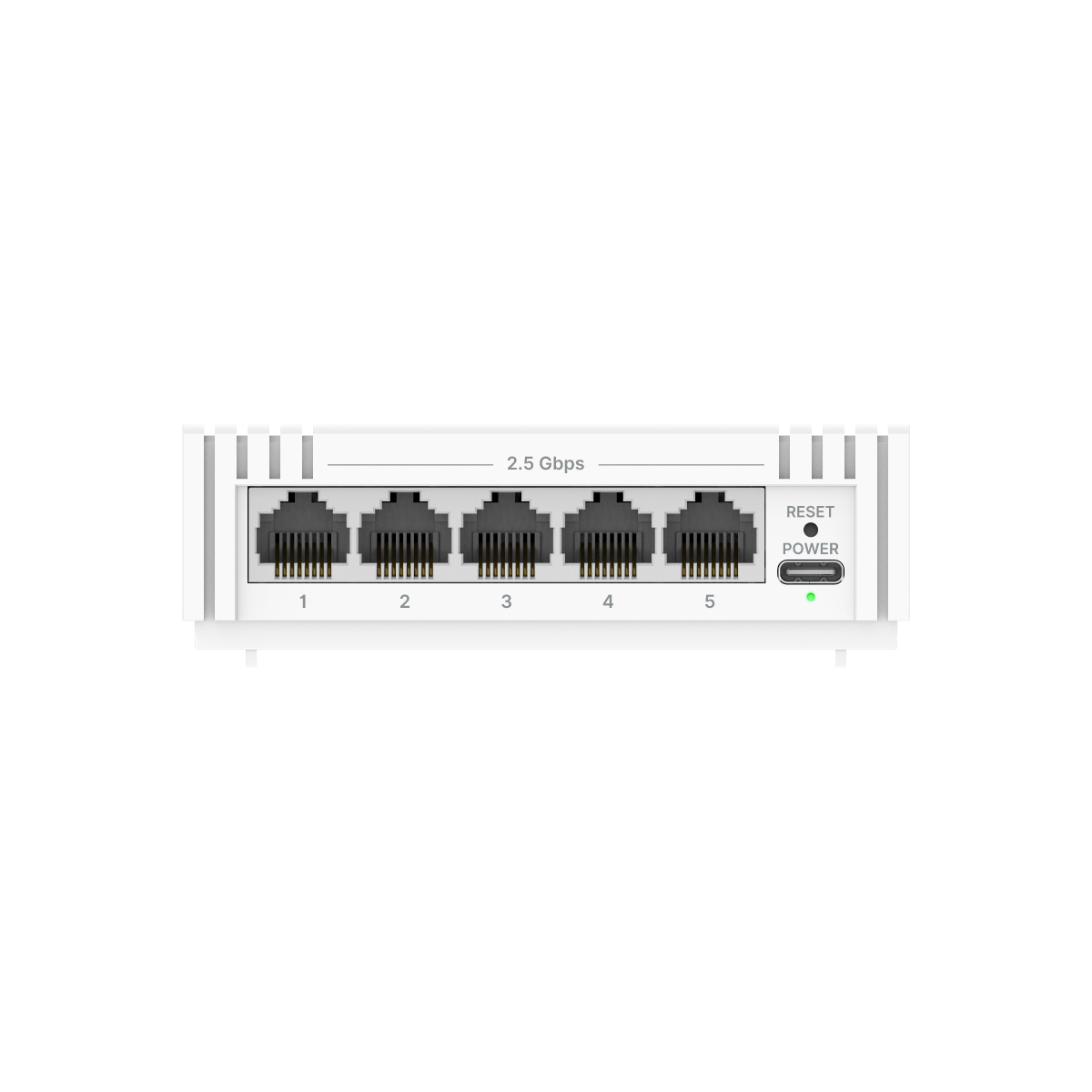

5-Port 2.5G Easy-Managed Switch with USB-C Power Input, HS105U 1.0
Model 5-Port 2.5G Easy-Managed Switch with USB-C Power Input, HS105U 1.0Part no. HS105U 1.0EAN 6971690795245
64 specifications
- Weight181.2 g
- ColourWhite
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table4096 entries
Overview
- Weight
- 181.2 g
- Colour
- White
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 4096 entries
- Brand
- Cudy
- Category
- Network Switch
- Model
- 5-Port 2.5G Easy-Managed Switch with USB-C Power Input, HS105U 1.0
- Part number
- HS105U 1.0
- EAN / UPC
- 6971690795245
- Also known as
- Cudy 5-Port 2.5G Easy-Managed Switch with USB-C Power Input, HS105U 1.0 L2 2.5G Ethernet (100/1000/2500) White
Specifications
64 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 5 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| USB Type-C ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3x, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3az |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 2.5GBASE-T |
| Cable types supported | Cat3, Cat5, Cat5e |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| VLAN support | Yes |
| Number of VLANs | 4096 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4096 entries |
| Switching capacity | 25 Gbit/s |
| Forwarding rate | 18.6 Mpps |
| Number of trunks | 2 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.5 MB |
Security
| Specification | Value |
|---|---|
| Loop protection | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | White |
| Housing material | Plastic |
| Reset button | Yes |
| LED indicators | Power, Link, Activity |
| Wall mountable | Yes |
| Version | 1.0 |
Performance
| Specification | Value |
|---|---|
| Flash memory | 4 MB |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source | USB |
| Power supply included | No |
| Power consumption (max) | 6 W |
| Power saving mode (EEE) | Yes |
| Surge protection | Yes |
| Surge protection voltage | 8 kV |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 100% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 92 mm |
| Height | 32.5 mm |
| Weight | 181.2 g |

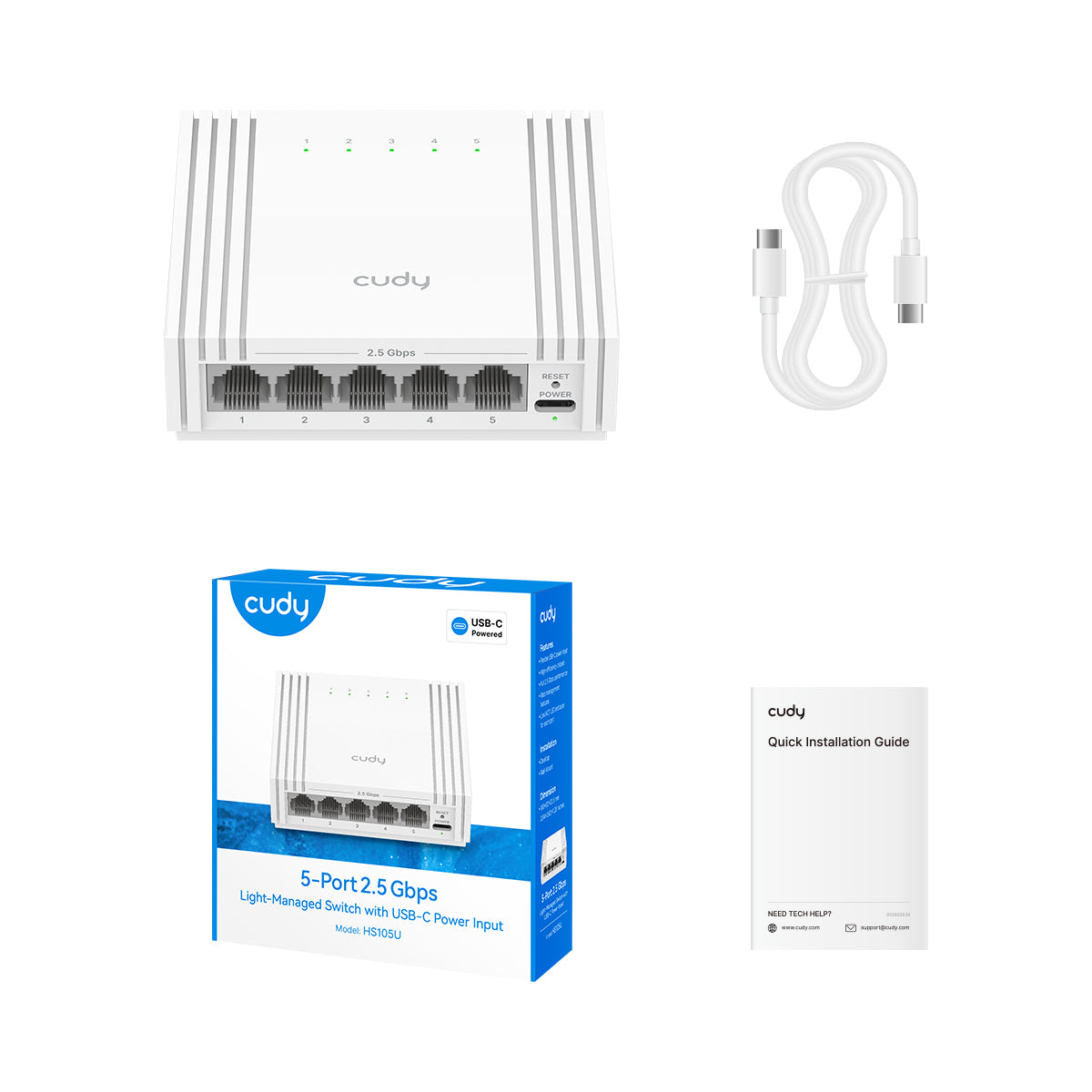

Packaging content
| Specification | Value |
|---|---|
| Cables included | USB Type-C to USB Type-C |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 119 mm |
| Package depth | 109 mm |
| Package height | 37 mm |
| Package weight | 274.5 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 16.5 kg |
| Master (outer) case width | 413 mm |
| Master (outer) case length | 357 mm |
| Master (outer) case height | 262 mm |
| Master (outer) case gross weight | 17.1 kg |
| Products per master (outer) case | 60 pc(s) |
