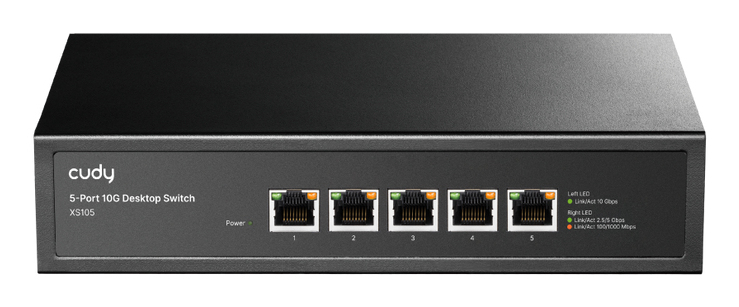

5-Port 10G Desktop Switch, XS105 1.0
Model 5-Port 10G Desktop Switch, XS105 1.0Part no. XS105 1.0EAN 6971690795252
31 specifications
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportYes
- MAC address table16384 entries
- Power sourceAC
- Operating temperature (T-T)0 - 45 °C
Overview
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- Yes
- MAC address table
- 16384 entries
- Power source
- AC
- Operating temperature (T-T)
- 0 - 45 °C
- Brand
- Cudy
- Category
- Network Switch
- Model
- 5-Port 10G Desktop Switch, XS105 1.0
- Part number
- XS105 1.0
- EAN / UPC
- 6971690795252
- Also known as
- Cudy 5-Port 10G Desktop Switch, XS105 1.0 10G Ethernet (100/1000/10000) Black
Specifications
31 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| 10G Ethernet (copper) ports quantity | 5 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3x, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 1000BASE-T, 100BASE-TX, 2.5GBASE-T, 10GBASE-T |
| Cable types supported | Cat5, Cat5e, Cat6, Cat6a |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16384 entries |
| Switching capacity | 100 Gbit/s |
| Forwarding rate | 74.4 Mpps |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.18 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Power, Speed, Link, ACT |
| Wall mountable | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 0 - 100% |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 256 mm |
| Depth | 170 mm |
| Height | 44 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
| User guide | Yes |
