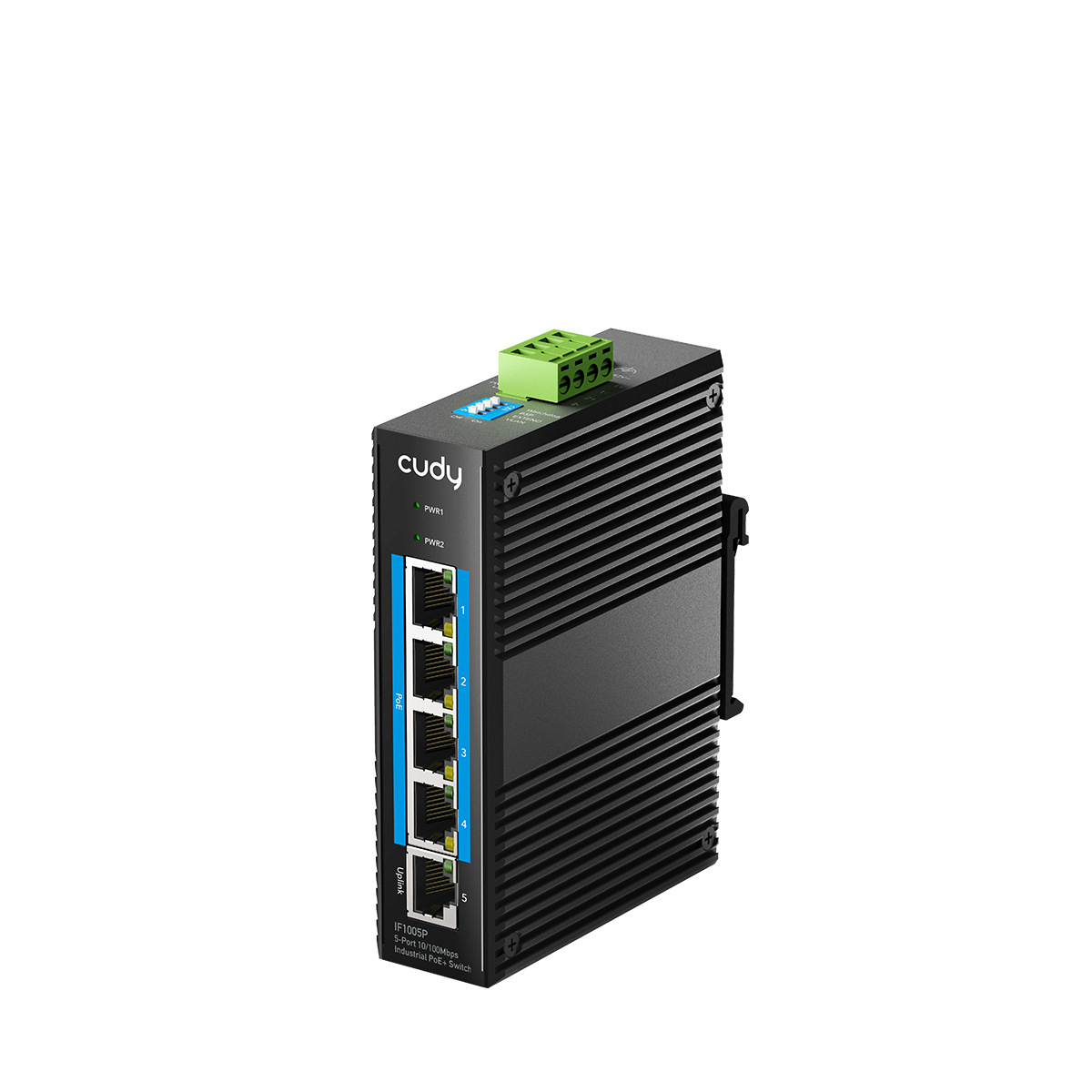

5-Port 10/100 Mbps Industrial PoE+ Switch, IF1005P 2.0
Model 5-Port 10/100 Mbps Industrial PoE+ Switch, IF1005P 2.0Part no. IF1005P 2.0EAN 6971690792190
56 specifications
- Weight341.5 g
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity4
- 10G supportNo
- MAC address table2048 entries
- Power sourceDC
Overview
- Weight
- 341.5 g
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 4
- 10G support
- No
- MAC address table
- 2048 entries
- Power source
- DC
- Brand
- Cudy
- Category
- Network Switch
- Model
- 5-Port 10/100 Mbps Industrial PoE+ Switch, IF1005P 2.0
- Part number
- IF1005P 2.0
- EAN / UPC
- 6971690792190
- Also known as
- Cudy 5-Port 10/100 Mbps Industrial PoE+ Switch, IF1005P 2.0 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Specifications
56 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 4 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Uplink ports quantity | 1 |
| Power connector | Terminal block (4-pin) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat3, Cat5, Cat5e |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2048 entries |
| Switching capacity | 1000 Gbit/s |
| Forwarding rate | 0.744 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 2000 |
| Packet buffer memory | 0.768 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| Housing material | Aluminium |
| LED indicators | Power, Link, Activity, PoE, Status |

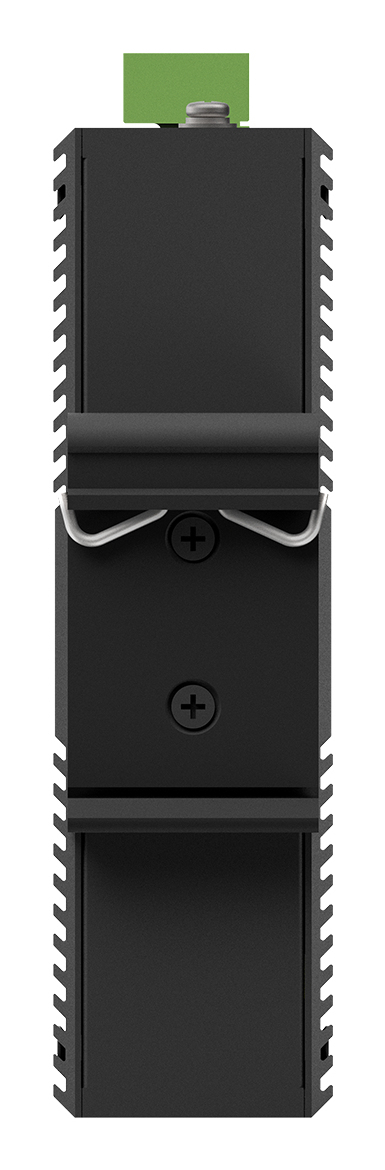

| DIN rail mounting | Yes |
| International Protection (IP) code | IP40 |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| DC input voltage | 44 - 57 V |
| Power consumption (max) | 120 W |
| Surge protection | Yes |
| Surge protection voltage | 15 kV |
| Power protection features | Short circuit |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
Other features
| Specification | Value |
|---|---|
| Terminal block port | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 86 mm |
| Depth | 33.5 mm |
| Height | 118 mm |
| Weight | 341.5 g |

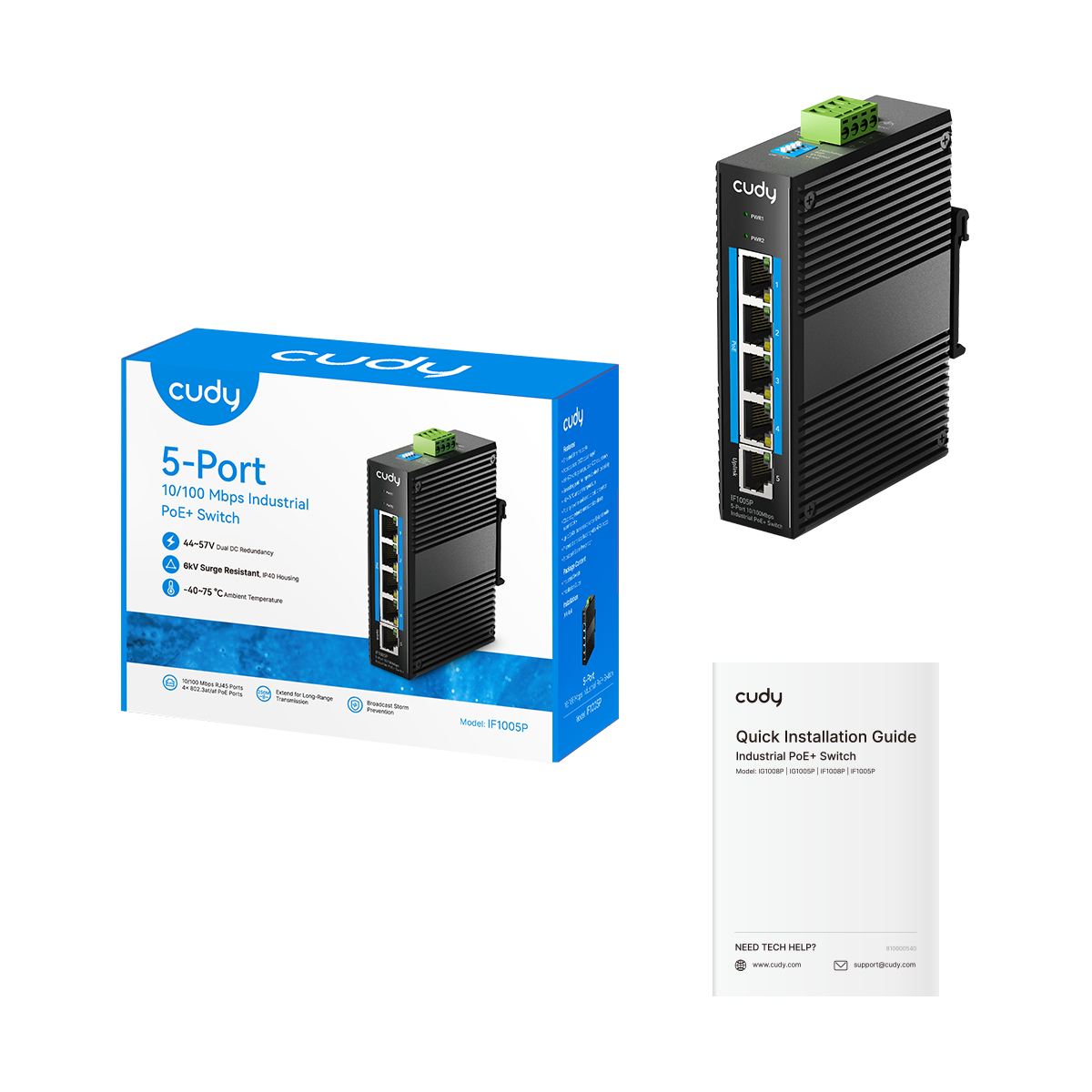

Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 182 mm |
| Package depth | 137 mm |
| Package height | 65 mm |
| Package weight | 473 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 9.5 kg |
| Master (outer) case width | 388 mm |
| Master (outer) case length | 348 mm |
| Master (outer) case height | 298 mm |
| Master (outer) case gross weight | 10.1 kg |
| Products per master (outer) case | 20 pc(s) |
