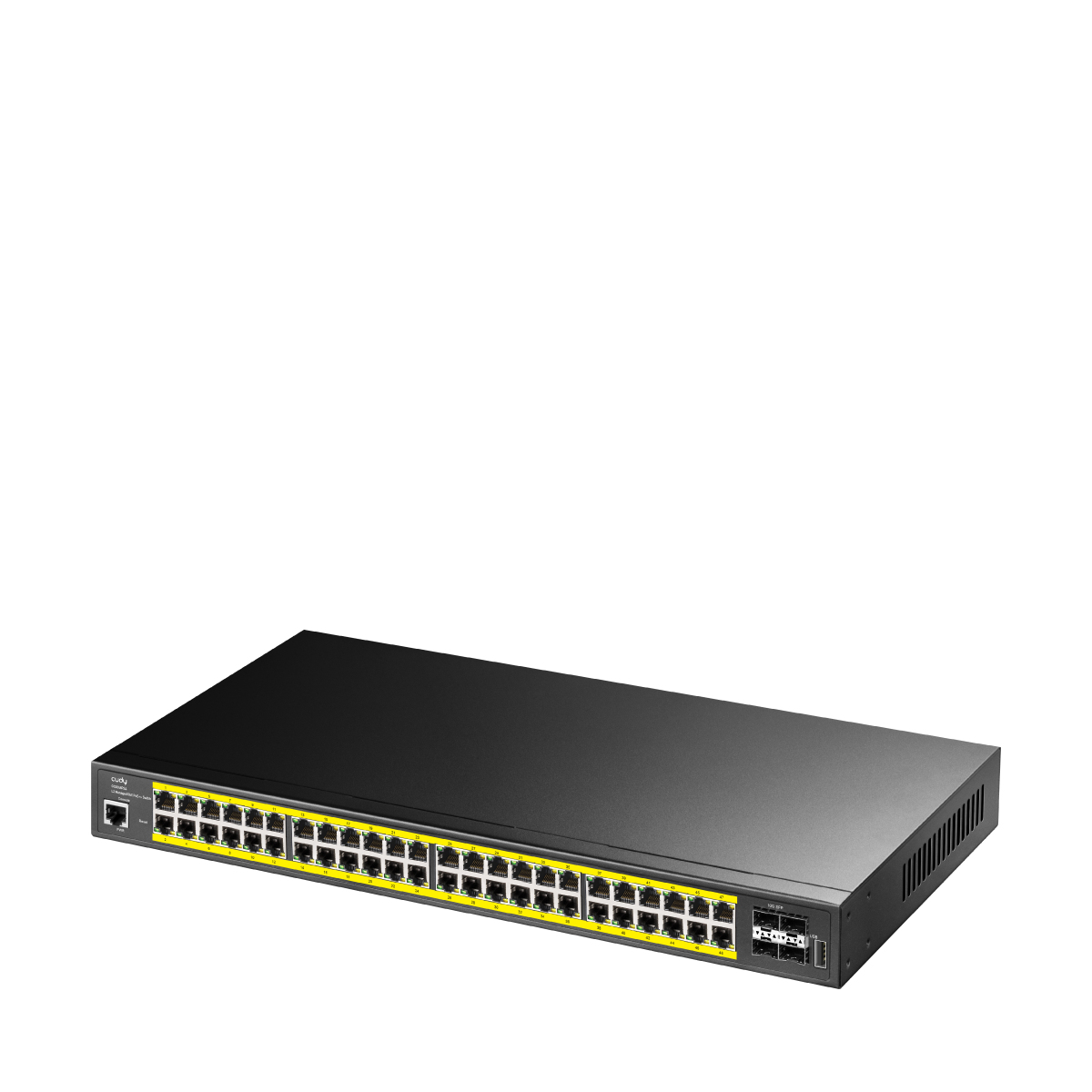

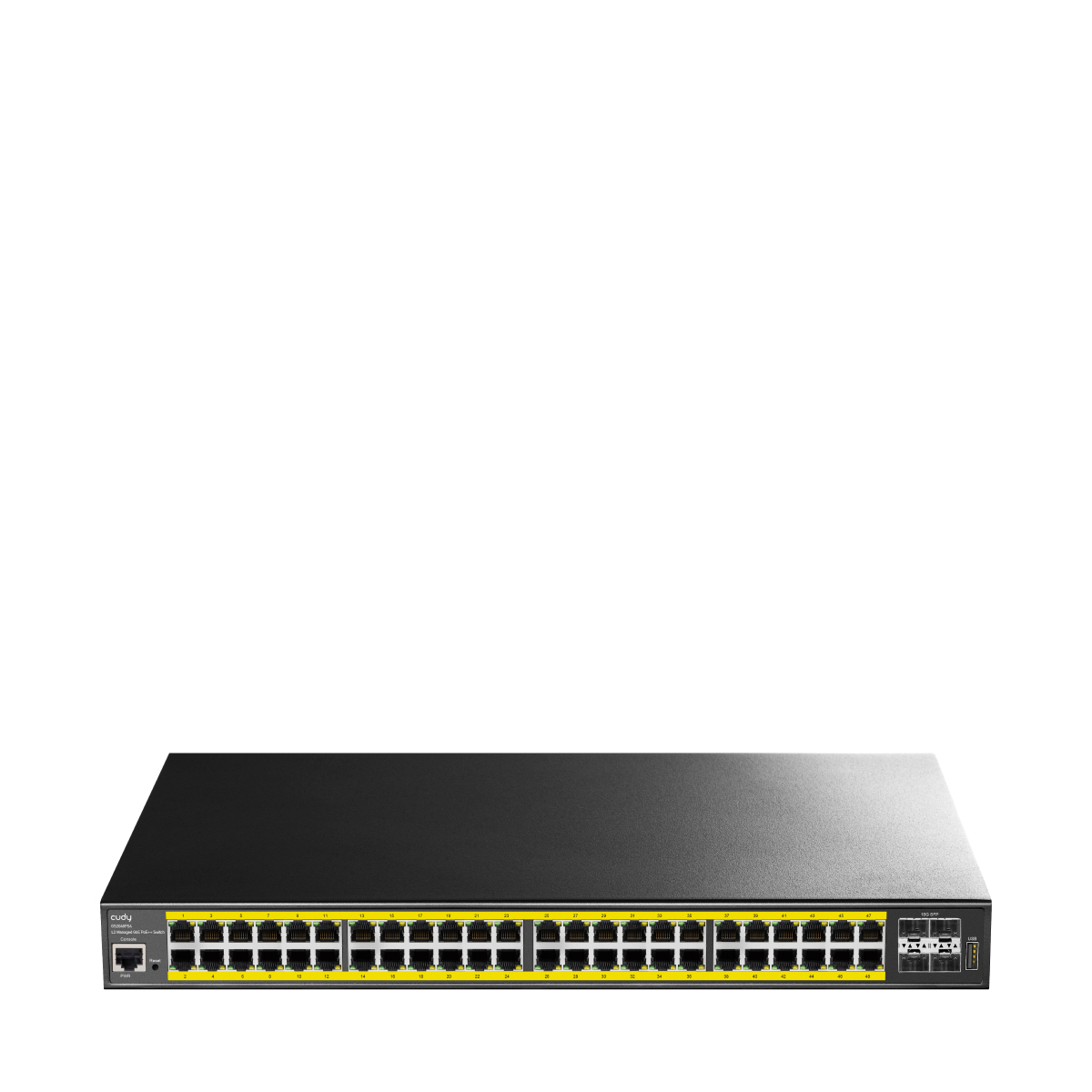

Cudy 48-Port Gigabit Managed PoE++ Switch with 4 10G SFP+, GS2048PS4 1.0

48-Port Gigabit Managed PoE++ Switch with 4 10G SFP+, GS2048PS4 1.0

Model 48-Port Gigabit Managed PoE++ Switch with 4 10G SFP+, GS2048PS4 1.0Part no. GS2048PS4 1.0EAN 6971690792312

81 specifications

Memory256 MB
Weight4.91 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity48
10G supportNo

See all specifications

Overview

Memory: 256 MB
Weight: 4.91 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 48
10G support: No

Brand: Cudy
Category: Network Switch
Model: 48-Port Gigabit Managed PoE++ Switch with 4 10G SFP+, GS2048PS4 1.0
Part number: GS2048PS4 1.0
EAN / UPC: 6971690792312
Also known as: Cudy 48-Port Gigabit Managed PoE++ Switch with 4 10G SFP+, GS2048PS4 1.0 L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Specifications

81 specifications in 16 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	48
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	4
Console port	RJ-45/USB Type-A
Power connector	AC-in jack

Network

Specification	Value
Networking standards	IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3az, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Cable types supported	Cat3, Cat5, Cat5e
Port mirroring	Yes
Broadcast storm control	Yes
Cable length detection	Yes
Ethernet Ring Protection Switching (ERPS)	Yes
Flow control support	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN, Voice VLAN, MAC address-based VLAN, IP subnet–based VLAN, Protocol-based VLAN, Management VLAN
Number of VLANs	4096

Data transmission

Specification	Value
MAC address table	32768 entries
Switching capacity	176 Gbit/s
Forwarding rate	130.944 Mpps
Number of trunks	32
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	12000
Packet buffer memory	2 MB

Security

Specification	Value
DHCP features	DHCP snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication type	IEEE 802.1x, AAA, RADIUS, TACACS+
BPDU filtering/protection	Yes
Queue scheduling algorithms	WRR+SP

Multicast features

Specification	Value
Multicast Listener Discovery (MLD) snooping	Yes

Protocols

Specification	Value
GARP VLAN Registration Protocol (GVRP)	Yes
Routing protocols	RIP, OSPF
IP Source Guard (IPSG)	Yes

Design

Specification	Value
Rack mounting	Yes
Product colour	Black
Housing material	Metal
Reset button	Yes
LED indicators	Power, Link, Activity, PoE
Number of fans	1 fan(s)

Performance

Specification	Value
Internal memory	256 MB
Flash memory	64 MB
Firmware upgradeable	Yes

Power

Specification	Value
Power source	AC
AC input voltage	100 - 240 V
Power saving mode (EEE)	Yes

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	44
Power over Ethernet 4PPoE (PoE++) ports quantity	4

Operational conditions

Specification	Value
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Width	440 mm
Depth	305 mm
Height	44 mm
Weight	4.91 kg

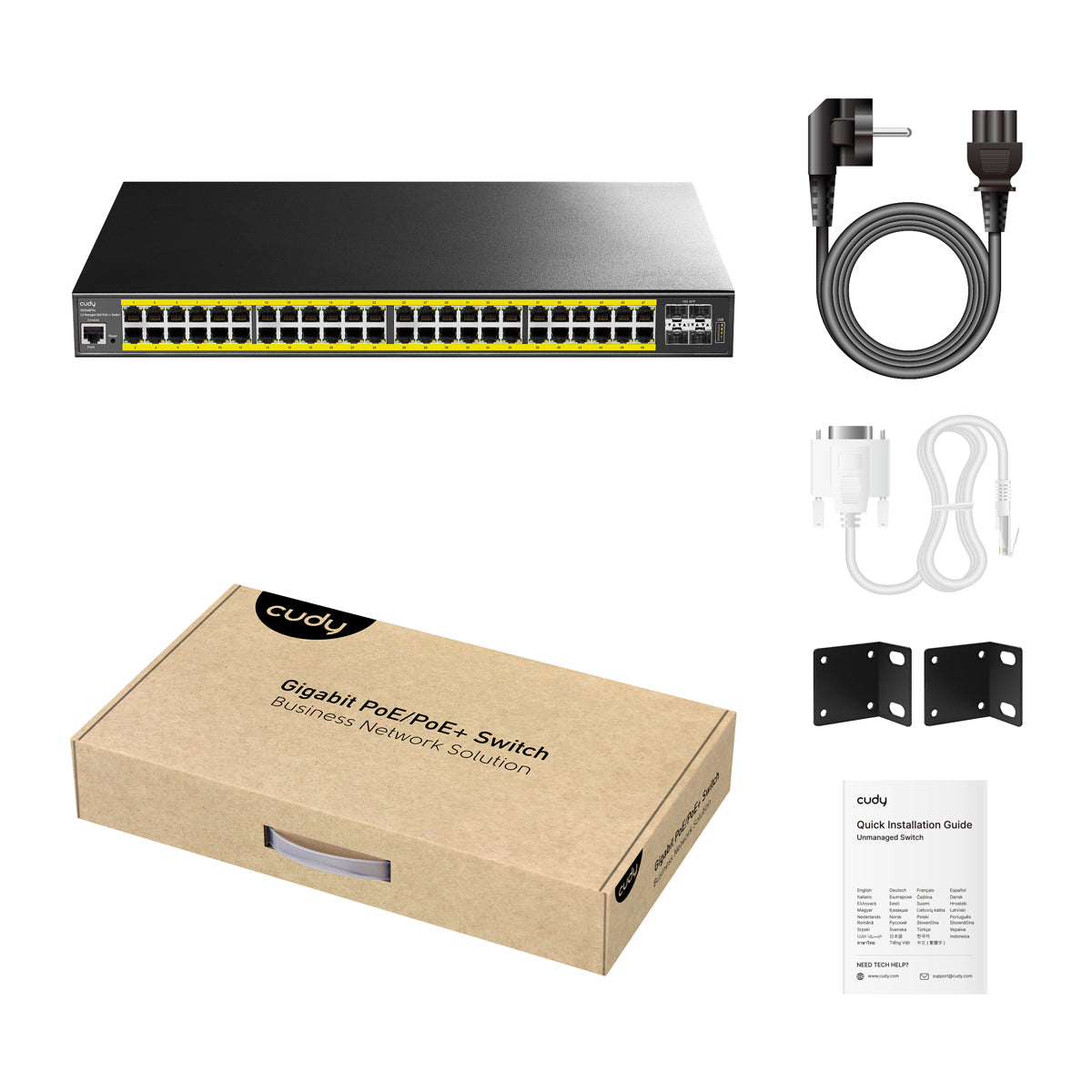

Packaging content

Specification	Value
Cables included	AC, Serial
Manual	Yes
Rack mount kit	Yes

Packaging data

Specification	Value
Package width	505 mm
Package depth	361 mm
Package height	86 mm
Package weight	5.65 kg

Logistics data

Specification	Value
Master (outer) case net weight	16.9 kg
Master (outer) case width	505 mm
Master (outer) case length	275 mm
Master (outer) case height	390 mm
Master (outer) case gross weight	17.9 kg
Products per master (outer) case	3 pc(s)
