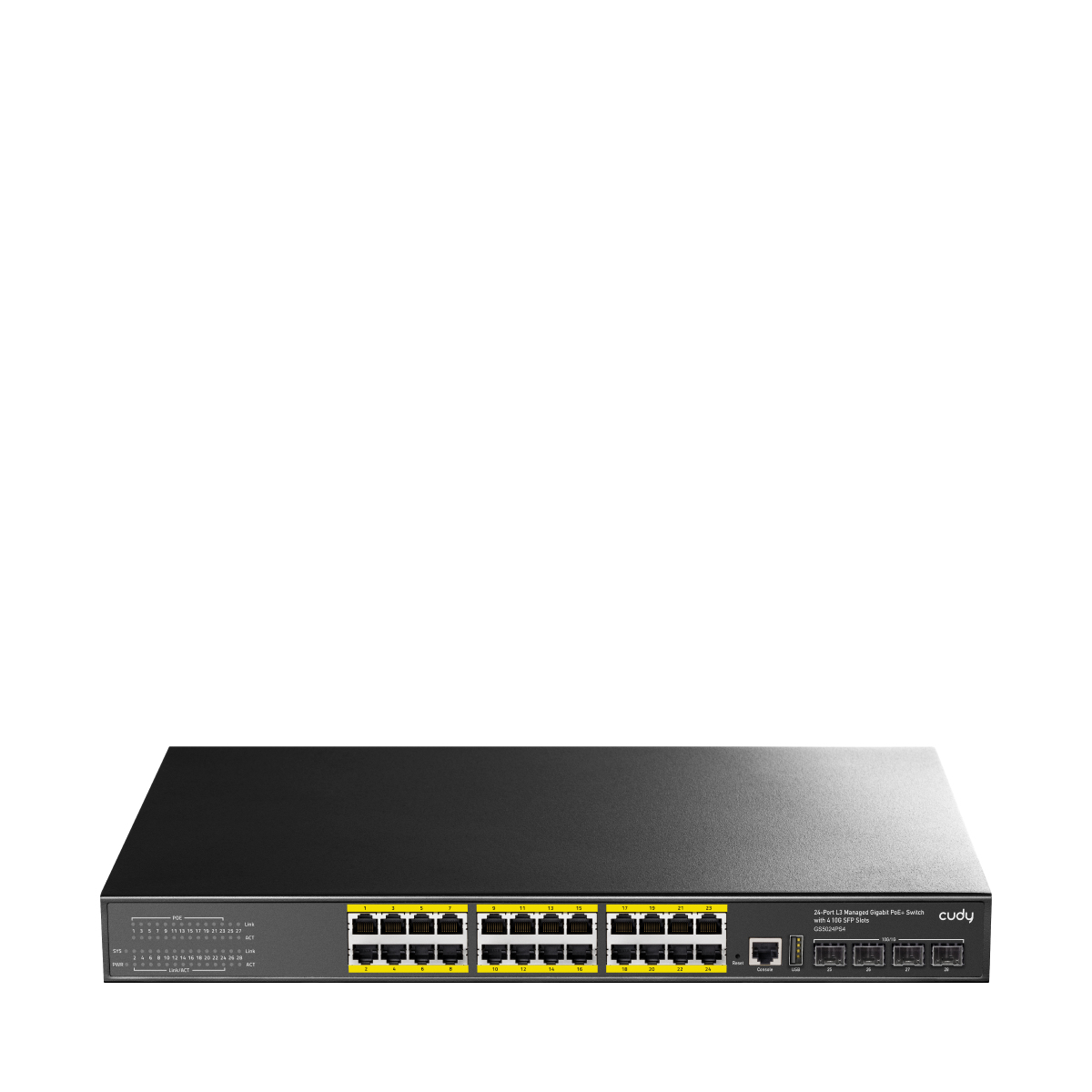

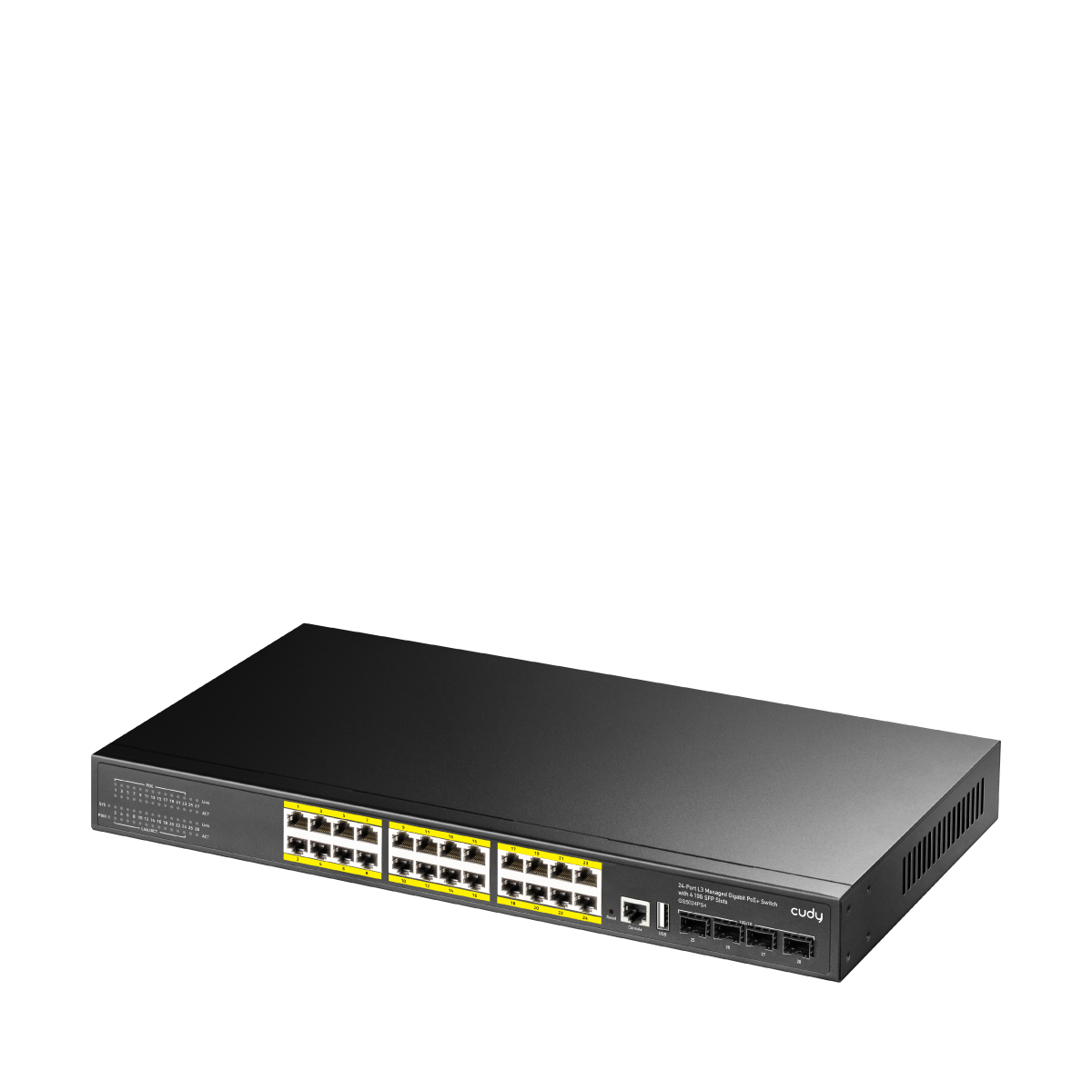

Cudy 24-Port L3 Managed Gigabit PoE+ Switch with 4 10G SFP+, GS5024PS4 1.0

24-Port L3 Managed Gigabit PoE+ Switch with 4 10G SFP+, GS5024PS4 1.0

Model 24-Port L3 Managed Gigabit PoE+ Switch with 4 10G SFP+, GS5024PS4 1.0Part no. GS5024PS4 1.0

85 specifications

Memory128 MB
Weight3.9 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity24
10G supportNo

See all specifications

Overview

Memory: 128 MB
Weight: 3.9 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 24
10G support: No

Brand: Cudy
Category: Network Switch
Model: 24-Port L3 Managed Gigabit PoE+ Switch with 4 10G SFP+, GS5024PS4 1.0
Part number: GS5024PS4 1.0
Also known as: Cudy 24-Port L3 Managed Gigabit PoE+ Switch with 4 10G SFP+, GS5024PS4 1.0 L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Specifications

85 specifications in 16 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	4
Console port	RJ-45/USB Type-A
Power connector	AC-in jack

Network

Specification	Value
Networking standards	IEEE 802.3at, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x, IEEE 802.1w, IEEE 802.1D, IEEE 802.1s, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1x, IEEE 802.3az
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Cable types supported	Cat3, Cat5, Cat5e
Port mirroring	Yes
Broadcast storm control	Yes
Cable length detection	Yes
Flow control support	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN, Voice VLAN, MAC address-based VLAN, Protocol-based VLAN, Management VLAN
Number of VLANs	4096
Port trunking	Yes

Data transmission

Specification	Value
MAC address table	16384 entries
Switching capacity	128 Gbit/s
Forwarding rate	95.232 Mpps
Number of trunks	32
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	12000
Packet buffer memory	1.5 MB

Security

Specification	Value
DHCP features	DHCP snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication type	IEEE 802.1x, RADIUS, TACACS+
BPDU filtering/protection	Yes
Loop protection	Yes
Queue scheduling algorithms	SP, Weighted Round Robin (WRR)
SSH/SSL support	Yes

Multicast features

Specification	Value
Multicast Listener Discovery (MLD) snooping	Yes

Protocols

Specification	Value
GARP VLAN Registration Protocol (GVRP)	Yes
IP Source Guard (IPSG)	Yes

Design

Specification	Value
Rack mounting	Yes
Product colour	Black
Housing material	Metal
Reset button	Yes
LED indicators	Power, System, Link, Activity
Number of fans	1 fan(s)
Version	1.0

Performance

Specification	Value
Internal memory	128 MB
Flash memory	16 MB
Firmware upgradeable	Yes
Telnet	Yes
Mean time between failures (MTBF)	100000 h

Power

Specification	Value
Power source	AC/PoE
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	440 W
Power saving mode (EEE)	Yes

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	390 W

Operational conditions

Specification	Value
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Width	440 mm
Depth	280 mm
Height	44 mm
Weight	3.9 kg

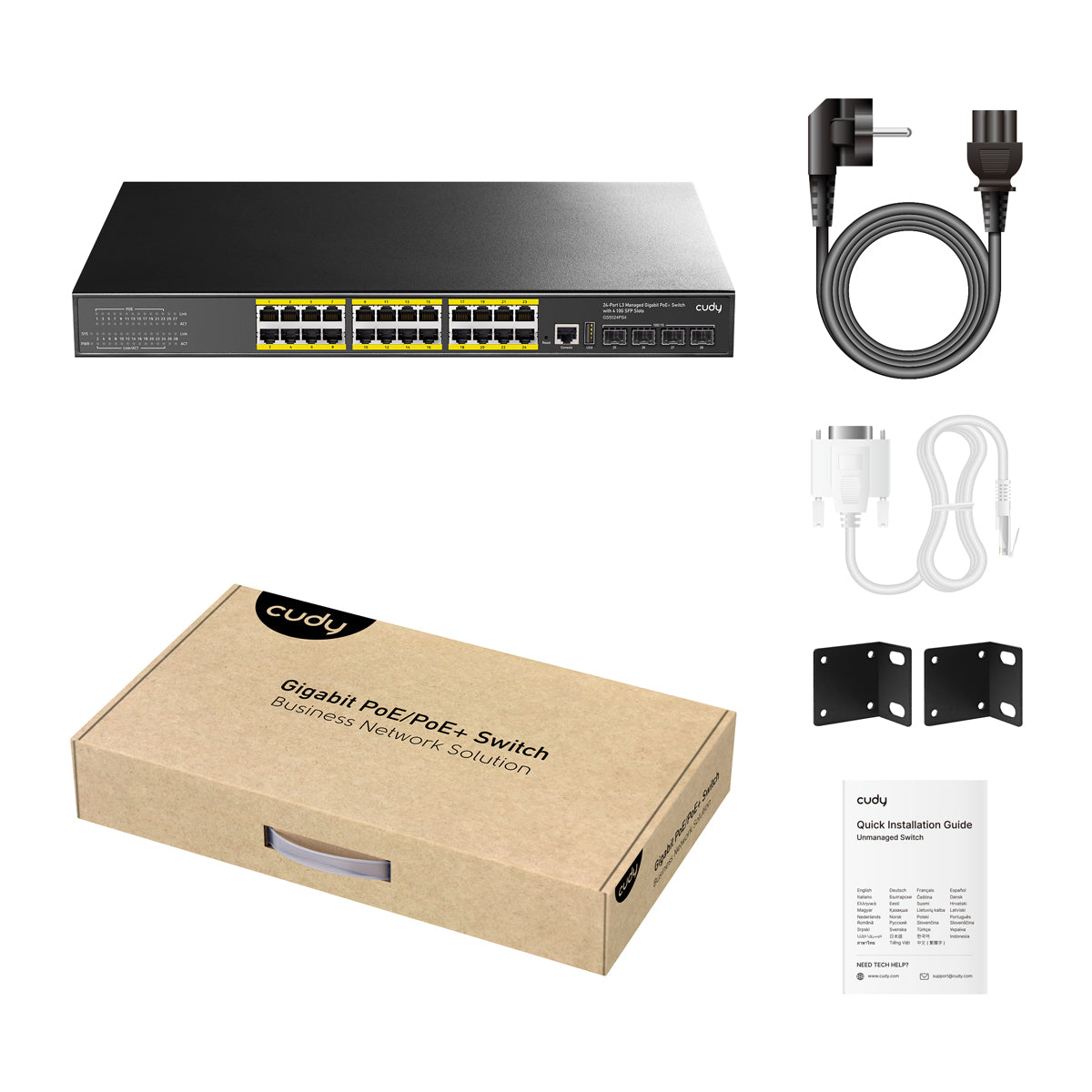

Packaging content

Specification	Value
Cables included	AC, Serial
Manual	Yes

Packaging data

Specification	Value
Package width	500 mm
Package depth	290 mm
Package height	85 mm
Package weight	4.6 kg

Logistics data

Specification	Value
Master (outer) case net weight	18.4 kg
Master (outer) case width	520 mm
Master (outer) case length	445 mm
Master (outer) case height	310 mm
Products per master (outer) case	5 pc(s)
