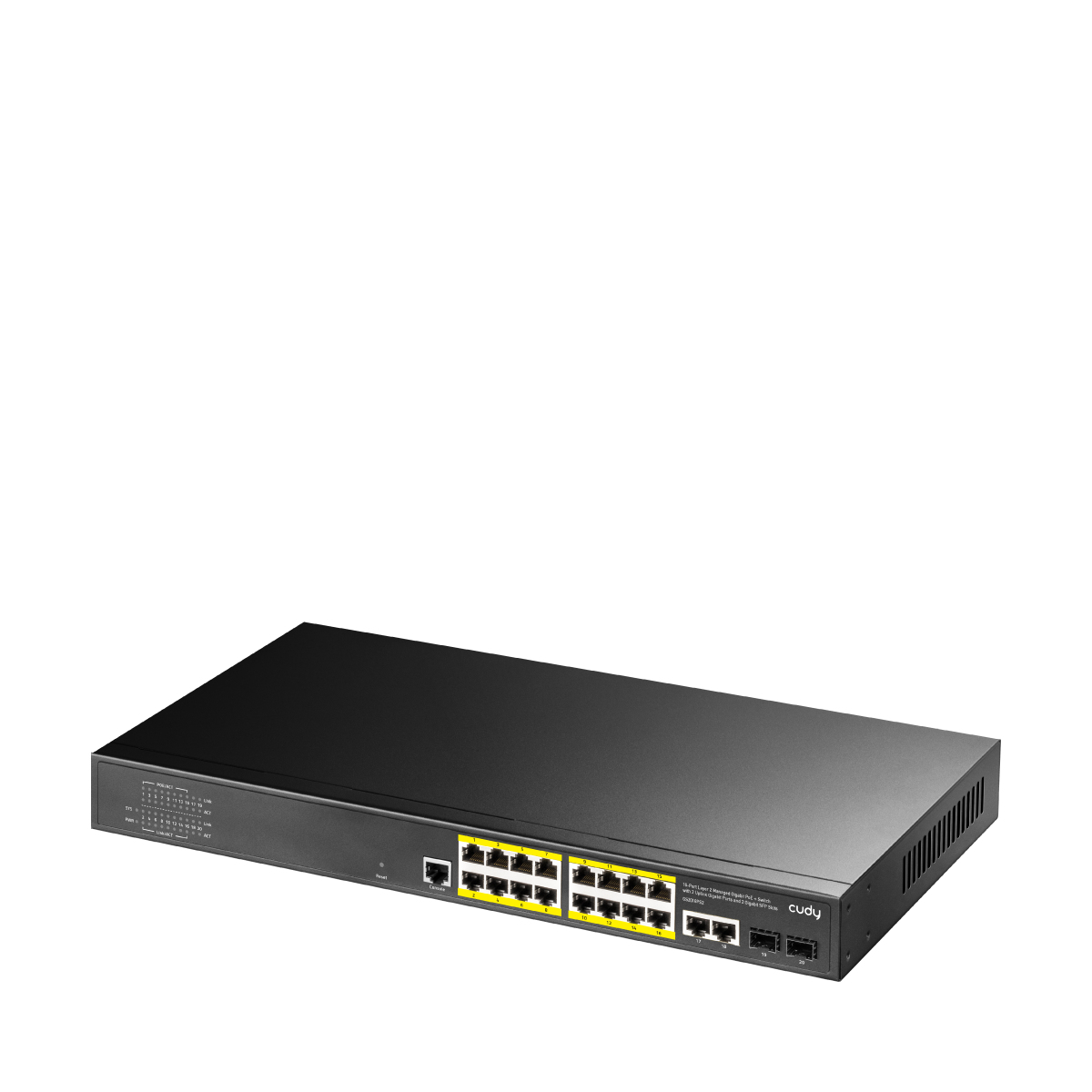

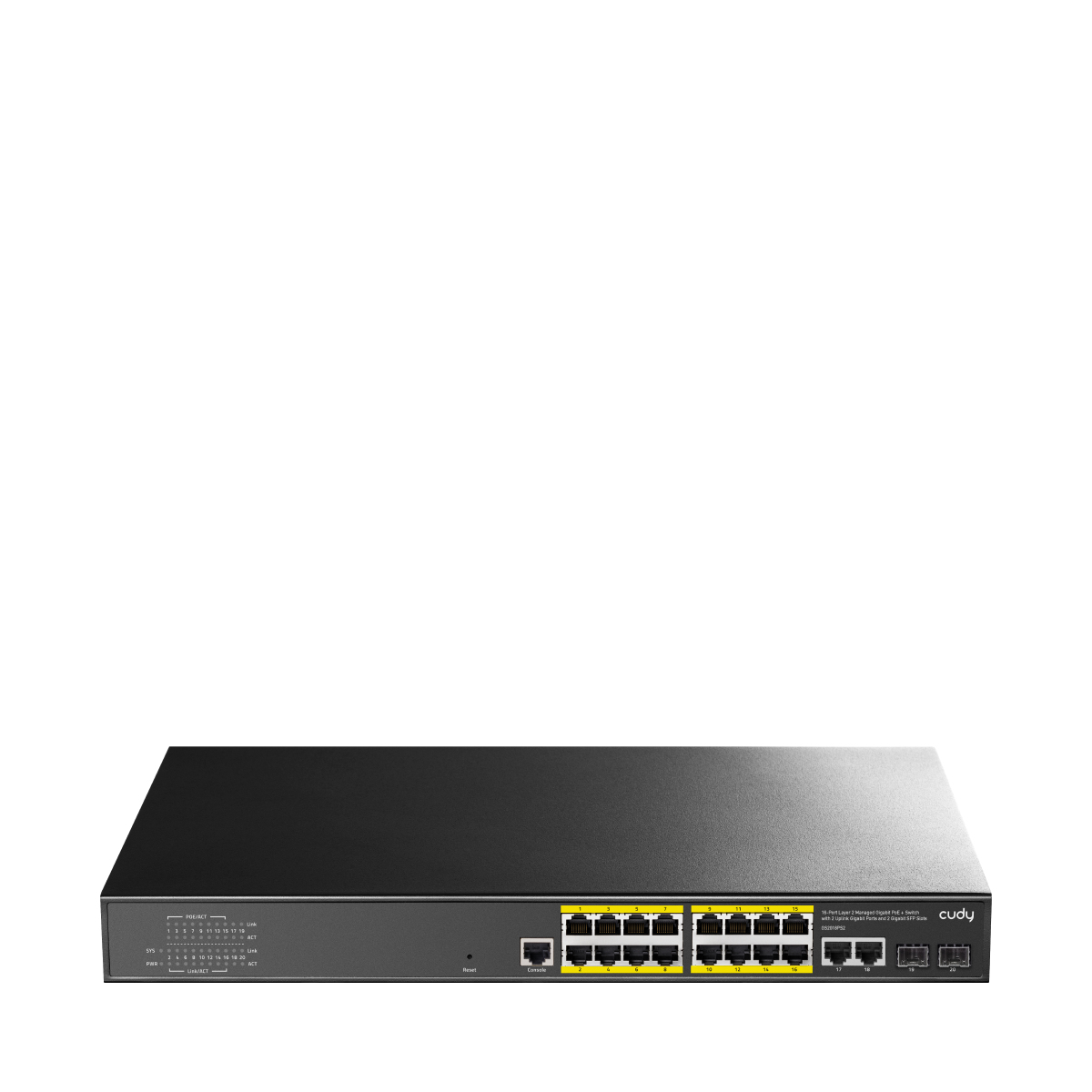

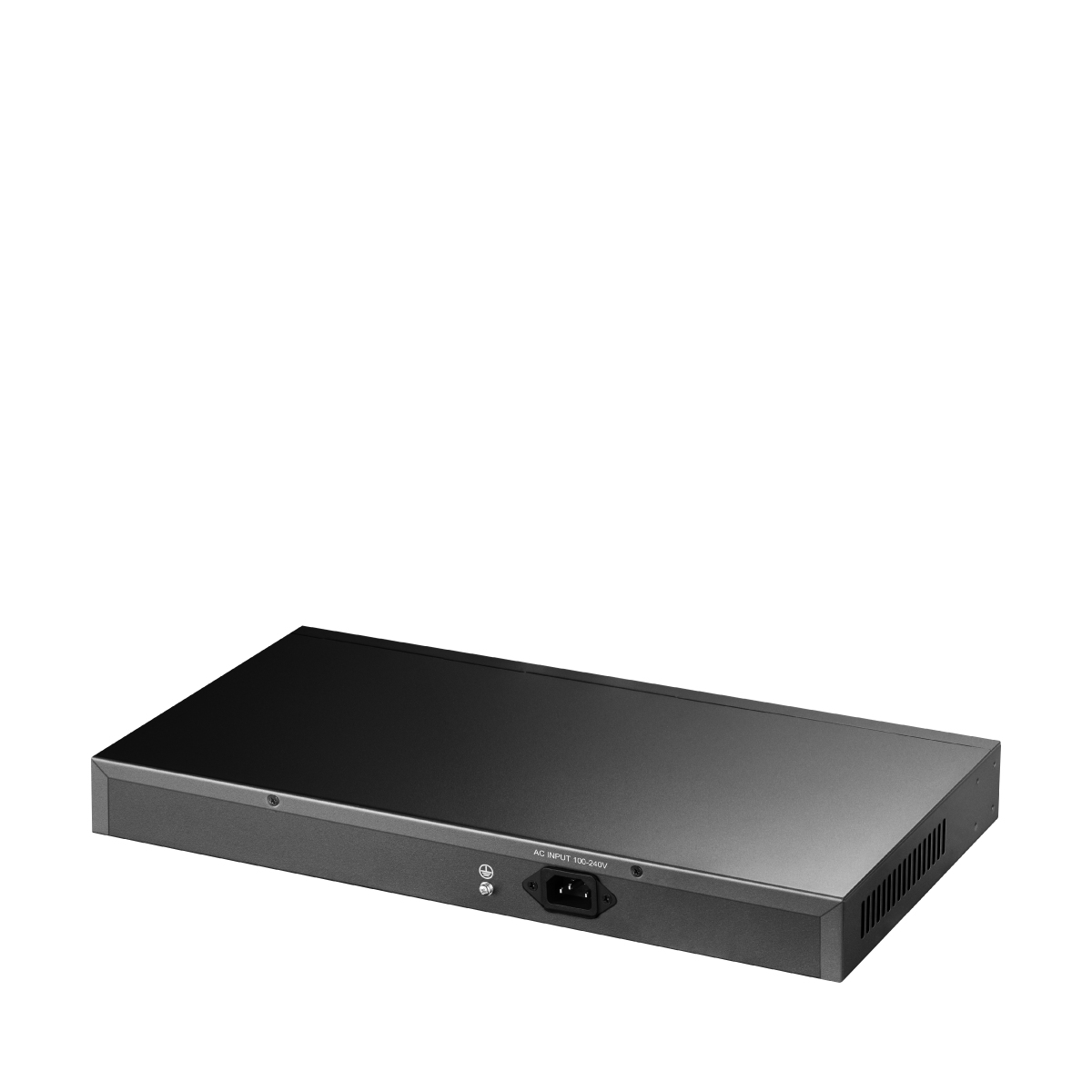

Cudy 16-Port Gigabit Managed PoE+ Switch with 2 Uplink GbE Ports and 2 SFP, GS2018PS2 1.0

16-Port Gigabit Managed PoE+ Switch with 2 Uplink GbE Ports and 2 SFP, GS2018PS2 1.0

Model 16-Port Gigabit Managed PoE+ Switch with 2 Uplink GbE Ports and 2 SFP, GS2018PS2 1.0Part no. GS2018PS2 1.0EAN 6971690790394

90 specifications

Memory128 MB
Type1U
Weight2.73 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity16

See all specifications

Overview

Memory: 128 MB
Type: 1U
Weight: 2.73 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 16

Brand: Cudy
Category: Network Switch
Model: 16-Port Gigabit Managed PoE+ Switch with 2 Uplink GbE Ports and 2 SFP, GS2018PS2 1.0
Part number: GS2018PS2 1.0
EAN / UPC: 6971690790394
Also known as: Cudy 16-Port Gigabit Managed PoE+ Switch with 2 Uplink GbE Ports and 2 SFP, GS2018PS2 1.0 L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Blac

Specifications

90 specifications in 16 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	2
Uplink ports quantity	2
Console port	RJ-45
Power connector	AC-in jack

Network

Specification	Value
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3az, IEEE 802.3ad, IEEE 802.11d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Cable types supported	Cat3, Cat5, Cat5e
Port mirroring	Yes
Broadcast storm control	Yes
Ethernet Ring Protection Switching (ERPS)	Yes
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN, Voice VLAN, MAC address-based VLAN, IP subnet–based VLAN, Management VLAN
Number of VLANs	4096

Data transmission

Specification	Value
MAC address table	8192 entries
Switching capacity	40 Gbit/s
Forwarding rate	29.76 Mpps
Number of trunks	4
Jumbo frames support	Yes
Jumbo frames	9600
Packet buffer memory	0.5 MB

Security

Specification	Value
DHCP features	DHCP snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication type	IEEE 802.1x, AAA, TACACS+, RADIUS
BPDU filtering/protection	Yes
Loop protection	Yes
Queue scheduling algorithms	WRR+SP

Multicast features

Specification	Value
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Yes

Protocols

Specification	Value
GARP VLAN Registration Protocol (GVRP)	Yes
IP Source Guard (IPSG)	Yes

Design

Specification	Value
Rack mounting	Yes
Form factor	1U
Product colour	Black
Housing material	Metal
Reset button	Yes
LED indicators	Power, System, Link, Activity, PoE

Performance

Specification	Value
Memory type	DDR-SDRAM
Internal memory	128 MB
Flash memory	16 MB
Firmware upgradeable	Yes
Fanless	Yes

Power

Specification	Value
Power source	AC/PoE
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power saving mode (EEE)	Yes
Surge protection	Yes
Surge protection voltage	8 kV

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	16
Power over Ethernet (PoE) power per port	30 W

Operational conditions

Specification	Value
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 3048 m

Weight & dimensions

Specification	Value
Width	440 mm
Depth	205 mm
Height	44 mm
Weight	2.73 kg

Packaging content

Specification	Value
Cables included	AC, Serial
Manual	Yes
Rack mount kit	Yes

Packaging data

Specification	Value
Package width	500 mm
Package depth	290 mm
Package height	85 mm
Package weight	3.36 kg

Logistics data

Specification	Value
Master (outer) case net weight	16.8 kg
Master (outer) case width	520 mm
Master (outer) case length	445 mm
Master (outer) case height	310 mm
Master (outer) case gross weight	18.4 kg
Products per master (outer) case	5 pc(s)
