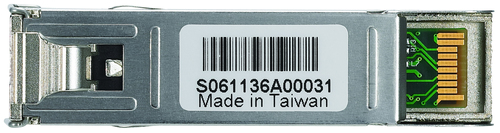

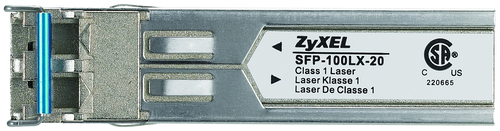

SFP-100LX-20 network media converter 125 Mbit/s 1310 nm
Model SFP-100LX-20Part no. 91-010-141001BEAN 4718937503926
18 specifications
- Speed125 Mbit/s
- ConnectivityWired
- TypeSFP
- Maximum transfer distance20000 m
- Hot-swapYes
- Operating temperature (T-T)0 - 70 °C
Overview
- Speed
- 125 Mbit/s
- Connectivity
- Wired
- Type
- SFP
- Maximum transfer distance
- 20000 m
- Hot-swap
- Yes
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Zyxel
- Category
- Network Media Converter
- Model
- SFP-100LX-20
- Part number
- 91-010-141001B
- EAN / UPC
- 4718937503926
- Also known as
- Zyxel SFP-100LX-20 network media converter 125 Mbit/s 1310 nm
Specifications
18 specifications in 7 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 125 Mbit/s |
| Cabling technology | 100BASE-LX10 |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
Features
| Specification | Value |
|---|---|
| Hot-swap | Yes |
| Plug and Play | Yes |
| Compliance industry standards | IEEE802.3ah |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Certification | - Class 1 Laser - 21 CFR 1040.10 & 1040.11 - CSA - TUV |
Other features
| Specification | Value |
|---|---|
| Connector(s) | LC |
| Dimensions (WxDxH) | 56 x 13.4 x 12.4 mm |
| Form factor | SFP |
| Power requirements | 3.1-3.5 V, 250mA |
| Fiber type | 9/125 µm |
| Power budget | 15 dB |
