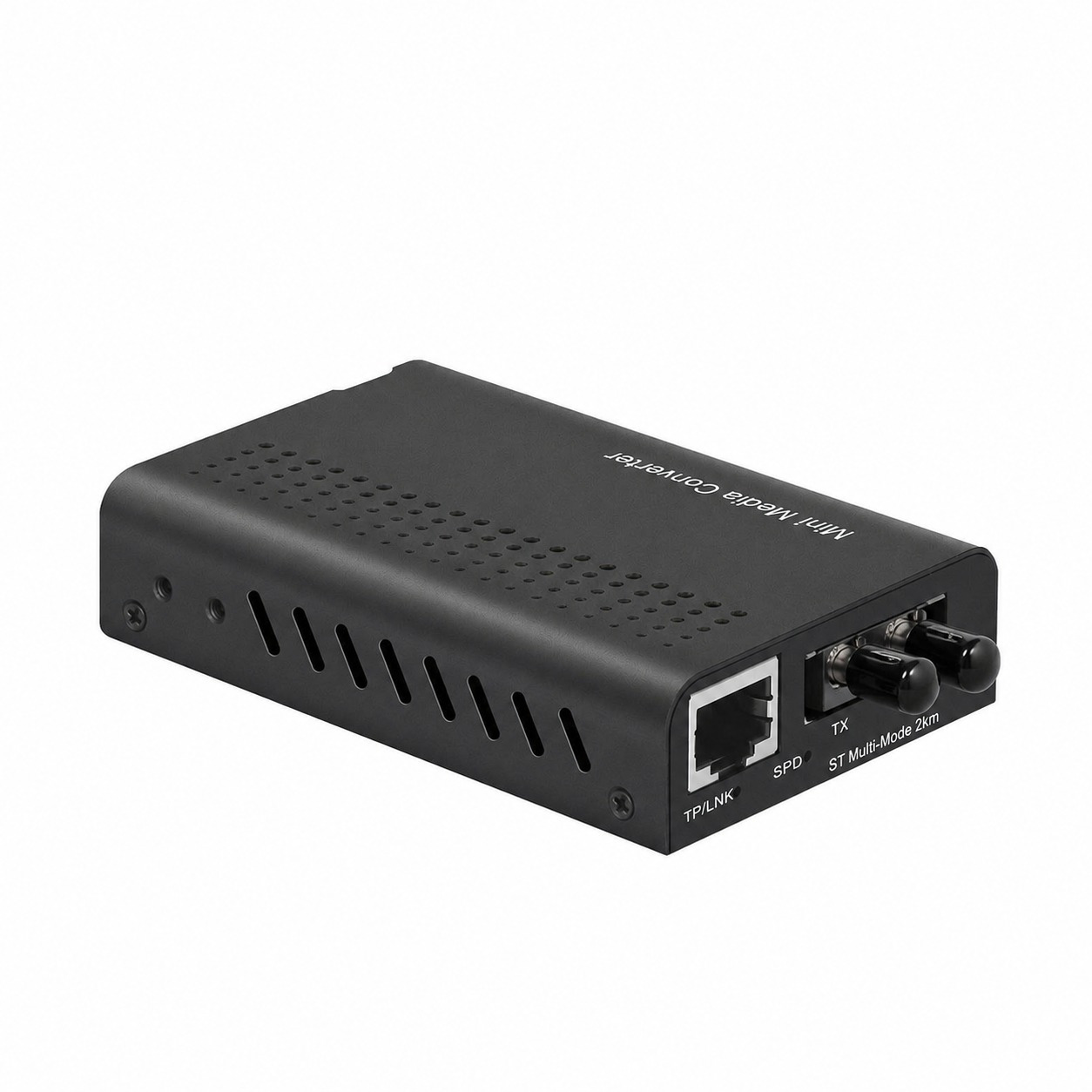

SIL 2201-2T
Model SIL 2201-2TEAN 5060693983320
54 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight120 g
- ColourBlack
- Maximum transfer distance2000 m
- Plug and PlayYes
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 120 g
- Colour
- Black
- Maximum transfer distance
- 2000 m
- Plug and Play
- Yes
- Brand
- SilverNet
- Category
- Network Media Converter
- Model
- SIL 2201-2T
- Part number
- SIL 2201-2T
- EAN / UPC
- 5060693983320
- Also known as
- SilverNet SIL 2201-2T network media converter 100 Mbit/s 1310 nm Multi-mode Black
Specifications
54 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Converter input interface | 10Base-TX, 100Base-TX |
| Converter output interface | 100Base-X |
| Networking standards | IEEE 802.3u, IEEE 802.3x, IEEE 802.3i |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Fiber ethernet cabling technology | 100BASE-X |
| Data transfer rate | 100 Mbit/s |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Store-and-forward | Yes |
| Duplex system | Full, Half |
| Cable types supported | Cat5e, Cat6 |
| Link Fault Pass-through (LFP) | No |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
| Wavelength-division multiplexing (WDM) | No |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Mean time between failures (MTBF) | 100819 h |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| DIN rail mounting | No |
| Housing material | Metal |
| International Protection (IP) code | IP30 |
| LED indicators | Link, Power |
| Power protection features | Overload, Short circuit |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | ST |
| Power over Ethernet (PoE) ports quantity | 0 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 - 12 V |
| Power consumption (max) | 3 W |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90 mm |
| Depth | 60 mm |
| Height | 20 mm |
| Weight | 120 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Certification | FCC, CE, RoHS |
