SIL 73101P
Model SIL 73101PEAN 5060693982743
54 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight350 g
- ColourBlack
- Maximum transfer distance160000 m
- InternalYes
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 350 g
- Colour
- Black
- Maximum transfer distance
- 160000 m
- Internal
- Yes
- Brand
- SilverNet
- Category
- Network Media Converter
- Model
- SIL 73101P
- Part number
- SIL 73101P
- EAN / UPC
- 5060693982743
- Also known as
- SilverNet SIL 73101P network media converter Internal 1000 Mbit/s Black
Specifications
54 specifications in 11 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 1000Base-TX, 1000Base-X |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3az, IEEE 802.3ab |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-TX |
| Fiber ethernet cabling technology | 1000BASE-X |
| Data transfer rate | 1000 Mbit/s |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 160000 m |
| Wavelength-division multiplexing (WDM) | Yes |
Features
| Specification | Value |
|---|---|
| Internal | Yes |
| Plug and Play | Yes |

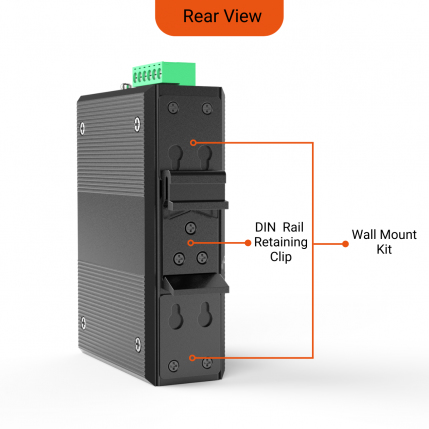

| DIN rail mounting | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP40 |
| LED indicators | Link, Power |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Power over Ethernet (PoE) ports quantity | 1 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |

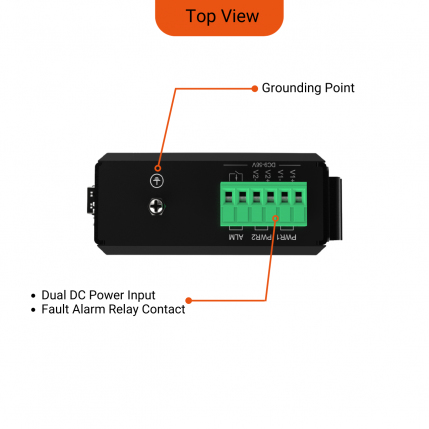

| Terminal block included | Yes |
| Terminal block port | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 48 - 56 V |
| Output voltage | 48 V |
| Power consumption (typical) | 2 W |
| Power consumption (max) | 4 W |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 30 W |
| External power adapter | Yes |
| Power plug type | Type C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 35 mm |
| Depth | 90 mm |
| Height | 120 mm |
| Weight | 350 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 150 mm |
| Package depth | 168 mm |
| Package height | 50 mm |
| Package weight | 52 g |
Certificates
| Specification | Value |
|---|---|
| Safety | EN 60950 1, UL 60950 1, CSA C22.2 No.60950 1, UL 508 |
| Certification | FCC Part15 Class A CE EMC/LVD RoHS EN61000 4 2 (ESD):LEVEL 4 IEC 6100 4 2 (EFT):LEVEL 4 IEC 6100 4 2 (Surge): LEVEL 4 IEC 6100 4 2 (CS) LEVEL 3 IEC 61000 4 2(PFMP) : LEVEL 5 EN61000 4 3 (RS):LEVEL 4 IEC60068 2 27 IEC60068 2 6 IEC60068 2 31 |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United Kingdom |
