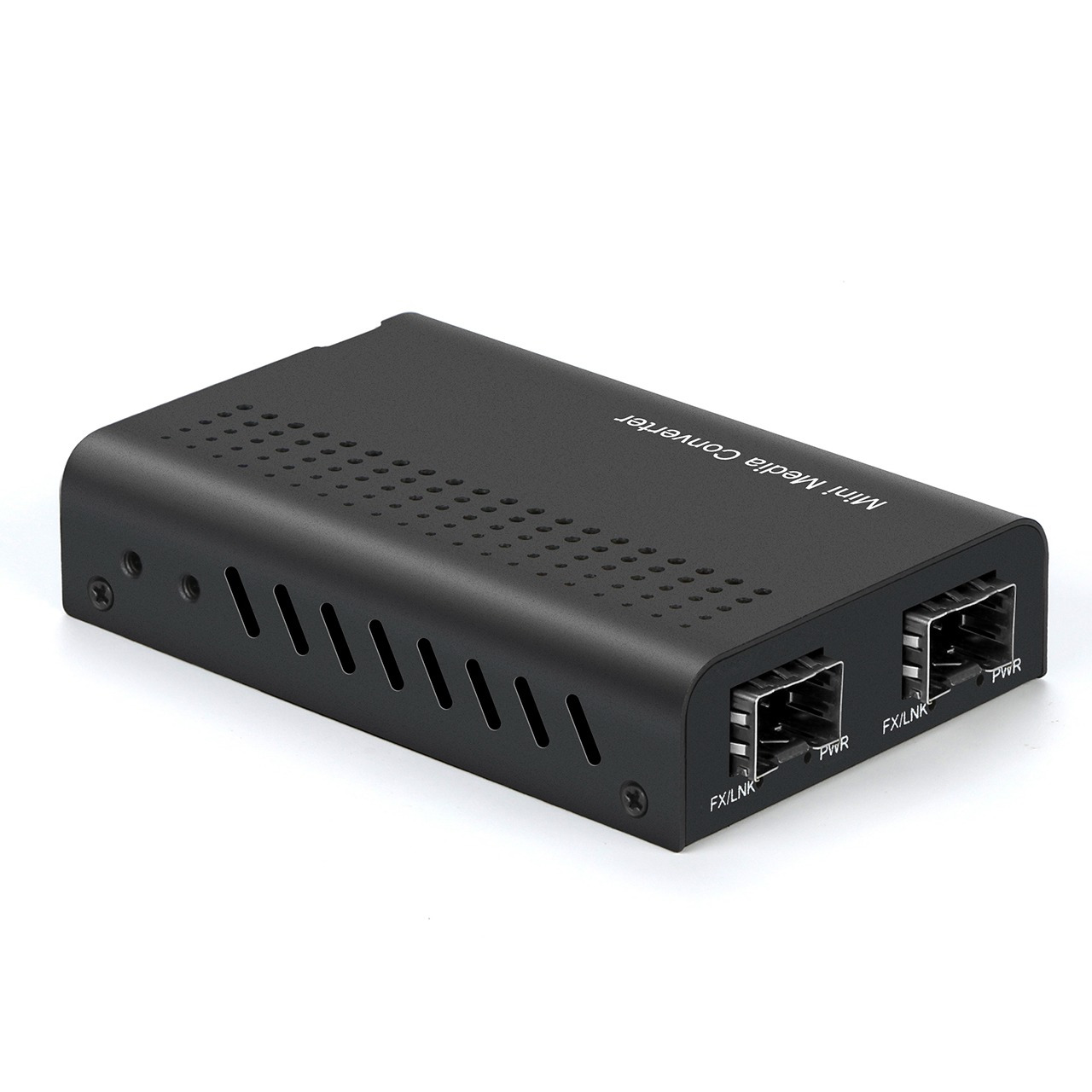

SIL 2212
Model SIL 2212EAN 5060693983368
55 specifications
- Speed10000 Mbit/s
- ConnectivityWired
- Weight120 g
- ColourBlack
- Maximum transfer distance120000 m
- InternalNo
Overview
- Speed
- 10000 Mbit/s
- Connectivity
- Wired
- Weight
- 120 g
- Colour
- Black
- Maximum transfer distance
- 120000 m
- Internal
- No
- Brand
- SilverNet
- Category
- Network Media Converter
- Model
- SIL 2212
- Part number
- SIL 2212
- EAN / UPC
- 5060693983368
- Also known as
- SilverNet SIL 2212 network media converter 10000 Mbit/s Single-mode, Multi-mode Black
Specifications
55 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Converter output interface | 10GBase-X |
| Networking standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3an, IEEE 802.3bz |
| Ethernet interface type | 10 Gigabit Ethernet |
| Data transfer rate | 10000 Mbit/s |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Store-and-forward | Yes |
| Duplex system | Full, Half |
| Link Fault Pass-through (LFP) | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 120000 m |
| Wavelength-division multiplexing (WDM) | No |
| Fiber mode structure | Single-mode, Multi-mode |
| Fiber cable diameters supported (core/cladding) | 9/125,50/125,62.5/125 µm |
| Mean time between failures (MTBF) | 100819 h |
Features
| Specification | Value |
|---|---|
| Internal | No |
| Hot-swap | Yes |
| Plug and Play | Yes |
| DIN rail mounting | No |
| Housing material | Metal |
| International Protection (IP) code | IP30 |
| LED indicators | Power, Link |
| Power protection features | Short circuit, Overload |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Power over Ethernet (PoE) ports quantity | 0 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 - 12 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 3 W |
| Power consumption (max) | 3 W |
| Power over Ethernet (PoE) | No |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90 mm |
| Depth | 60 mm |
| Height | 20 mm |
| Weight | 120 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
| User guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Certification | FCC, CE, RoHS |
