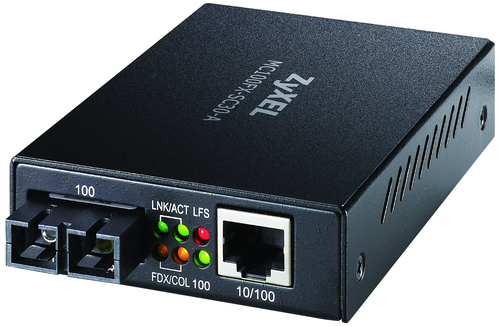

MC100FX-SC30-A network media converter 1310 nm
Model MC100FX-SC30-AEAN 5711045837159
14 specifications
- ConnectivityWired
- Weight160 g
- Maximum transfer distance30000 m
- Power consumption (typical)2.4 W
- Operating temperature (T-T)0 - 45 °C
Overview
- Connectivity
- Wired
- Weight
- 160 g
- Maximum transfer distance
- 30000 m
- Power consumption (typical)
- 2.4 W
- Operating temperature (T-T)
- 0 - 45 °C
- Brand
- Zyxel
- Category
- Network Media Converter
- Model
- MC100FX-SC30-A
- Part number
- MC100FX-SC30-A
- EAN / UPC
- 5711045837159
- Also known as
- Zyxel MC100FX-SC30-A network media converter 1310 nm
Specifications
14 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 30000 m |
| Wavelength | 1310 nm |
Features
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE802.3, IEEE802.3u, IEEE802.3x |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2.4 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 160 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Safety | CE LVD |
| Certification | FCC Part15 (Class A), CE EMC (Class A) |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 73.8 x 23.4 x 109.2 mm |
| Power requirements | 12V DC/ 0.8A |

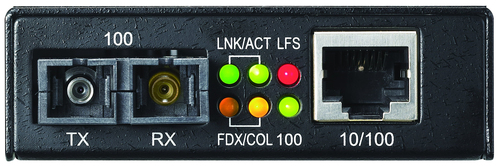

| I/O ports | 1 x 10/100BASE-T 1 x 100BASE-FX (SC) |
