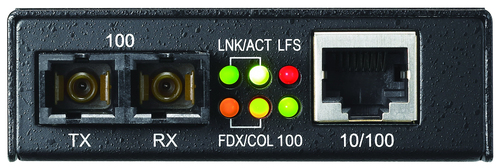

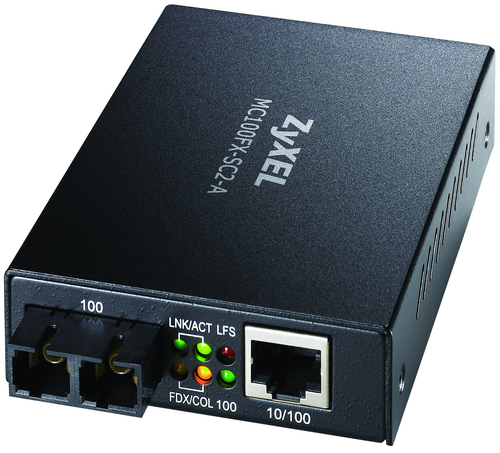

MC100FX-SC2-A network media converter 1310 nm
Model MC100FX-SC2-APart no. 91-010-142001BEAN 4718937504305
15 specifications
- ConnectivityWired
- Weight160 g
- Maximum transfer distance2000 m
- Power consumption (typical)2.4 W
- Operating temperature (T-T)0 - 45 °C
Overview
- Connectivity
- Wired
- Weight
- 160 g
- Maximum transfer distance
- 2000 m
- Power consumption (typical)
- 2.4 W
- Operating temperature (T-T)
- 0 - 45 °C
- Brand
- Zyxel
- Category
- Network Media Converter
- Model
- MC100FX-SC2-A
- Part numbers
- 91-010-142001B, 91-010-142003B
- EAN / UPC
- 4718937504305, 4718937562350
- Also known as
- Zyxel MC100FX-SC2-A network media converter 1310 nm
Specifications
15 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2.4 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 160 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Safety | CE LVD |
| Certification | FCC Part15 (Class A), CE EMC (Class A) |
Other features
| Specification | Value |
|---|---|
| Data link protocols | IEEE802.3/IEEE802.3u/IEEE802.3x |
| Dimensions (WxDxH) | 73.8 x 109.2 x 23.4 mm |
| Interface | 10BASE-T/100BASE-TX/FX |
| Power requirements | 12V DC/ 0.8A |
| I/O ports | - 1x 10/100BASE-T port; - 1x 100BASE-FX Fiber Port (SC) with multi-mode fiber transceiver module built-in |
