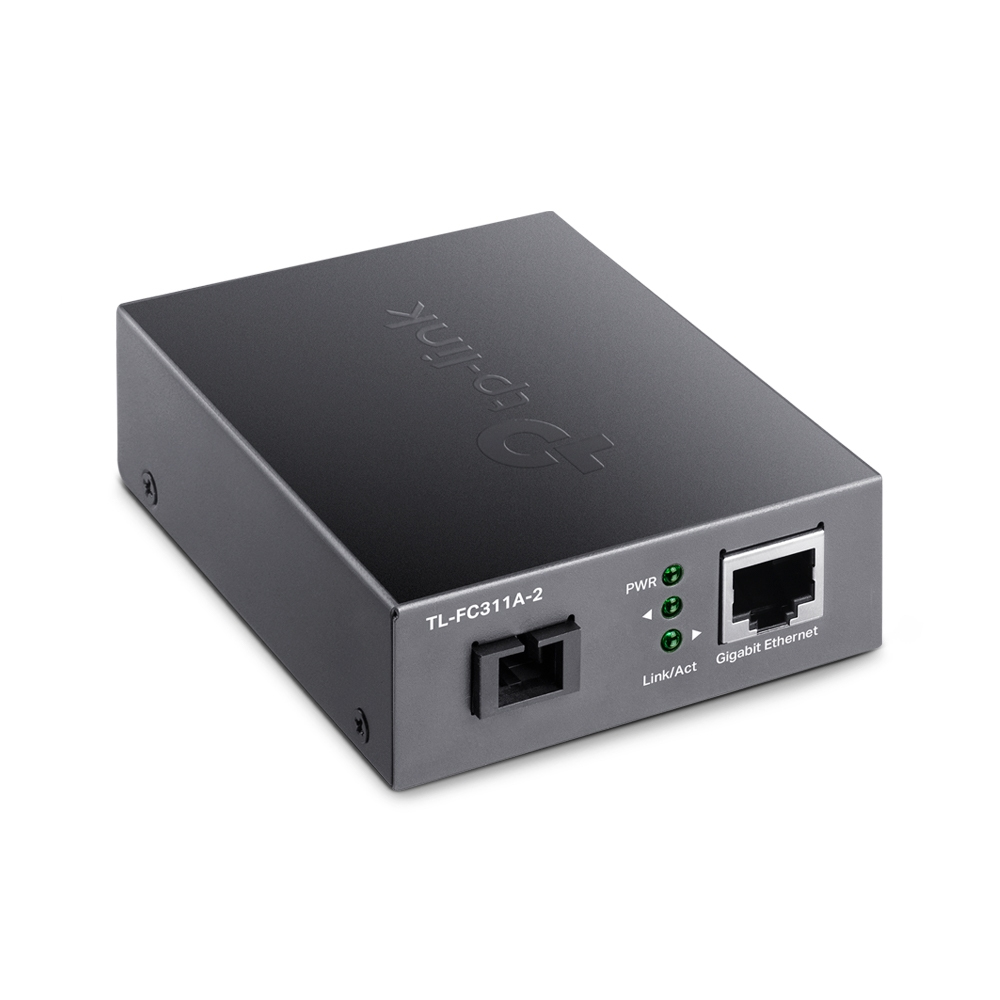

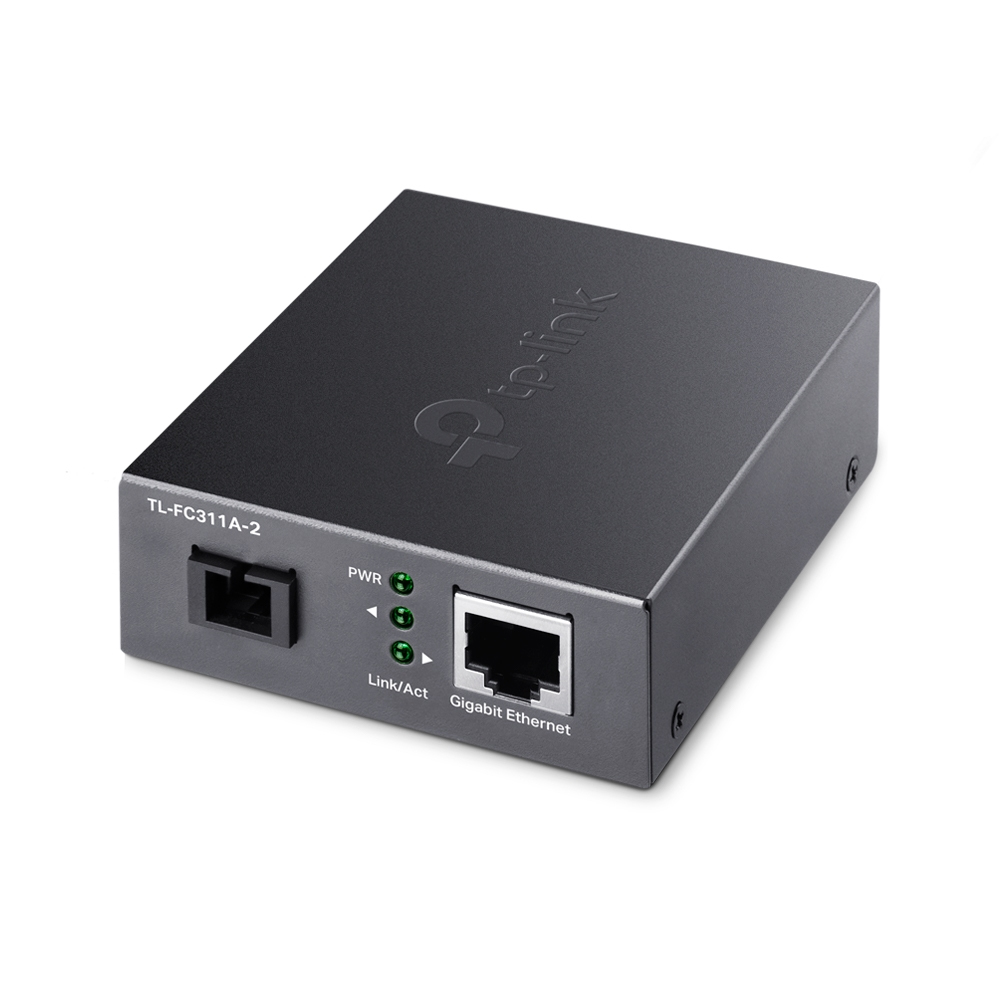

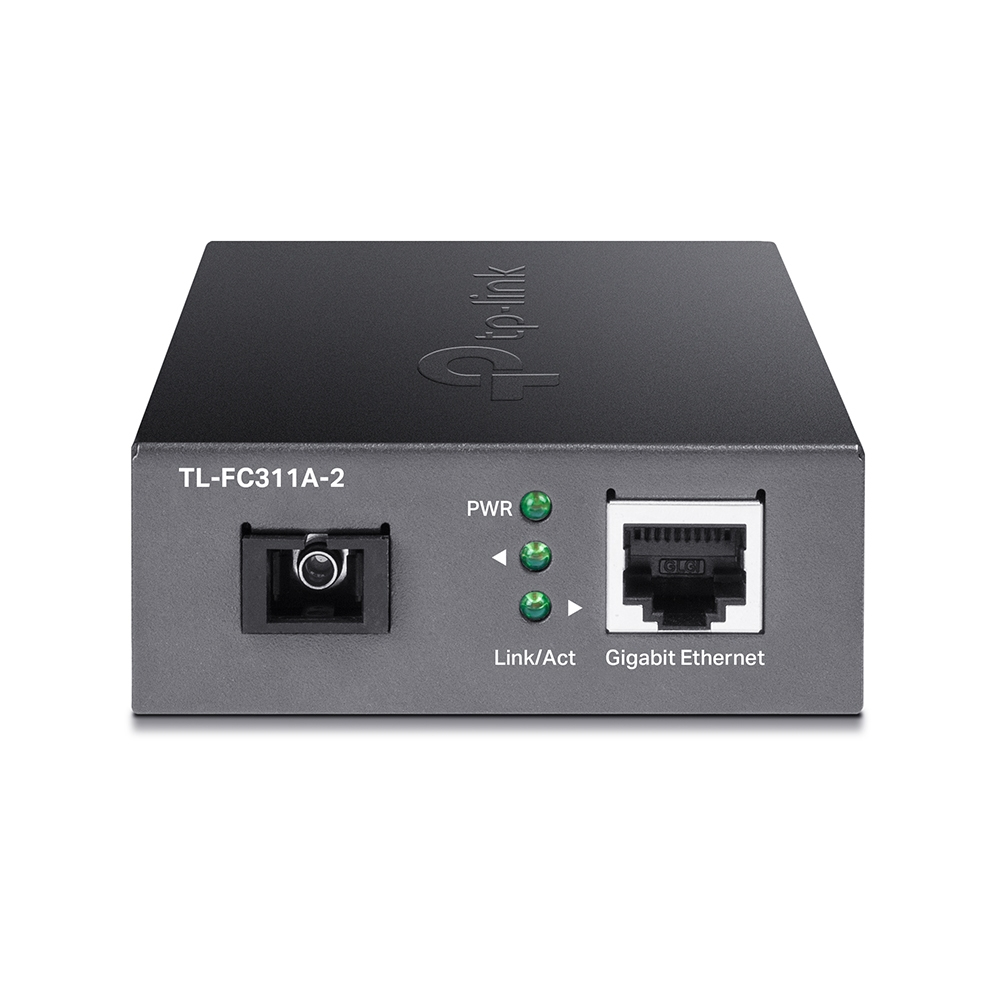

Gigabit WDM Media Converter
Model TL-FC311A-2EAN 845973030919
37 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- ColourBlack
- Maximum transfer distance2000 m
- InternalNo
- Output voltage5 V
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Colour
- Black
- Maximum transfer distance
- 2000 m
- Internal
- No
- Output voltage
- 5 V
- Brand
- TP-Link
- Category
- Network Media Converter
- Model
- TL-FC311A-2
- Part number
- TL-FC311A-2
- EAN / UPC
- 845973030919, 6935364010560, 6935364072896
- Also known as
- TP-Link Gigabit WDM Media Converter
Specifications
37 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Data transfer rate | 1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full, Half |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 2000 m |

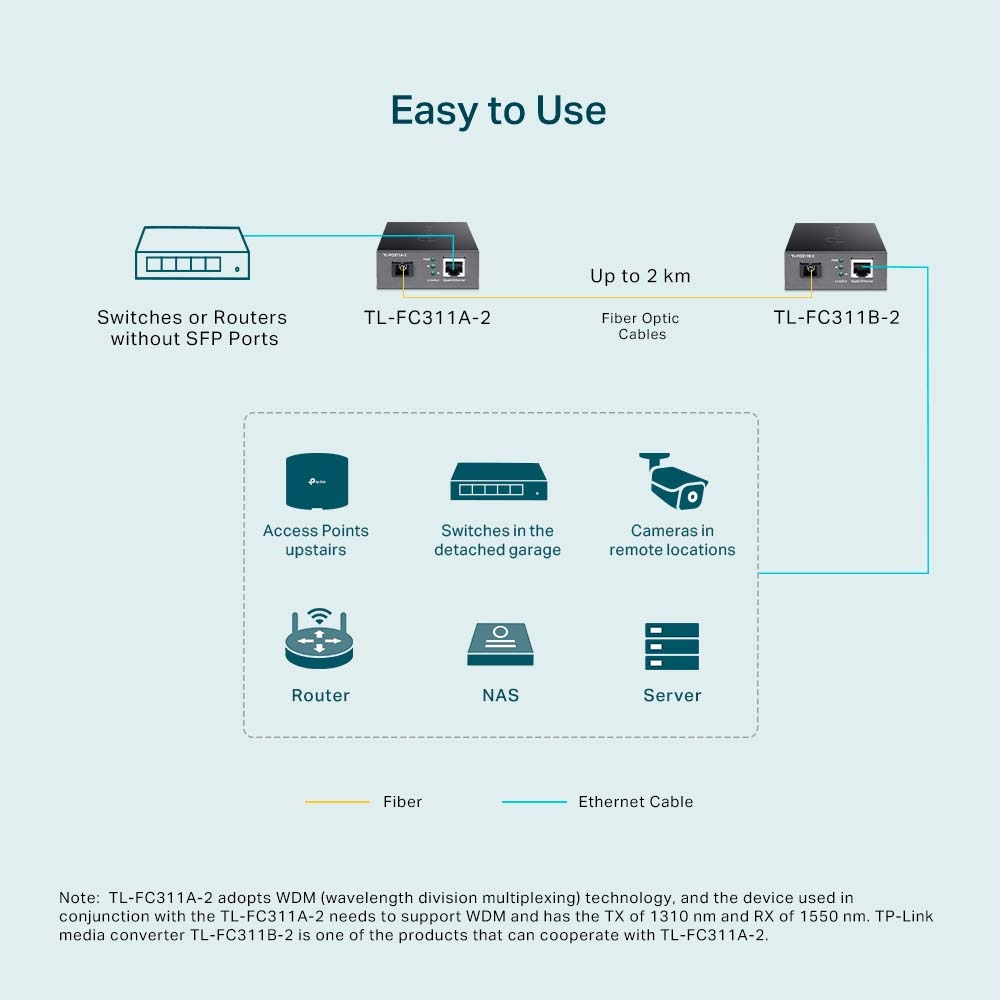

| Wavelength-division multiplexing (WDM) | Yes |

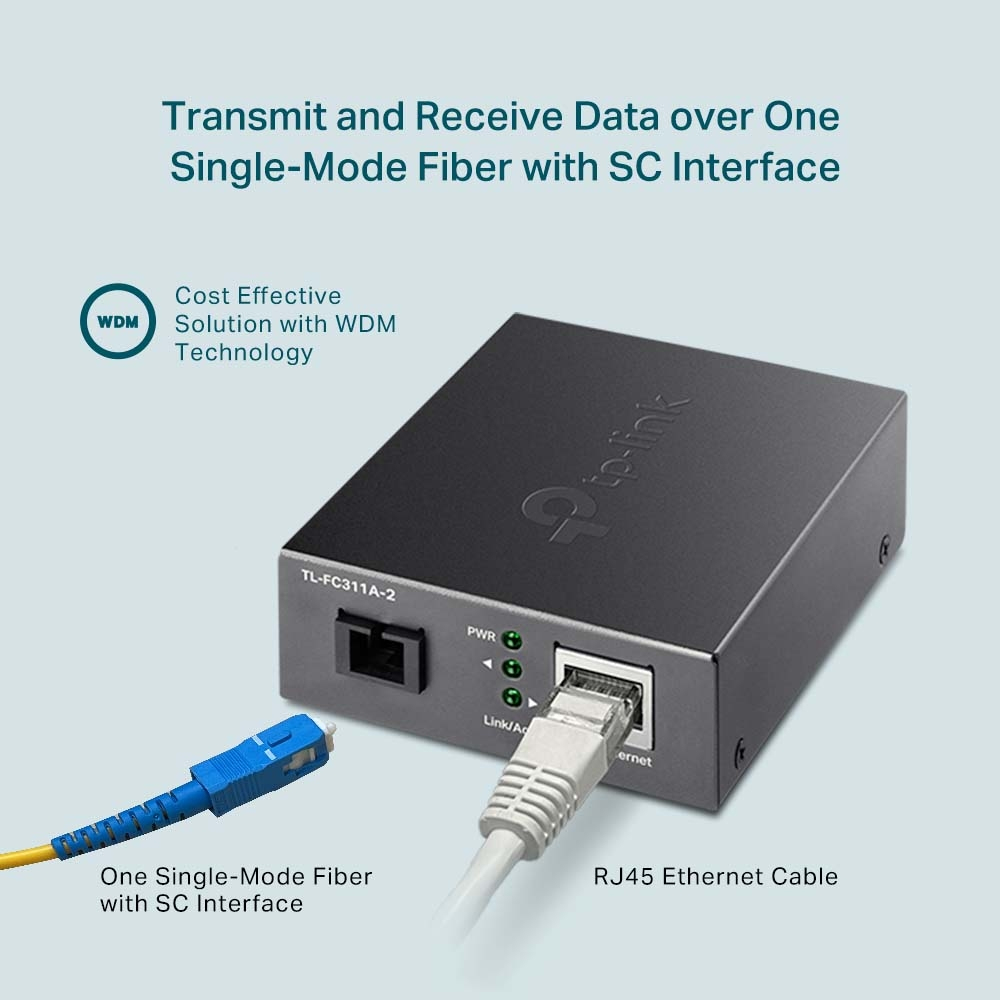

| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Activity, Link, Power |
| Product colour | Black |

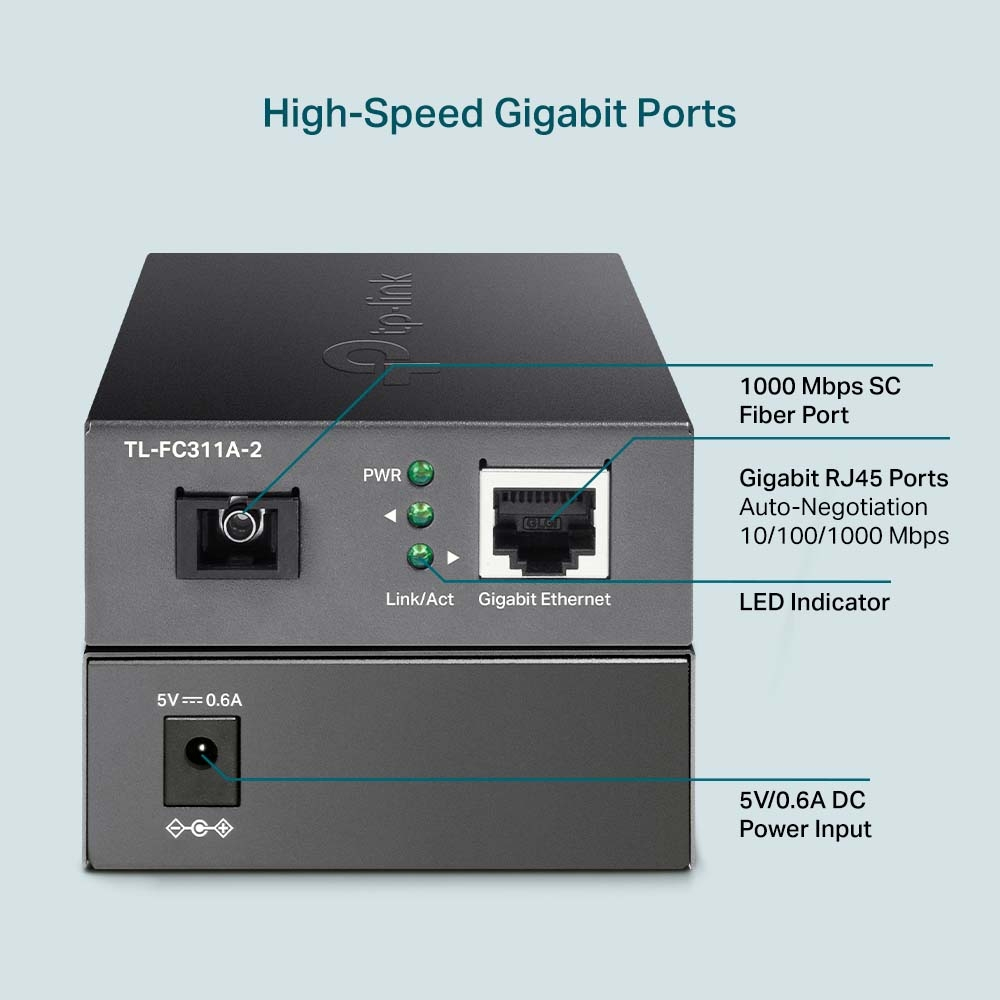

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |

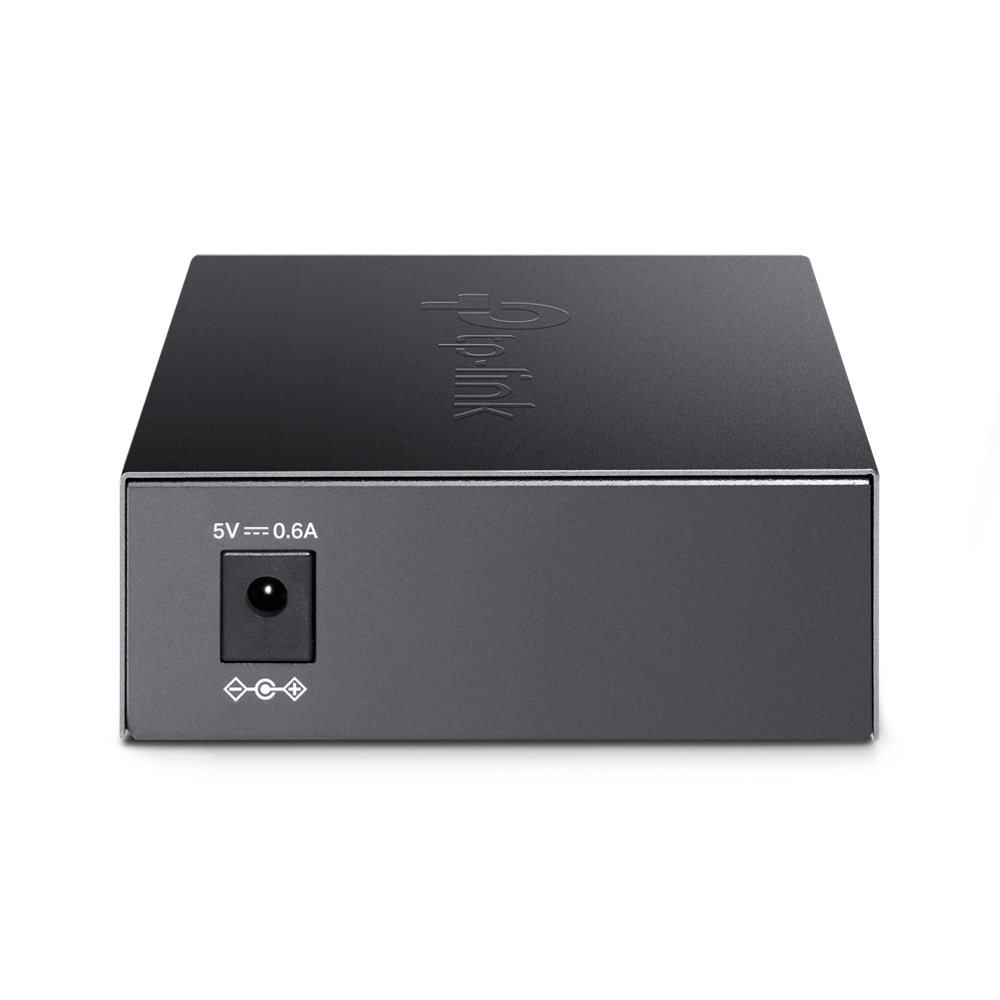

| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Output voltage | 5 V |
| Output current | 0.6 A |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94.5 mm |
| Depth | 73 mm |
| Height | 27 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 165 mm |
| Package depth | 204 mm |
| Package height | 65 mm |
| Package weight | 350 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
