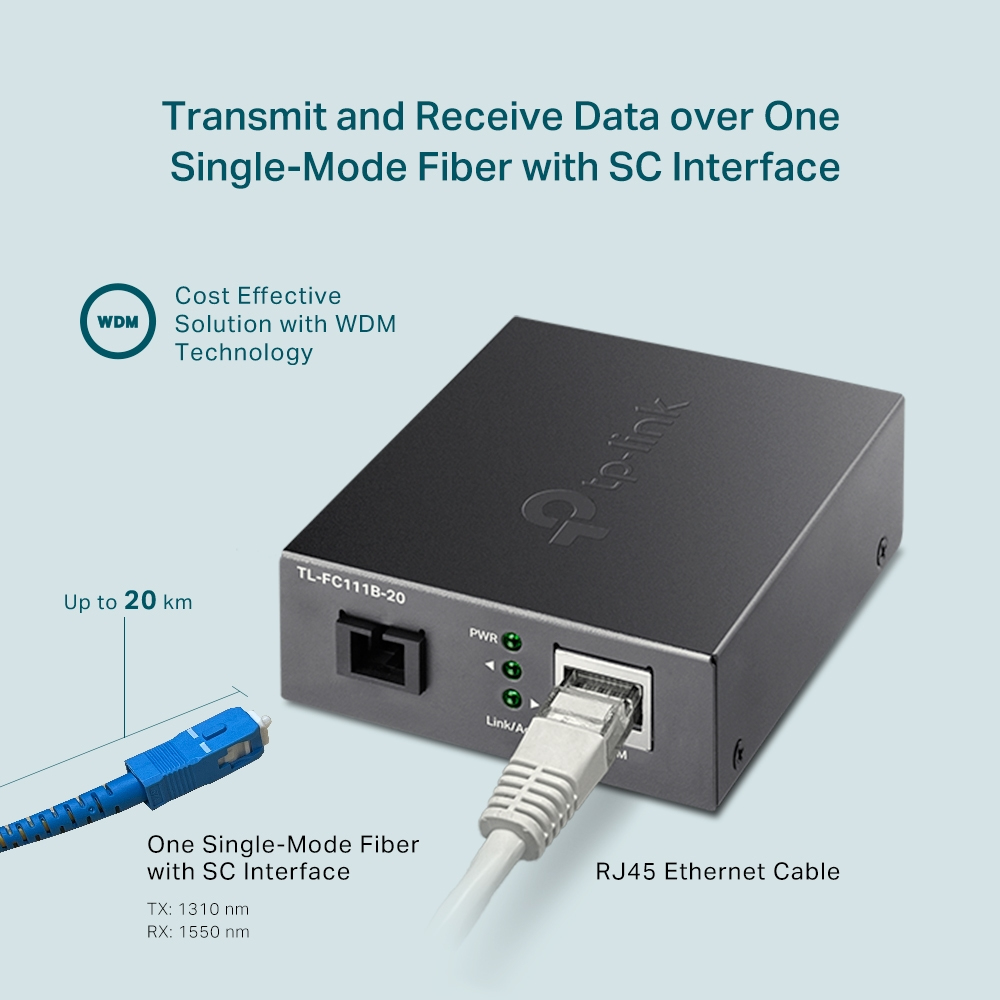

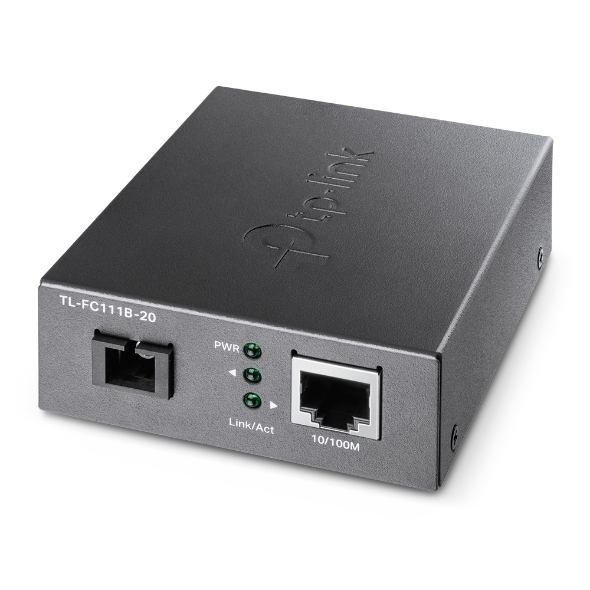

Omada 10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional Fiber Converter
Model TL-FC111B-20EAN 845973010096
37 specifications
- Speed100 Mbit/s
- ConnectivityWired
- ColourBlack
- Maximum transfer distance20000 m
- InternalNo
- Output voltage5 V
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Colour
- Black
- Maximum transfer distance
- 20000 m
- Internal
- No
- Output voltage
- 5 V
- Brand
- TP-Link
- Category
- Network Media Converter
- Model
- TL-FC111B-20
- Part number
- TL-FC111B-20
- EAN / UPC
- 845973010096, 6935364010973, 6935364010997
- Also known as
- TP-Link Omada 10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional Fiber Converter
Specifications
37 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3i, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T |
| Fiber ethernet cabling technology | 100BASE-FX |
| Data transfer rate | 100 Mbit/s |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full, Half |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 20000 m |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Activity, Link, Power |
| Product colour | Black |

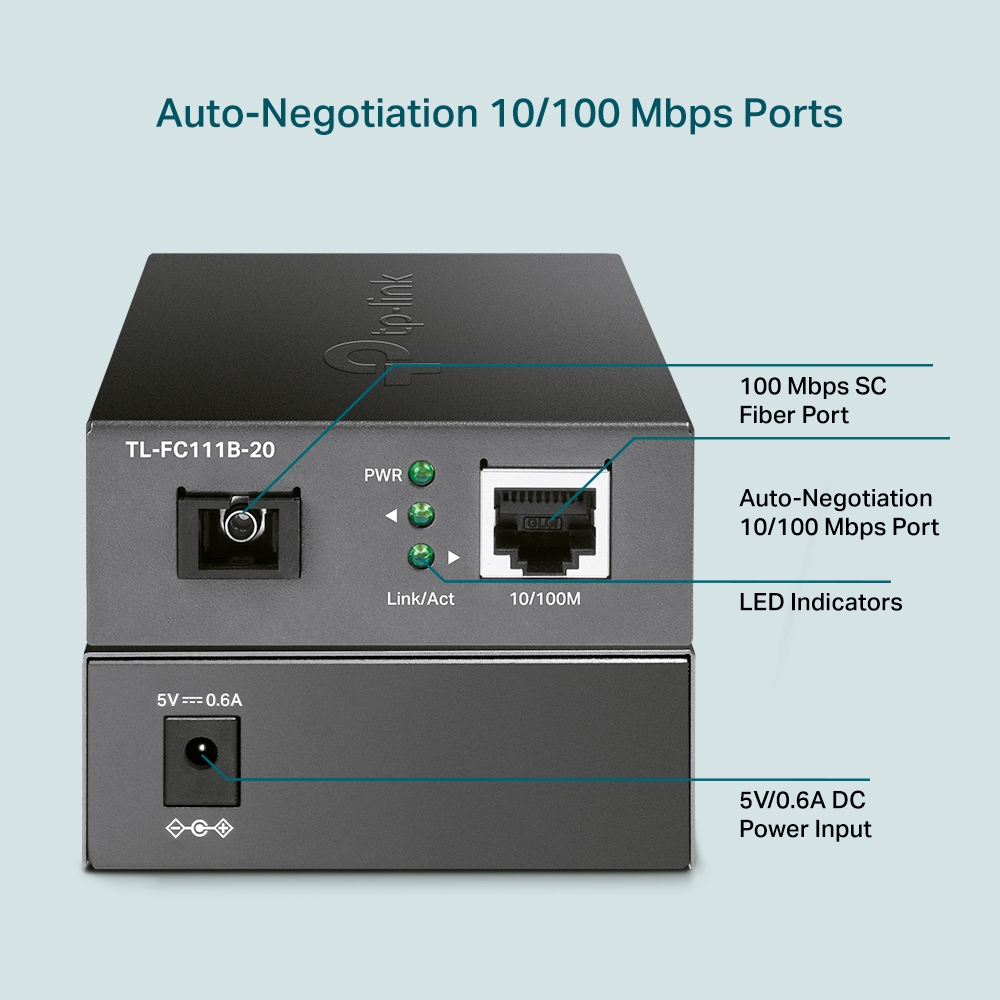

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
Power
| Specification | Value |
|---|---|
| Output voltage | 5 V |
| Output current | 0.6 A |
| External power adapter | Yes |

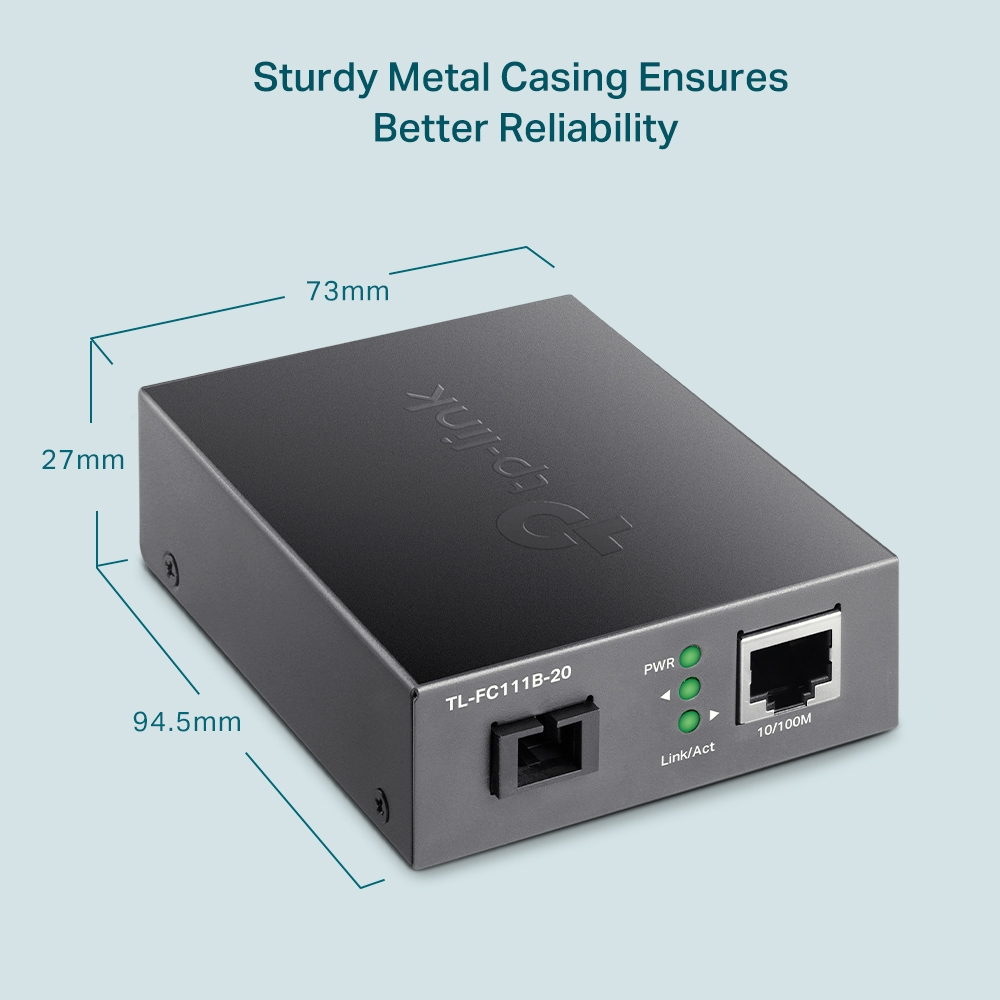

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94.5 mm |
| Depth | 73 mm |
| Height | 27 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 165 mm |
| Package depth | 204 mm |
| Package height | 65 mm |
| Package weight | 360 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | FCC, CE |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
