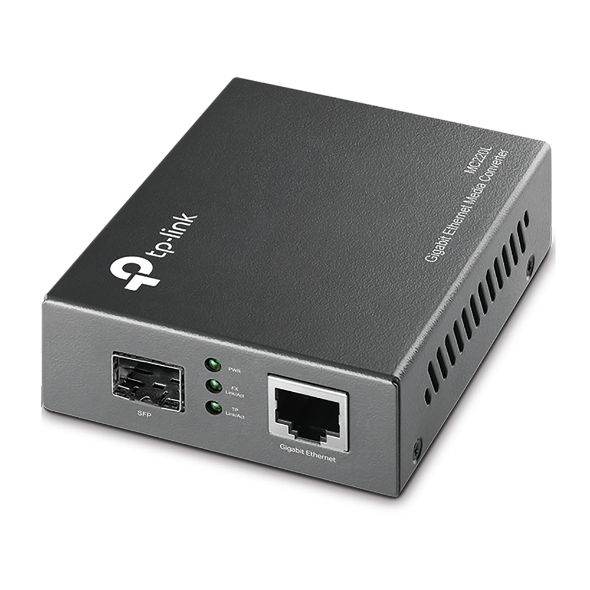

MC220L(UN) network media converter 1000 Mbit/s Multi-mode, Single-mode Black
Model MC220L(UN)
30 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- ColourBlack
- Maximum transfer distance10000 m
- InternalNo
- Power consumption (max)1.7 W
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Colour
- Black
- Maximum transfer distance
- 10000 m
- Internal
- No
- Power consumption (max)
- 1.7 W
- Brand
- TP-Link
- Category
- Network Media Converter
- Model
- MC220L(UN)
- Part number
- MC220L(UN)
- Also known as
- TP-Link MC220L(UN) network media converter 1000 Mbit/s Multi-mode, Single-mode Black
Specifications
30 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
| Cable types supported | Cat5, Cat5e, Cat6 |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 10000 m |
| Fiber mode structure | Multi-mode, Single-mode |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Yes |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 1.7 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94 mm |
| Depth | 73 mm |
| Height | 27 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 65 mm |
| Package depth | 204 mm |
| Package height | 65 mm |
| Package weight | 440 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
