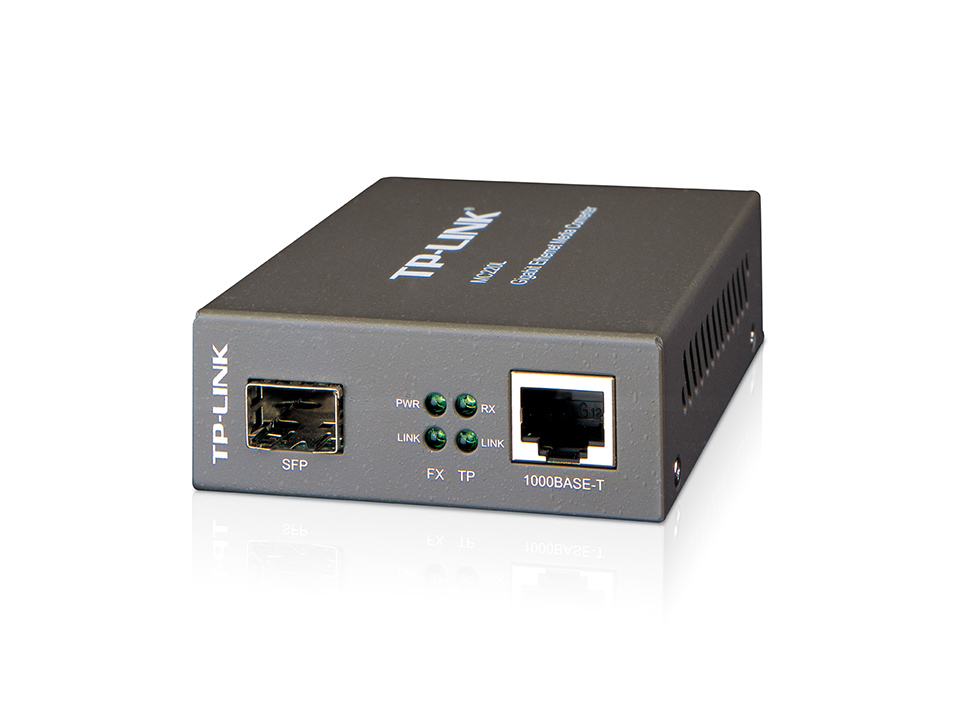

Gigabit SFP Media Converter
Model MC220LEAN 5054629099766
34 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- ColourBlack
- Maximum transfer distance10000 m
- InternalNo
- Power consumption (max)1.7 W
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Colour
- Black
- Maximum transfer distance
- 10000 m
- Internal
- No
- Power consumption (max)
- 1.7 W
- Brand
- TP-Link
- Category
- Network Media Converter
- Model
- MC220L
- Part numbers
- MC220L, MC220L V1
- EAN / UPC
- 5054629099766, 163120447688, 191120078335, 741459772055 +29 more
- Also known as
- TP-Link Gigabit SFP Media Converter
Specifications
34 specifications in 11 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.1ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Cabling technology | UTP 5e, 5 |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 10000 m |
| Fiber mode structure | Multi-mode, Single-mode |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Link |
| Product colour | Black |
| Compliance industry standards | IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 1.7 W |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94.5 mm |
| Depth | 73 mm |
| Height | 27 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 204 mm |
| Package depth | 165 mm |
| Package height | 65 mm |
| Package weight | 420 g |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 94.5 x 73 x 27 mm |
| Full duplex | Yes |
| I/O ports | 1x 1000M SC 1x 1000M RJ45 |
