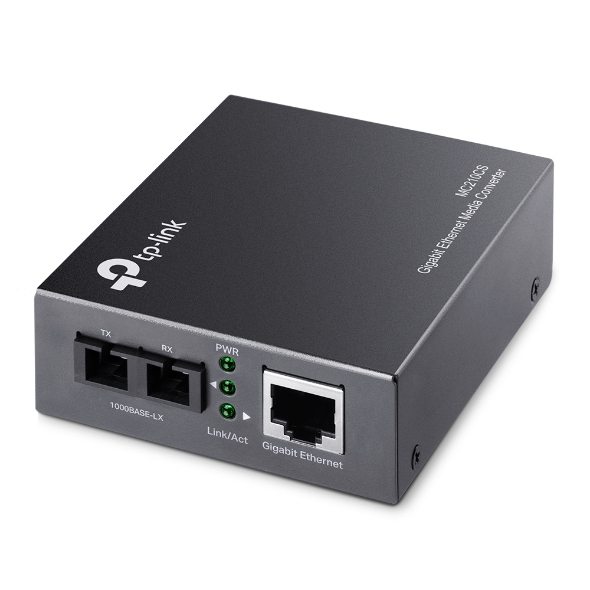

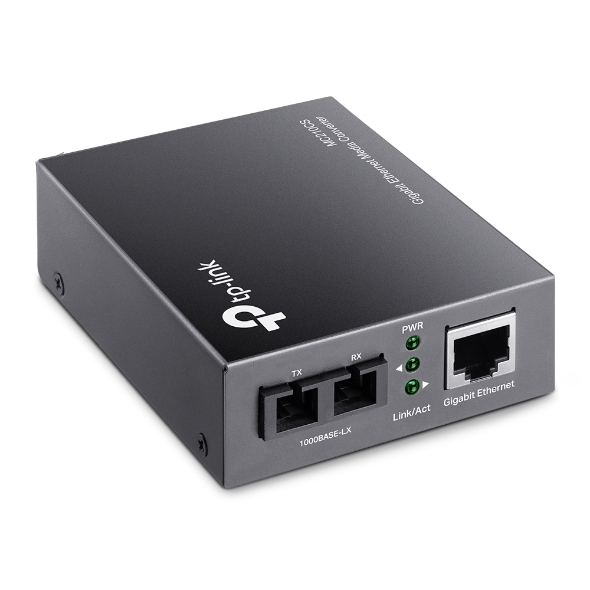

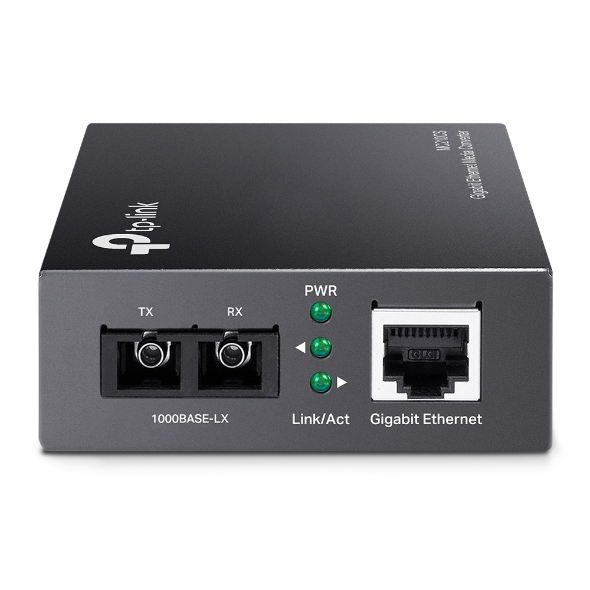

Gigabit Single-Mode Media Converter
Model MC210CSEAN 5054533135321
31 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- ColourBlack
- Maximum transfer distance15000 m
- InternalNo
- Power consumption (max)5.5 W
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Colour
- Black
- Maximum transfer distance
- 15000 m
- Internal
- No
- Power consumption (max)
- 5.5 W
- Brand
- TP-Link
- Category
- Network Media Converter
- Model
- MC210CS
- Part numbers
- MC210CS, MC210CS V1
- EAN / UPC
- 5054533135321, 151904902058, 172304250358, 191120078403 +24 more
- Also known as
- TP-Link Gigabit Single-Mode Media Converter
Specifications
31 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.1ab, IEEE 802.3x, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full |
| Cable types supported | Cat6 |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 15000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Single-mode |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Activity, Power |
| Product colour | Black |

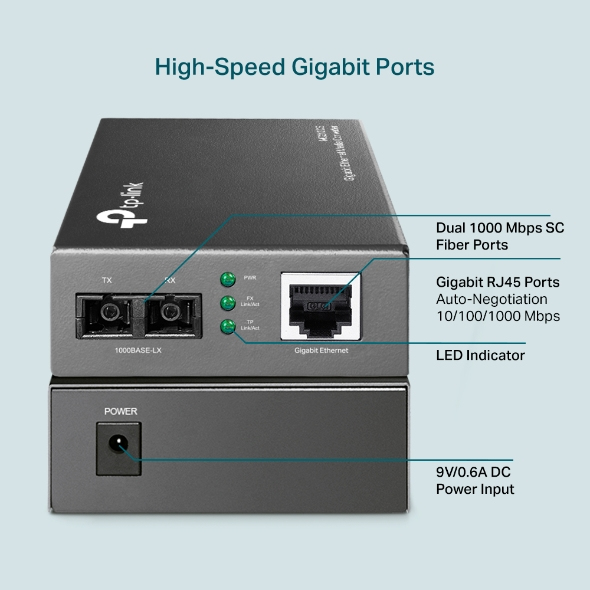

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |

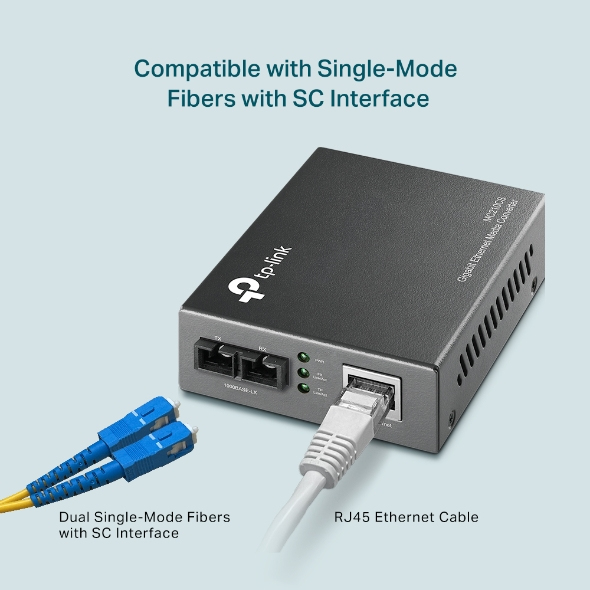

| Fiber optic connector | SC |

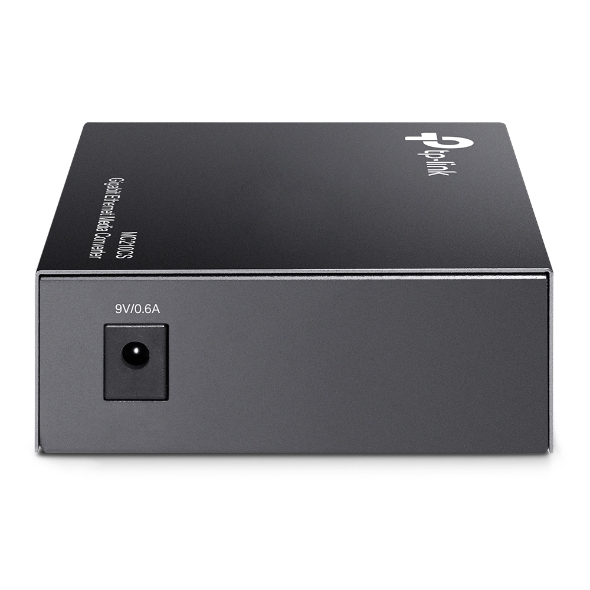

Power
| Specification | Value |
|---|---|
| Power consumption (max) | 5.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94.5 mm |
| Depth | 73 mm |
| Height | 27 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 165 mm |
| Package depth | 204 mm |
| Package height | 65 mm |
| Package weight | 430 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | FCC, CE |
