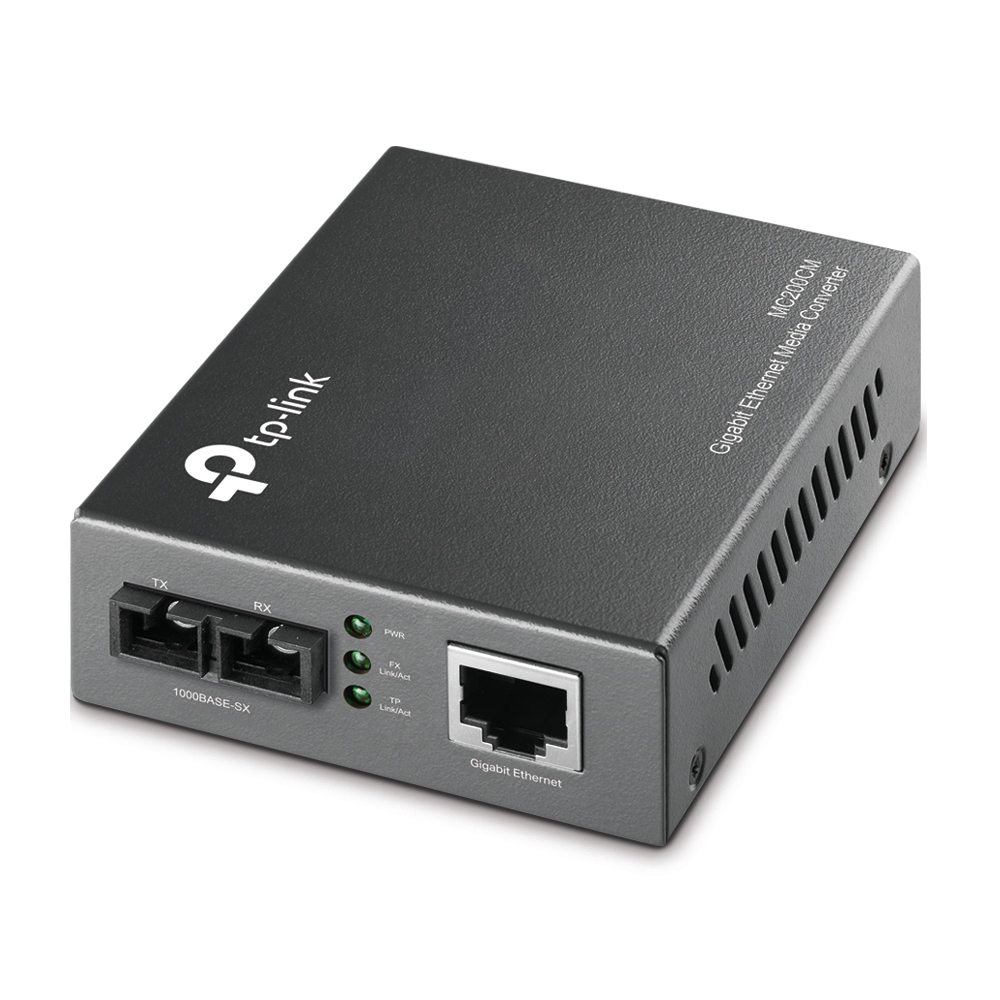

MC200CM V3
Model MC200CM V3EAN 6935364030438
31 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- ColourBlack
- Maximum transfer distance550 m
- InternalYes
- Power consumption (typical)5.5 W
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Colour
- Black
- Maximum transfer distance
- 550 m
- Internal
- Yes
- Power consumption (typical)
- 5.5 W
- Brand
- TP-Link
- Category
- Network Media Converter
- Model
- MC200CM V3
- Part number
- MC200CM V3
- EAN / UPC
- 6935364030438
- Also known as
- TP-Link Gigabit Multi-Mode Media Converter
Specifications
31 specifications in 9 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Fiber ethernet cabling technology | 1000BASE-FX, 1000BASE‑SX |
| Auto MDI/MDI-X | Yes |
| Cable types supported | Cat6 |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |
Features
| Specification | Value |
|---|---|
| Internal | Yes |
| LED indicators | Activity, Link |
| Product colour | Black |

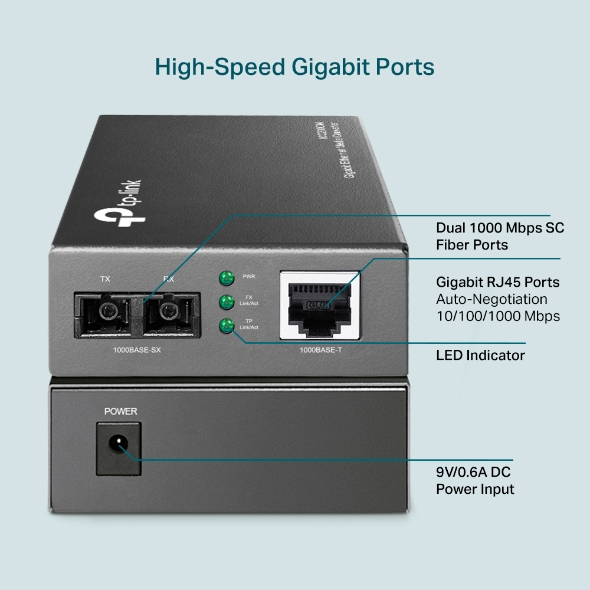

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |

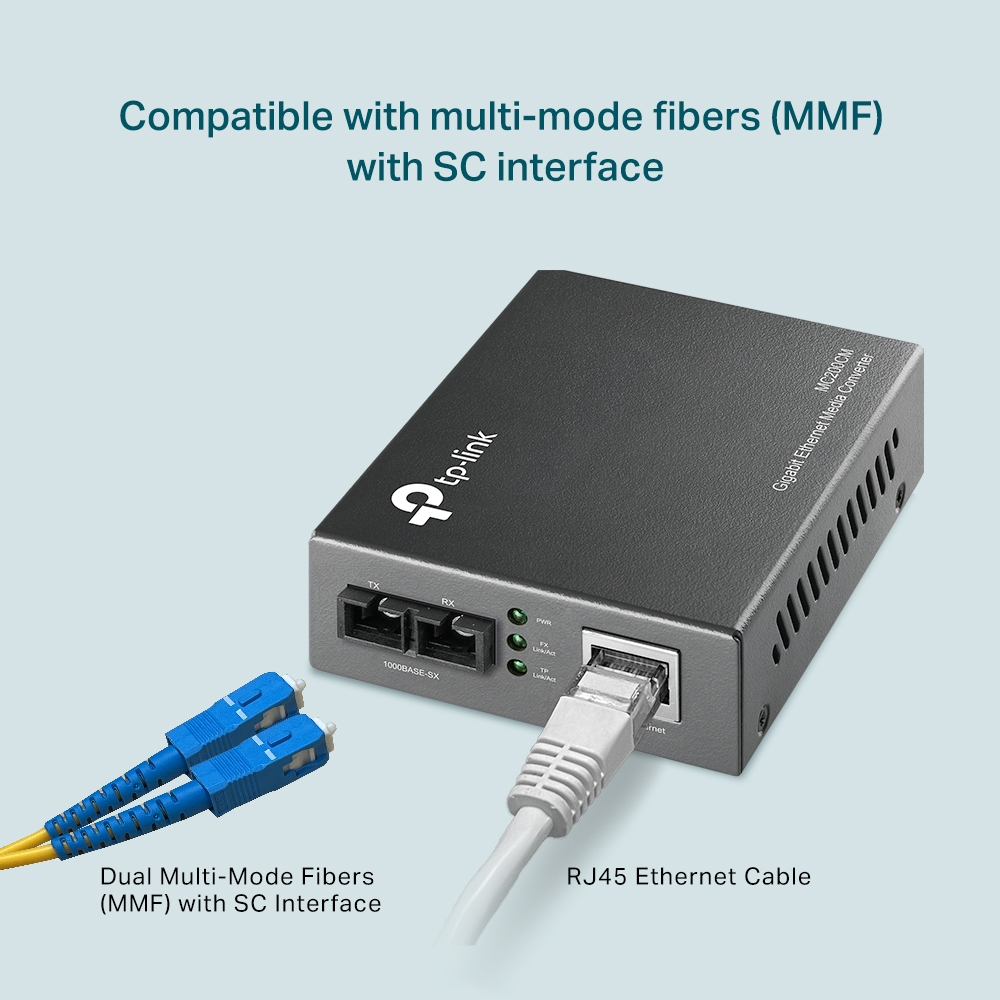

| Fiber optic connector | SC |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 5.5 W |

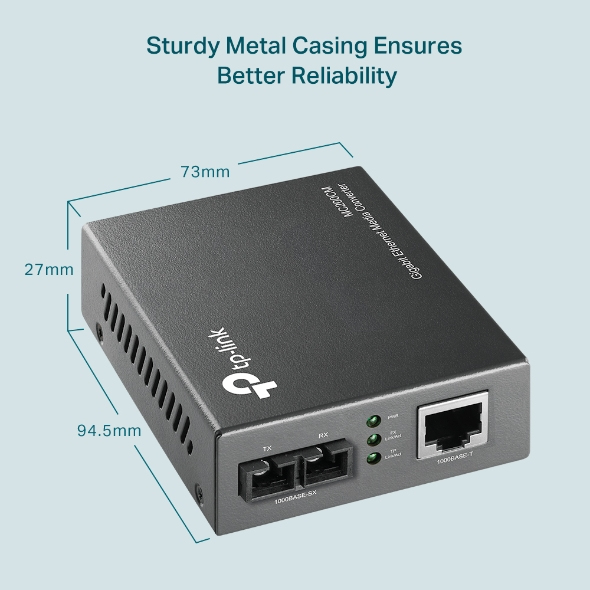

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94.5 mm |
| Depth | 73 mm |
| Height | 27 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 165 mm |
| Package depth | 204 mm |
| Package height | 65 mm |
| Package weight | 440 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | FCC, CE |
