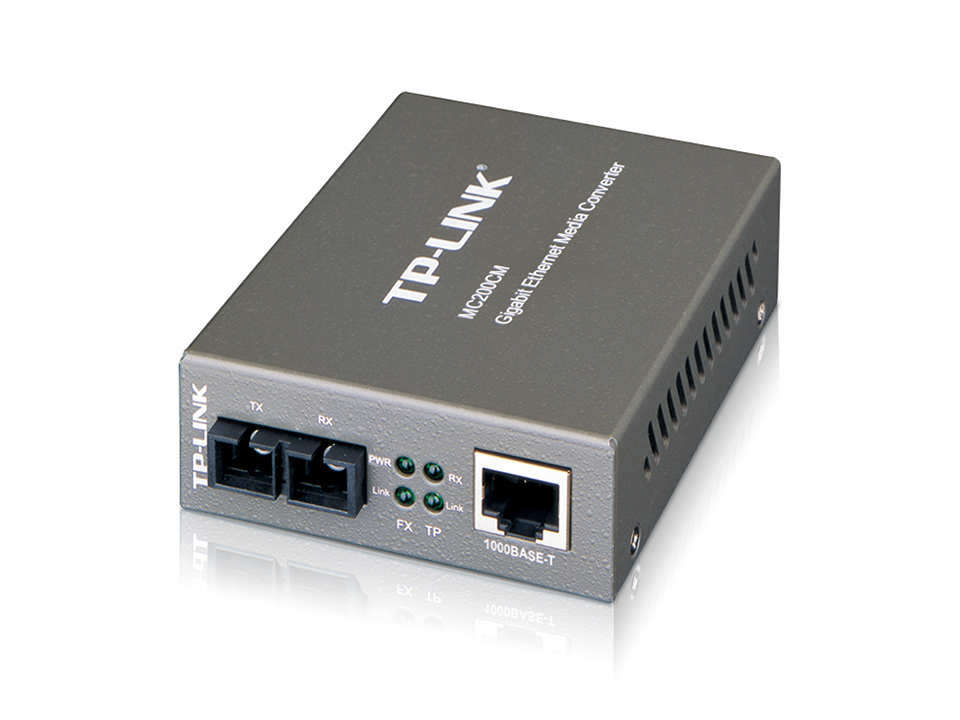

Gigabit Multi-Mode Media Converter
Model MC200CMEAN 7426801516558
31 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- ColourBlack
- Maximum transfer distance550 m
- InternalNo
- Power consumption (max)5.5 W
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Colour
- Black
- Maximum transfer distance
- 550 m
- Internal
- No
- Power consumption (max)
- 5.5 W
- Brand
- TP-Link
- Category
- Network Media Converter
- Model
- MC200CM
- Part numbers
- MC200CM, MC200CM V1, TL-MC200CM
- EAN / UPC
- 7426801516558, 041114199105, 631058211829, 731215288180 +14 more
- Also known as
- TP-Link Gigabit Multi-Mode Media Converter
Specifications
31 specifications in 10 groups
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
Features
| Specification | Value |
|---|---|
| Internal | No |
| LED indicators | Link |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 5.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94.5 mm |
| Depth | 73 mm |
| Height | 27 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 204 mm |
| Package depth | 165 mm |
| Package height | 65 mm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | FCC, CE |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
